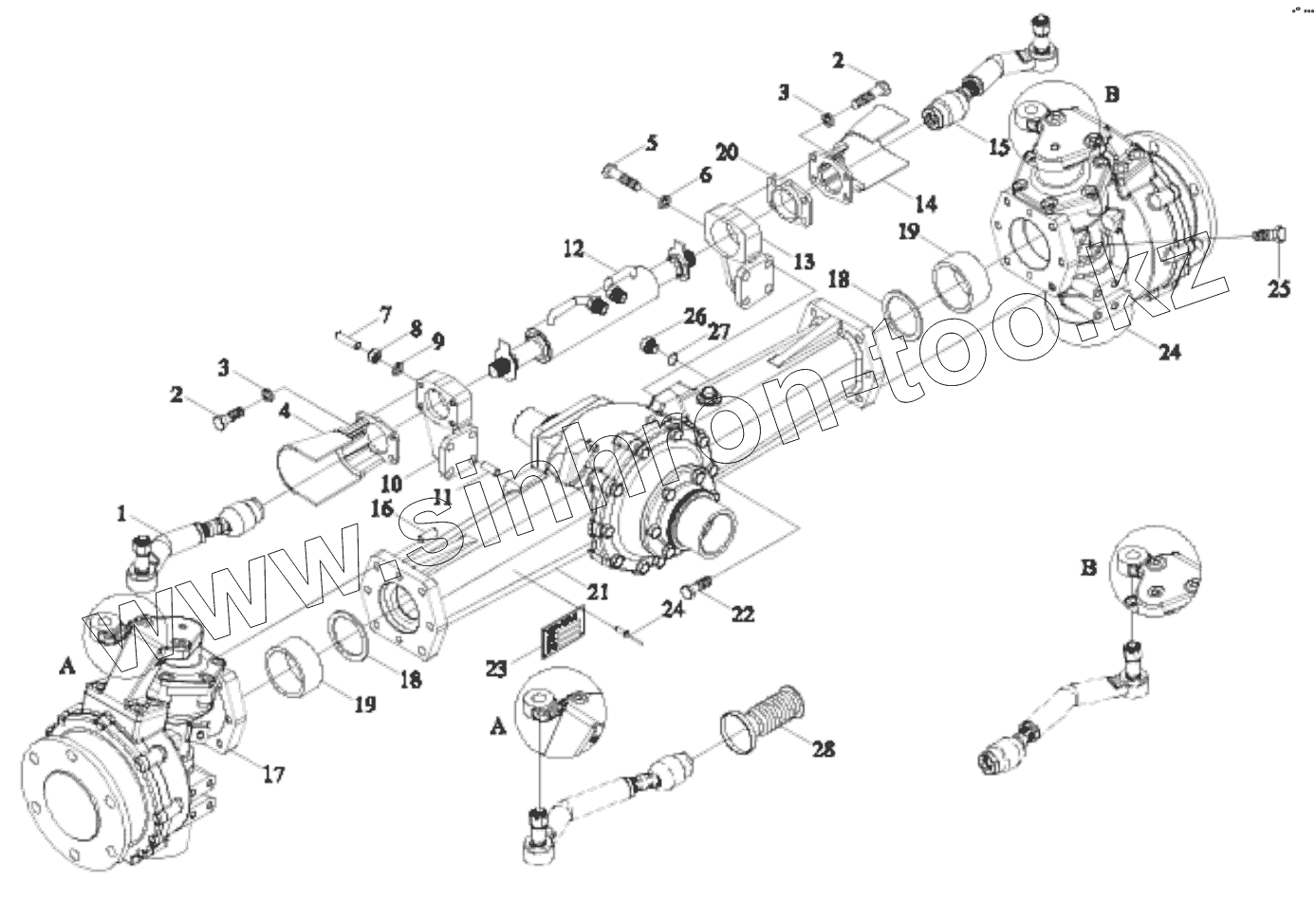

Каталог запасных частей к технике: Lovol TE-404. TL02311010000 FRONT DRIVING AXLE ASSEMBLY-1
TL02311010000
1
2
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
19
20
21
22
23
24
24
25
26
27
28
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| TL02311010000 | TL02311010000 | FRONT AXLE | |
| 1 | TL02311010007 | LEFT STEERING HORIZONTAL PULL ROD ASSEMBLY | |
| 2 | GBT70.1-M8X20-8.8-A2L | Hexagon socket head cap screw | |
| 3 | GBT93-8-A3L | Standard Spring Washer | |
| 4 | TL02311020008 | OIL CYLINDER BONNET WELDMENT | |
| 5 | GBT5783-M10X25-8.8-A3L | Hexagon head bolt | |
| 6 | GBT93-10-A3L | Standard Spring Washer | |
| 7 | GBT71-M6X20-14H-A2L | SCREW | |
| 8 | GBT6174-M6-110HV30-A2L | HEXAGON THIN NUT | |
| 9 | GBT93-6-A3L | Standard Spring Washer | |
| 10 | TL02311010013 | OIL CYLINDER FIXING SEAT 2 | |
| 11 | GBT119.1-6h8X14-A3L | COLUMN PIN | |
| 12 | TL02311010006 | HYDRAULIC CYLINDER ASSEMBLY | |
| 13 | TL02311010012 | OIL CYLINDER FIXING SEAT | |
| 14 | TL02311020009 | OIL CYLINDER BONNET WELDMENT | |
| 15 | TL02311010008 | RIGHT STEERING CROSS PULL ROD ASSEMBLY | |
| 16 | GBT119.1-10h8X20-A3L | COLUMN PIN | |
| 17 | TL02311010004 | LEFT TRANSMISSION ASSEMBLY | |
| 18 | TL02311010010 | ADJUSTING GASKET | |
| 19 | TL02311010009 | LOCATING SLEEVE | |
| 20 | TL02311010011 | SEAT COVER | |
| 21 | TL02311010003 | MAIN REDUCER BOX ASSEMBLY | |
| 22 | GBT5783-M10X35-10.9-A3L | HEXAGON BOLT | |
| 23 | 9F650-26B010004A0 | NAMEPLATE | |
| 24 | GBT827-2.5X4-A3L | LABEL RIVET | |
| 25 | TL02311020010 | LIMIT BOLT | |
| 26 | CP4D304010028 | SCREW PLUG | |
| 27 | GBT3452.1-10.6X1.80G | RUBBER O-SEAL RING | |
| 28 | TL02311010080 | BONNET | |
| 29 | TL02311010005 | RIGHT TRANSMISSION ASSEMBLY |
