Каталог запасных частей к технике: Lovol TE-404. TE354.13 COOLING SYSTEM ASSEMBLY-2

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано TB-604 TD-1304 TD-904 TE-354 TE-404 TS-4A504-038K

Схема > Не выбрано 4L23BT-1C9 ENGINE ASSY-1 4L23BT-1C9 ENGINE ASSY-2 4L23BT-1C9 ENGINE ASSY-3 4L23BT-1C9 ENGINE ASSY-4 4L23BT-1C9 ENGINE ASSY-5 4L23BT-1C9 ENGINE ASSY-6 4L23BT-1C9 ENGINE ASSY-7 4L23BT-1C9 ENGINE ASSY-8 4L23BT-1C9 ENGINE ASSY-9 4L23BT-1C9 ENGINE ASSY-10 4L23BT-1C9 ENGINE ASSY-11 4L23BT-1C9 ENGINE ASSY-12 4L23BT-1C9 ENGINE ASSY-13 4L23BT-1C9 ENGINE ASSY-14 4L23BT-1C9 ENGINE ASSY-15 4L23BT-1C9 ENGINE ASSY-16 TE350.11A AIR FILTER SYSTEM ASSEMBLY TE354.13 COOLING SYSTEM ASSEMBLY-1 TE354.13 COOLING SYSTEM ASSEMBLY-2 TE254.133D WATER GUARD NET INSTALLATION ASSEMBLY TE324.20 CONTROL MECHANISM ASSEMBLY OF ENGINE-1 TE324.20 CONTROL MECHANISM ASSEMBLY OF ENGINE-2 TE300.211B CLUTCH SUBASSEMBLY TE300.212B CLUTCH CONTROL ASSEMBLY TE250.22 EXHAUST SYSTEM ASSEMBLY TE254.314G REAR SUPPORTING SEAT ASSEMBLY TL02311010000 FRONT DRIVING AXLE ASSEMBLY-1 TL02311010000 FRONT DRIVING AXLE ASSEMBLY-2 TL02311010000 FRONT DRIVING AXLE ASSEMBLY-3 TL02311010000 FRONT DRIVING AXLE ASSEMBLY-4 TL02311010000 FRONT DRIVING AXLE ASSEMBLY-5 TL02311010000 FRONT DRIVING AXLE ASSEMBLY-6 TE354.312A BRACKET ASSEMBLY TE254.313G FRONT SUPPORT SEAT ASSEMBLY TE354.32F FRONT DRIVING WHEEL ASSEMBLY TE354.34F REAR DRIVING WHEEL ASSEMBLY TE300.361 SHUTTLE SHIFT ASSEMBLY-1 TE300.361 SHUTTLE SHIFT ASSEMBLY-2 TE250.362F SHUTTLE SHIFT CONTROL MECHANISM ASSEMBLY TE300.371 TRANSMISSION CASE ASSEMBLY-1 TE300.371 TRANSMISSION CASE ASSEMBLY-2 TL02372010000K REAR CENTRAL ASSEMBLY OF TRANSMISSION CASE-1 TL02372010000K REAR CENTRAL ASSEMBLY OF TRANSMISSION CASE-2 TE300.391 LEFT HALF SHAFT ASSEMBLY TE300.392 RIGHT HALF SHAFT ASSEMBLY TL01401020000K STEERING WHEEL ASSEMBLY TE304.402C STEERING PIPE ASSEMBLY-1 TE304.402C STEERING PIPE ASSEMBLY-2 TL01403010000K STEERING PIPE COLUMN ASSEMBLY TE300.411A PTO SHAFT ASSEMBLY TE1L412040000K PTO GEAR ASSEMBLY TL02413010000K PTO CONTROL MECHANISM ASSEMBLY TE254.421B TRANSFER CASE ASSEMBLY TE354.422 TRANSFER CASE TRANSMISSION SHAFT ASSEMBLY TE254.423A TRANSFER CASE CONTROL ASSEMBLY TE354.431A BRAKE ASSEMBLY TE320.433 BRAKE CONTROL MECHANISM ASSEMBLY TL02440010000K SEAT ASSEMBLY TL02452060000K FLOOR ASSEMBLY TE250.471D BONNET INSTALLATION ASSEMBLY TE250.472A DASHBOARD INSTALLATION ASSEMBLY TE250.476E PNEUMATIC SPRING INSTALLATION ASSEMBLY TL01476020000 PORTAL FRAME INSTALLATION ASSEMBLY TE250.477 BONNET LOCK INSTALLATION ASSEMBLY TL01481190000K ENGINE HARNESS INSTALLATION ASSEMBLY TL02482010000K BODY HARNESS INSTALLATION ASSEMBLY TL01483020000K FRONT LAMP HARNESS INSTALLATION ASSEMBLY TL02484020000K REAR LAMP HARNESS INSTALLATION ASSEMBLY TE300.485B BATTERY INSTALLATION ASSEMBLY TE2S487020000K COMBINED INSTRUMENT ASSEMBLY FT300.49.001 TOOL BOX ASSEMBLY TL01501060000K FUEL OIL TANK ASSEMBLY TE300.53A TOW EQUIPMENT INSTALLATION ASSEMBLY TE300.55 LIFTER INSTALLATION ASSEMBLY-1 TE300.55 LIFTER INSTALLATION ASSEMBLY-2 TE300.55 LIFTER INSTALLATION ASSEMBLY-3 TE300.55 LIFTER INSTALLATION ASSEMBLY-4 TE300.56 SUSPENSION ASSEMBLY-1 TE300.56 SUSPENSION ASSEMBLY-2 FT250.57.001 DISTRIBUTOR ASSEMBLY TE354.581B OIL PUMP PIPE ASSEMBLY TE354.582D MULTI-WAY VALVE OIL PIPE ASSEMBLY-1 TE354.582D MULTI-WAY VALVE OIL PIPE ASSEMBLY-2 TE300.583A SIMPLE HYDRAULIC OUTPUT INSTALLATION ASSEMBLY TA600.62 SAFETY BELT INSTALLATION ASSEMBLY FT250.74.001 FRONT BALLAST ASSEMBLY FT250.91B.001 REAR BALLAST ASSEMBLY

1

1.1

1.2

1.3

1.4

1.5

1.6

1.7

1.8

Позиция на иллюстрации	Заводской номер детали		Название детали

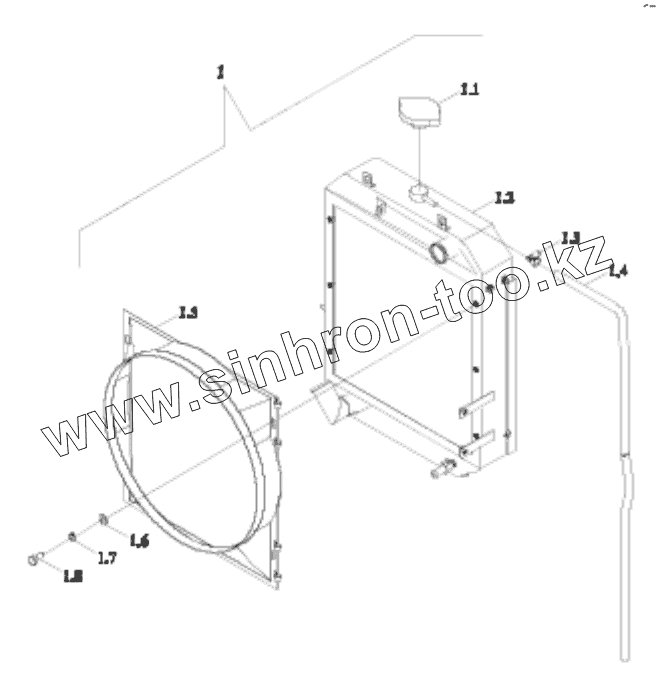

TE354.13(3)	TE354.13(3)		COOLING SYSTEM ASSEMBLY
1	TE354.13B.1(3)		RADIATOR ASSEMBLY
1.1	TB400.13.1		I-type Radiator Cap-Pressure Mark
1.2	TE354.13B.1-01		WATER COOLING RADIATOR ASSEMBLY
1.3	Q676B12		C-TYPE WORM TRANSMISSION HOSE CLAMP
1.4	TH400.13.1-03		Overflow Pipe
1.5	TE354.13B.1-02		WIND GUIDE COVER
1.6	GBT97.1-8-A0P(3)		FLAT WASHER
1.7	GBT93-8-A0P(3)		STANDARD SPRING WASHER
1.8	GBT5783-M8X16-8.8-A2L		Hexagon Bolt

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
