FT250.74.001 FRONT BALLAST ASSEMBLY
FT250.91B.001 REAR BALLAST ASSEMBLY

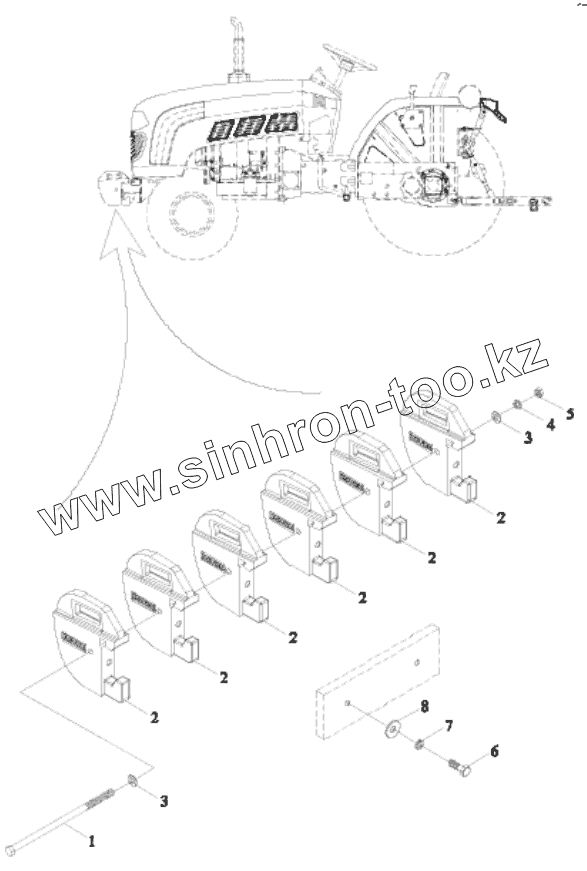

FT250.74.001
1
2
2
2
2
2
2
3
3
4
5
6
7
8
Позиция на иллюстрации
Заводской номер детали
Название детали
FT250.74.001
FT250.74.001
FRONT BALLAST ASSEMBLY
1
FT250.74.102
BALLAST FIXING BOLT
2
FT250.74.101a
FRONT BALLAST
3
GBT97.1-12-A0P
Plain washer
4
GBT93-12-A0P
Washer
5
GBT6170-M12-A3L
NUT
6
GBT5783-M10X45-8.8-A3L
Hexagon Bolt
7
GBT93-10-A0P
Standard spring washer
8
TE254.742-05
PAD BOARD
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
