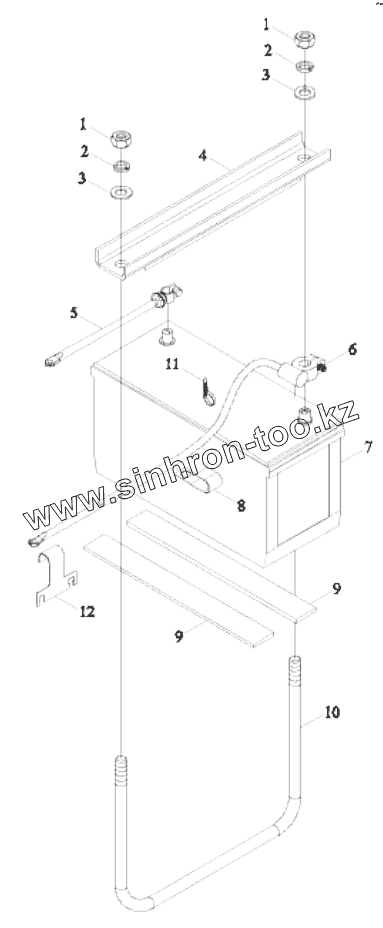

TS06485010000 BATTERY INSTALLATION ASSEMBLY
Каталог запасных частей к технике: Lovol TD-904. TS06485010000 BATTERY INSTALLATION ASSEMBLY
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
AGCO
Amity
CASE IH
DongFeng
Fortschritt
Foton
Franz Kleine
Gaspardo
Great Plains
KRONE
KUHN
Lemken
Lovol
MacDon
Massey Ferguson
New Holland
TIGARBO
Vaderstad
Versatile
Wirax
Агро
Агротехмаш
Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш»)
БЭМЗ
ВгТЗ
Воронежсельмаш
ВТЗ
Гомсельмаш
ДКЗ
ЗАО "Техника-сервис"
ЗиД
КЗК
Кировец-Ландтехник
Клевер
Красная Звезда
Лидагропроммаш
Лидсельмаш
ЛТЗ
Машстройхолдинг
Минитракторы
Мордовагромаш
МТЗ
Навигатор-Новое машиностроение
Нефтекамский автозавод
ПТЗ
Ремком
РСМ
Сибсельмаш
ТеКЗ
ТКЗ
ХЗТСШ
ХТЗ
ЮМЗ
Модель
Не выбрано
TB-604
TD-1304
TD-904
TE-354
TE-404
TS-4A504-038K
Схема
>
Не выбрано
1004C-P4TRT90K21-1 ENGINE
1004C-P4TRT90K21-2 ENGINE
1004C-P4TRT90K21-3 ENGINE
1004C-P4TRT90K21-4 ENGINE
1004C-P4TRT90K21-5 ENGINE
1004C-P4TRT90K21-6 ENGINE
1004C-P4TRT90K21-7 ENGINE
1004C-P4TRT90K21-8 ENGINE
1004C-P4TRT90K21-9 ENGINE
1004C-P4TRT90K21-10 ENGINE
1004C-P4TRT90K21-11 ENGINE
1004C-P4TRT90K21-12 ENGINE
1004C-P4TRT90K21-13 ENGINE
1004C-P4TRT90K21-14 ENGINE
1004C-P4TRT90K21-15 ENGINE
1004C-P4TRT90K21-16 ENGINE
1004C-P4TRT90K21-17 ENGINE
1004C-P4TRT90K21-18 ENGINE
1004C-P4TRT90K21-19 ENGINE
1004C-P4TRT90K21-20 ENGINE
1004C-P4TRT90K21-21 ENGINE
1004C-P4TRT90K21-22 ENGINE
1004C-P4TRT90K21-23 ENGINE
1004C-P4TRT90K21-24 ENGINE
1004C-P4TRT90K21-25 ENGINE
1004C-P4TRT90K21-26 ENGINE
1004C-P4TRT90K21-27 ENGINE
1004C-P4TRT90K21-28 ENGINE
1004C-P4TRT90K21-29 ENGINE
1004C-P4TRT90K21-30 ENGINE
1004C-P4TRT90K21-31 ENGINE
1004C-P4TRT90K21-32 ENGINE
1004C-P4TRT90K21-33 ENGINE
TS06110070000 AIR FILTER SYSTEM ASSEMBLY
TS06131020000 COOLING SYSTEM ASSEMBLY
TS06132010000 RADIATOR BACKING BOARD INSTALLATION ASSEMBLY
TS06201010000 HAND THROTTLE CONTROL ASSEMBLY
TS06202010000 FOOT THROTTLE CONTROL ASSEMBLY
TS06203010000 PULL WIRE ASSEMBLY
FT800.21C.001 CLUTCH ASSEMBLY
TD1S212010000 CLUTCH CONTROL MECHANISM ASSEMBLY-1
TD1S212010000 CLUTCH CONTROL MECHANISM ASSEMBLY-2
TD1S212010000 CLUTCH CONTROL MECHANISM ASSEMBLY-3
TS06220030000 EXHAUST SYSTEM ASSEMBLY
TD1C311010000K FRONT DRIVING AXLE ASSEMBLY-1
TD1C311010000K FRONT DRIVING AXLE ASSEMBLY-2
TD1C311010000K FRONT DRIVING AXLE ASSEMBLY-3
TD1C311010000K FRONT DRIVING AXLE ASSEMBLY-4
TD1C311010000K FRONT DRIVING AXLE ASSEMBLY-5
TD1C311010000K FRONT DRIVING AXLE ASSEMBLY-6
TD1C311010000K FRONT DRIVING AXLE ASSEMBLY-7
TS06312020000 BRACKET ASSEMBLY
TS06313010000 BRACKET FRONT BODY ASSEMBLY
FT904.32F.001 FRONT DRIVING WHEEL ASSEMBLY
FT804.34F.001 REAR DRIVING WHEEL ASSEMBLY
FT800.35B.001 TOWING MECHANISM ASSEMBLY
TS06371010000 GEARBOX HOUSING ASSEMBLY
TD950.372L MAIN/AUXILIARY GEARSHIFT ASSEMBLY-1
TD950.372L MAIN/AUXILIARY GEARSHIFT ASSEMBLY-2
TD950.372L MAIN/AUXILIARY GEARSHIFT ASSEMBLY-3
TD950.372L MAIN/AUXILIARY GEARSHIFT ASSEMBLY-4
TD950.372L MAIN/AUXILIARY GEARSHIFT ASSEMBLY-5
TS06373040000 SIDE CONTROL ASSEMBLY-1
TS06373040000 SIDE CONTROL ASSEMBLY-2
TS06373040000 SIDE CONTROL ASSEMBLY-3
TS06373040000 SIDE CONTROL ASSEMBLY-4
TS06374010000 CREEPER GEAR MECHANISM ASSEMBLY
TC05382010000 REAR AXLE CENTRAL TRANSMISSION ASSEMBLY-1
TC05382010000 REAR AXLE CENTRAL TRANSMISSION ASSEMBLY-2
TS06383010000 DIFFERENTIAL LOCK CONTROL MECHANISM ASSEMBLY
TD1S384020000K REAR AXLE HOUSING ASSEMBLY-1
TD1S384020000K REAR AXLE HOUSING ASSEMBLY-2
TC05385030000 BREATH ASSEMBLY
FT800.39.001 LEFT FINAL TRANSMISSION ASSEMBLY
FT800.39.002 RIGHT FINAL TRANSMISSION ASSEMBLY
TS06401010000 STEERING PLATE AND STEERING PIPE COLUMN ASSEMBLY
TS06402030000 FULL HYDRAULIC STEERING PIPE ASSEMBLY-1
TS06402030000 FULL HYDRAULIC STEERING PIPE ASSEMBLY-2
TD800.411C PTO SHAFT ASSEMBLY
TD800.412R PTO GEAR ASSEMBLY-1
TD800.412R PTO GEAR ASSEMBLY-2
TS06413010000 PTO CONTROL MECHANISM ASSEMBLY
TC05414010000K PTO BONNET ASSEMBLY
TD904.421A TRANSFER CASE ASSEMBLY-1
TD904.421A TRANSFER CASE ASSEMBLY-2
TD904.421A TRANSFER CASE ASSEMBLY-3
TRANSFER CASE TRANSMISSION SHAFT AND COVER ASSEMBLY-1
TRANSFER CASE TRANSMISSION SHAFT AND COVER ASSEMBLY-2
TS06423010000 TRANSFER CASE CONTROL ASSEMBLY
TS06433010000 TRAVELLING BRAKE CONTROL MECHANISM ASSEMBLY-1
TS06433010000 TRAVELLING BRAKE CONTROL MECHANISM ASSEMBLY-2
TS06433010000 TRAVELLING BRAKE CONTROL MECHANISM ASSEMBLY-3
TS06435010000 PARKING BRAKE CONTROL MECHANISM ASSEMBLY-1
TS06435010000 PARKING BRAKE CONTROL MECHANISM ASSEMBLY-2
TS06441010000 SEAT INSTALLATION ASSEMBLY
TD1C451020000K DRIVER’S CAB ASSEMBLY-1
TD1C451020000K DRIVER’S CAB ASSEMBLY-2
TD1C451020000K DRIVER’S CAB ASSEMBLY-3
TD1C451020000K DRIVER’S CAB ASSEMBLY-4
TD1C451020000K DRIVER’S CAB ASSEMBLY-5
TD1C451020000K DRIVER’S CAB ASSEMBLY-6
TD1C451020000K DRIVER’S CAB ASSEMBLY-7
TD1C451020000K DRIVER’S CAB ASSEMBLY-8
TS06453040000 UPHOLSTERY ASSEMBLY
TS06455010000 BACK REAR MUD GUARD DECORATION PART
TC03456020000 DASHBOARD ASSEMBLY
TC05457070000K FRONT CONNECTING ASSEMBLY
TS06458010000 REAR CONNECTING ASSEMBLY
TS06459010000 INSULATION LAYER
TS06471010000 BONNET ASSEMBLY-1
TS06471010000 BONNET ASSEMBLY-2
TS06473020000 BONNET PNEUMATIC SPRING BRACKET ASSEMBLY
TS06473010000 BONNET LOCKING DEVICE ASSEMBLY
TS06475030000 BONNET SEAL INSTALLATION ASSEMBLY
TD1C476020000K LEFT FRONT MUD GUARD ASSEMBLY
TD1C477020000K RIGHT FRONT MUD GUARD ASSEMBLY
TS06481120000 ENGINE HARNESS INSTALLATION ASSEMBLY
TS06482010000K BODY HARNESS INSTALLATION ASSEMBLY
TC05483040000K FRONT LAMP HARNESS INSTALLATION ASSEMBLY
TS06484020000K REAR LAMP HARNESS INSTALLATION ASSEMBLY
TS06485010000 BATTERY INSTALLATION ASSEMBLY
TS06486010000K TOP LIGHT HARNESS INSTALLATION ASSEMBLY
TS06487010000 COMBINED INSTRUMENT ASSEMBLY
TS06049020000 TOOL BOX INSTALLATION ASSEMBLY
TS06501020000 MAIN OIL TANK INSTALLATION ASSEMBLY
TS06502020000 AUXILIARY OIL TANK INSTALLATION ASSEMBLY
TD800.503A OIL INLET/OUTLET PIPE ASSEMBLY
FT800.53.001 TOW MECHANISM ASSEMBLY
TS06551080000 LIFTER INSTALLATION ASSEMBLY-1
TS06551080000 LIFTER INSTALLATION ASSEMBLY-2
FT800.56A.001 SUSPENSION ASSEMBLY-1
FT800.56A.001 SUSPENSION ASSEMBLY-2
FT800.56A.001 SUSPENSION ASSEMBLY-3
TD1S581040000K OIL PUMP/PIPE/FILTER ASSEMBLY
TD1S582110000K HYDRAULIC SYSTEM EQUIPMENT ASSEMBLY-1
TD1S582110000K HYDRAULIC SYSTEM EQUIPMENT ASSEMBLY-2
TD1S582110000K HYDRAULIC SYSTEM EQUIPMENT ASSEMBLY-3
TD1S582110000K HYDRAULIC SYSTEM EQUIPMENT ASSEMBLY-4
FT800.74B.002 FRONT BALLAST BRACKET ASSEMBLY
FT800.74B.001 FRONT BALLAST ASSEMBLY
TS06801010000K BRAKE VALVE ASSEMBLY
TS06802010000 AIR CYLINDER ASSEMBLY
TS06803010000K AIR CONVEYING PIPELINE ASSEMBLY
TS06811010000 AIR CONDITION ASSEMBLY-CAB
TS06812010000 AIR CONDITION ASSEMBLY-ENGINE
FT804.91.001 REAR BALLAST ASSEMBLY
1
1
2
2
3
3
4
5
6
7
8
9
9
10
11
12
Позиция на иллюстрации
Заводской номер детали
Название детали
TS06485010000
TS06485010000
BATTERY INSTALLATION ASSEMBLY
1
GBT6170-M8-8-A2L
Hexagon nut, style 1
2
GBT93-8-A0P
Standard spring washer
3
GBT97.1-8-A0P
Plain washer
4
TG1204.485-02
BATTERY PRESS PLATE
5
FT65.48.091
BATTERY GROUNDING WIRE
6
FT65.48.090a
BATTERY POWER WIRE
7
TG1204.485.1
BATTERY ASSEMBLY
8
FT800A.48L.106
HARNESS CLAMP
9
TB450.485.1
Battery shock absorbing pad
10
TG1204.485-01
PULL ROD
11
Q67405100
Plastic fastening strap
12
FT65.48.112
POWER WIRE FIXING PLATE
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
