  5. TS06402030000 FULL HYDRAULIC STEERING PIPE ASSEMBLY-2

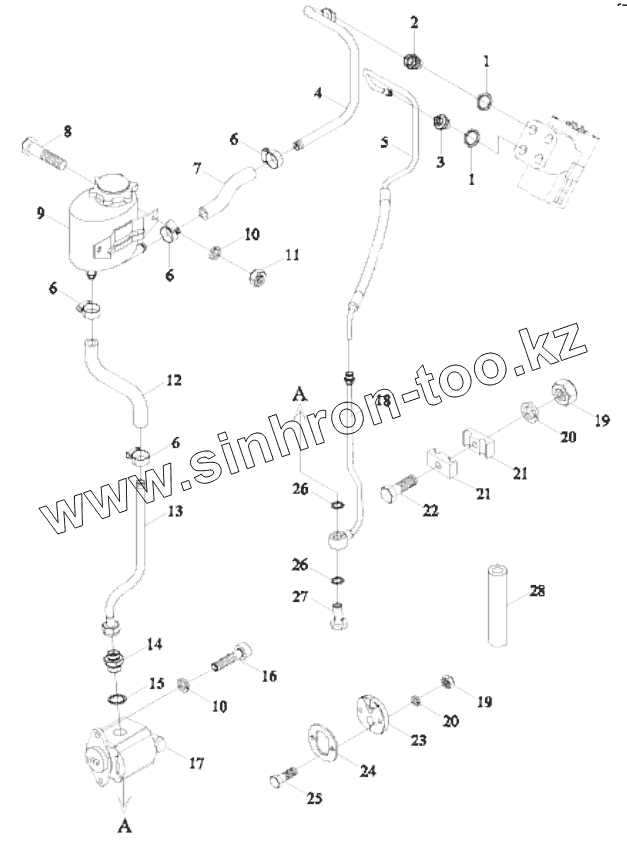

Каталог запасных частей к технике: Lovol TD-904. TS06402030000 FULL HYDRAULIC STEERING PIPE ASSEMBLY-2

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
TS06402030000(2)
1
1
2
3
4
5
6
6
6
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
19
20
20
21
21
22
23
24
25
26
26
27
28
Позиция на иллюстрации Заводской номер детали Название детали
TS06402030000(2) TS06402030000(2) FULLHYDRAULICSTEERINGPIPEASSEMBLY
1 JBT982-20(2) COMBINED SEAL GASKET
2 GBT3733-L16A STRAIGHT THREAD JOINT
3 TD1100.402G-01(2) JOINT
4 TS06402010004 REDIRECTOR OIL RETURN PIPE ASSEMBLY
5 TS06402010005 REDIRECTOR OIL INLET PIPE ASSEMBLY
6 Q67632 B-Type Worm Transmission Hose Clamp
7 TS06402010003 OIL RETURN HOSE
8 GBT5781-M10X20-4.8-A3L HEXAGON BOLT
9 TD1100.402B.1 STEERING OIL TANK AND BREATH ASSEMBLY
10 GBT93-10-A0P Standard spring washer
11 GBT6170-M10-10-A3L HEXAGON NUT, TYPE-1
12 FT800A.40.104 OIL INLET HOSE
13 TS06402010009 OIL PUMP INLET STEEL PIPE WELDMENT
14 TD904.402A-01 JOINT
15 JBT982-27 COMBINED SEAL GASKET
16 GBT70.1-M10X25-8.8-A3L INNER HEXAGON SCREW
17 FT800A.40.028 STEERING PUMP ASSEMBLY
18 TS06402010002 OIL PUMP STEEL PIPE ASSEMBLY
19 GBT6170-M6-8-A2L(2) HEXAGON NUT, TYPE-1
20 GBT93-6-A0P(2) STANDARD SPRING WASHER
21 FT800.40L.108 SHORT OIL PIPE CLAMP
22 GBT5781-M6X25-4.8-A2L HEXAGON BOLT
23 TD904.402X-04 SHOCK ABSORBER
24 TD904.402X-02 CLAMP PLATE-2
25 GBT5783-M6X25-8.8-A2L(2) HEXAGON BOLT
26 JBT982-18 Combined Seal Gasket
27 FT700.40G.109 HOLLOW BOLT
28 FT800A.40.108 TRANSMISSION SLEEVE
