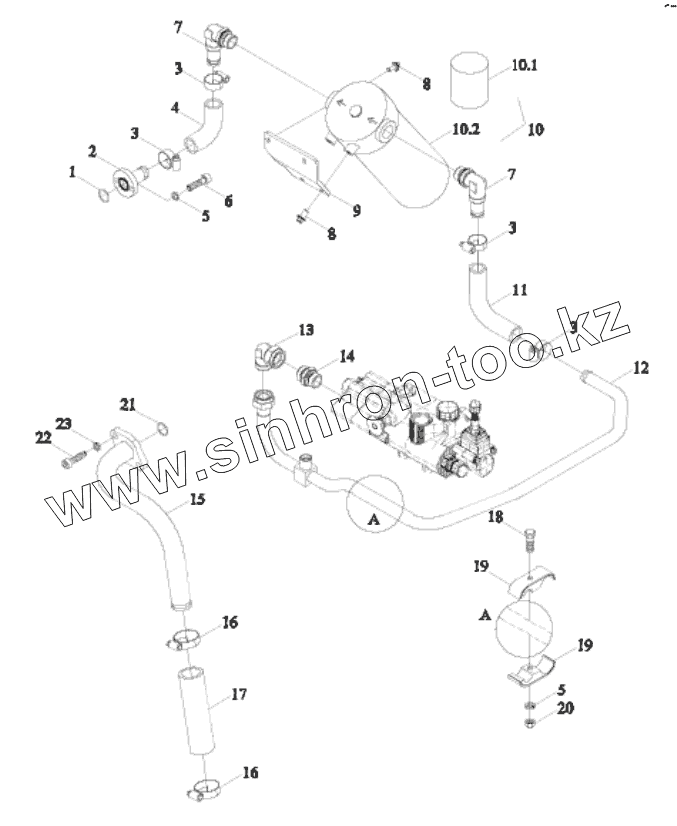

Каталог запасных частей к технике: Lovol TD-904. TD1S582110000K HYDRAULIC SYSTEM EQUIPMENT ASSEMBLY-3

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
TD1S582110000K(3)
TD1S582110000K(3)
1
2
3
3
3
3
4
5
5
6
7
7
8
8
9
10
10.1
10.2
11
12
13
14
15
16
16
17
18
19
19
20
21
22
23
Позиция на иллюстрации Заводской номер детали Название детали
TD1S582110000K(3) TD1S582110000K(3) HYDRAULIC SYSTEM EQUIPMENT ASSEMBLY
1 GBT3452.1-22.4X1.80G RUBBER O-SEAL RING
2 TS06582180019 OIL RETURN PIPE ASSEMBLY
3 Q67632 B-Type Worm Transmission Hose Clamp
4 TS06582180023 OIL RETURN RUBBER HOSE 2
5 GBT93-8-A3L(3) STANDARD SPRING WASHER
6 GBT70.1-M8X25-8.8-A2L Inner Hexagon Screw
7 TD924.582N.11 OIL OUTLET PIPE WELDMENT
8 GBT16674.1-M8X16-8.8-A2L(2) HEXAGON FLANGE NUT
9 TS06582180043 OIL RETURN FILTER BRACKET
10 TS06582180041 OIL RETURN FILTER ASSEMBLY
10.1 TS06582120008 OIL RETURN FILTER ELEMENT
10.2 TS06582180042 FILTER
11 TS06582180022 OIL RETURN RUBBER HOSE 1
12 TS06582180006 DISTRIBUTOR OIL RETURN PIPE ASSEMBLY
13 GBT3754-L22 JOINT
14 TD924.582N.16 STRAIGHT THREAD JOINT
15 TS06582180001 OIL SUCTION SHORT PIPE WELDMENT
16 Q67645 B-Type Worm Transmission Hose Clamp
17 TS06581110003 OIL SUCTION RUBBER HOSE 1
18 GBT5783-M8X55-8.8-A2L HEXAGON BOLT
19 TS06582180035 OIL PIPE CLAMP AND RUBBER WASHER
20 GBT6170-M8-10-A2L Hex nut, style 1
21 GBT3452.1-37.5X2.65G RUBBER O-SEAL RING
22 GBT70.1-M10X30-8.8-A3L INNER HEXAGON SCREW
23 GBT93-10-A3L(2) STANDARD SPRING WASHER
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
