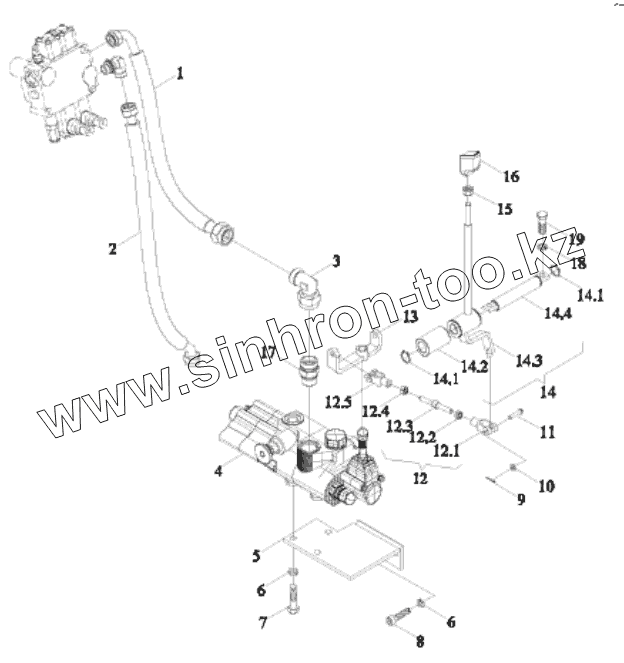

Каталог запасных частей к технике: Lovol TD-904. TD1S582110000K HYDRAULIC SYSTEM EQUIPMENT ASSEMBLY-2

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
TD1S582110000K(2)
1
2
3
4
5
6
6
7
8
9
10
11
12
12.1
12.2
12.3
12.4
12.5
13
14
14.1
14.1
14.2
14.3
14.4
15
16
17
18
19
Позиция на иллюстрации Заводской номер детали Название детали
TD1S582110000K(2) TD1S582110000K(2) HYDRAULIC SYSTEM EQUIPMENT ASSEMBLY
1 TS06582180004 DISTRIBUTOR OIL INLET PIPE ASSEMBLY
2 TS06582180005 MULTI-WAY VALVE OIL RETURN PIPE ASSEMBLY
3 GBT3754-S20 JOINT
4 TS06582130002 DISTRIBUTOR ASSEMBLY
5 FT904A.58.030 DISTRIBUTOR BRACKET WELDMENT
6 GBT93-10-A3L Standard Spring Washer
7 GBT16674.1-M10X25-10.9-A3L HEXAGON FLANGE NUT
8 GBT70.1-M10X25-8.8-A3L INNER HEXAGON SCREW
9 GBT91-2X16-A3L SPLIT PIN
10 GBT97.1-6-A3L(2) FLAT WASHER
11 GBT882-B6X28-A3L PIN SHAFT
12 TS06582180033 DISTRIBUTOR CONTROL ROD ASSEMBLY
12.1 FT804A.58L.136 LEFT REVOLVING PULL ROD FORK
12.2 GBT6170-M8-LH-8-A2L Hexagon nut, style 1
12.3 TS06582180034 CONTROL CONNECTING ROD
12.4 GBT6170-M8-8-A2L Hexagon nut, style 1
12.5 FT804A.58L.133 RIGHT REVOLVING PULL ROD FORK
13 TS06582130004 CONNECTING SLEEVE WELDMENT
14 TS06582180029 DISTRIBUTOR CONTROL ASSEMBLY
14.1 GBT894.1-20 Circlip for shaft
14.2 TS12582030008 SLEEVE
14.3 TS06582180030 DISTRIBUTOR CONTROL WELDMENT
14.4 TS04552010001 Fixing shaft
15 GBT6170-M10-8-A3L Hexagon Nut, Style 1
16 TS12582030014 CONTROL HANDLE HEAD
17 TS06582130049 END STRAIGHT THREAD CONNECTOR BODY
18 GBT93-8-A3L(2) STANDARD SPRING WASHER
19 GBT5783-M8X20-8.8-A2L Hexagon flange nut
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
