  5. TD1S582110000K HYDRAULIC SYSTEM EQUIPMENT ASSEMBLY-1

Каталог запасных частей к технике: Lovol TD-904. TD1S582110000K HYDRAULIC SYSTEM EQUIPMENT ASSEMBLY-1

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1.1
1.2
1.3
1.4
2
2.1
2.2
2.3
2.4
3
4
5
6
7
8
9
9
10
11
11
12
13
14
15
15.1
15.2
15.3
15.4
16
17
18
18

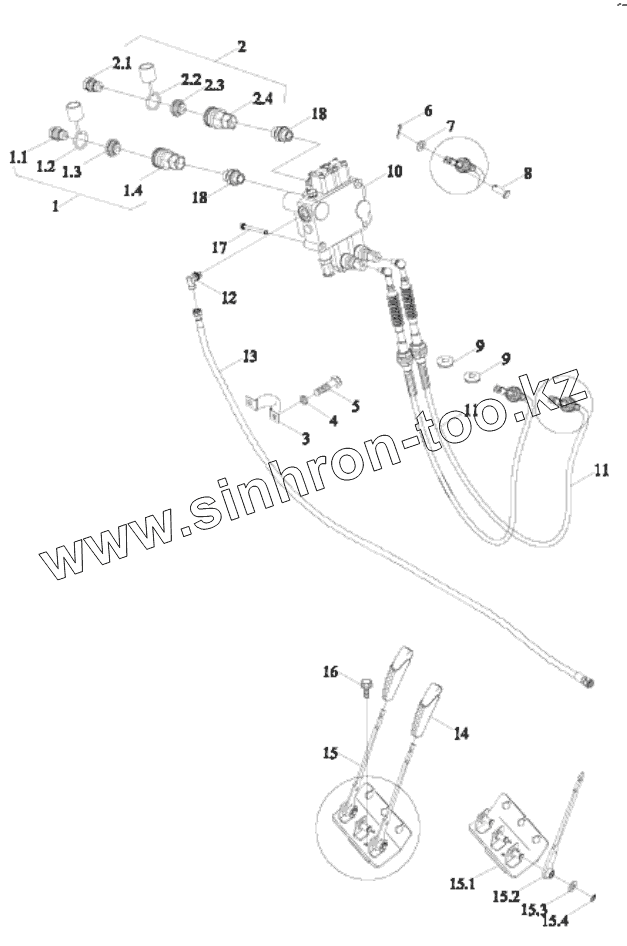

Позиция на иллюстрации Заводской номер детали Название детали
TD1S582110000K TD1S582110000K HYDRAULIC SYSTEM EQUIPMENT ASSEMBLY
1 TC02580010001K Quick-change connector
1.1 FT354.58A.032 JOINT
1.2 TC02580010003K DUSTPROOF COVER
1.3 TC02580010002K DUSTPROOF COVER
1.4 FT354.58A.031 JOINT
2 FT354.58A.030 Quick-change connector
2.1 FT354.58A.032(2) JOINT
2.2 FT354.58A.302 DUSTPROOF COVER
2.3 FT354.58A.103 DUSTPROOF COVER
2.4 FT354.58A.031(2) JOINT
3 YC4.29A-07 OUT OIL PIPE PIPE CLAMP
4 GBT93-8-A3L Standard Spring Washer
5 GBT16674.1-M8X16-8.8-A2L Hexagon Flange Nut
6 GBT91-2X14-A3L SPLIT PIN
7 GBT97.1-6-A3L Plain washer
8 TG1654.583C-01 Pin shaft
9 TS04582010027 Rubber ring
10 TC04582140010 Multi-way valve assembly
11 TS06582010007 SOFT SHAFT MECHANISM ASSEMBLY
12 TC04582140012 Adjustable joint M18-15 assembly
13 TS06582180003 MULTI-WAY VALVE OIL INLET PIPE ASSEMBLY
14 TS04582010025 Handle head
15 TD1S582020001 MULTI-WAY VALVE CONTROL MECHANISM INSTALLA- TION ASSEMBLY
15.1 TD1S582020002 INSTALLATION SEAT WELDMENT
15.2 TD1S582020004 CONTROL HANDLE WELD
15.3 GBT97.1-14-A0P Plain washer
15.4 GBT894.1-14 Circlip for shaft
16 GBT16674.1-M8X30-8.8-A2L HEXAGON FLANGE NUT
17 GBT16674.1-M6X55-8.8-A2L HEXAGON FLANGE NUT
18 TC04582140009 Straight thread connector, body M18 assembly
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
