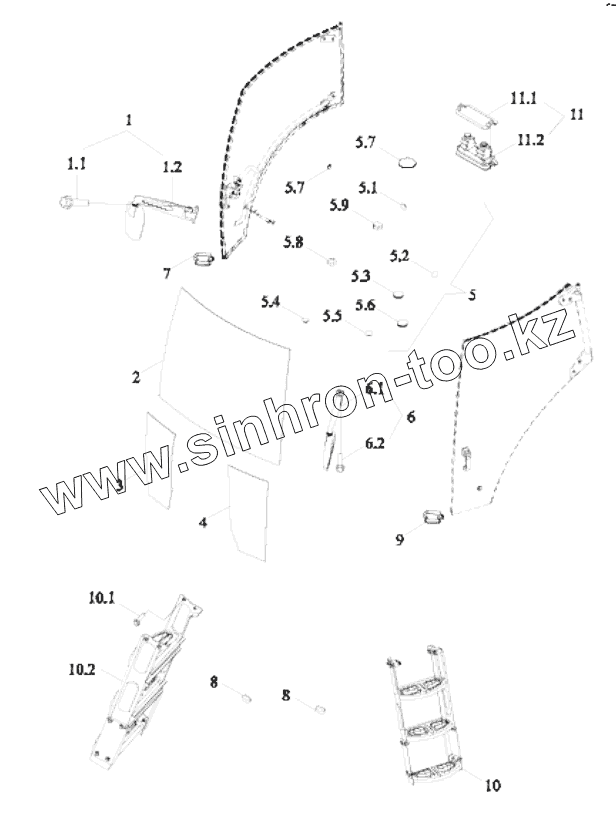

Каталог запасных частей к технике: Lovol TD-904. TD1C451020000K DRIVER’S CAB ASSEMBLY-3

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
TD1C451020000K(3)
TS06451020002(3)
1
1.1
1.2
2
3
4
5
5.1
5.2
5.3
5.4
5.5
5.6
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.7
5.8
5.9
6
6.1
6.2
7
8
8
9
10
10.1
10.2
11
11.1
11.2
Позиция на иллюстрации Заводской номер детали Название детали
TD1C451020000K(3) TD1C451020000K(3) DRIVER’S CAB ASSEMBLY
TS06451020002(3) TS06451020002(3) CAB ACCESSORY
1 TS06451018201 RIGHT REAR MIRROR INSTALLATION ASSEMBLY
1.1 GBT16674.1-M8X25-8.8-A2L HEXAGON FLANGE NUT
1.2 TS06451018200 RIGHT REAR MIRROR ASSEMBLY
2 TS06451015001 FRONT WINDSHIELD
3 TS06451015005 RIGHT FRONT LOWER WINDOW GLASS
4 TS06451015004 LEFT FRONT LOWER WINDOW GLASS
5 TS06451019000 CAB SEAL
5.1 TS06451019004 Processing hole plug cover 4
5.2 TS06451019001 Processing hole plug cover 1
5.3 TD800.452-13 PLUG COVER
5.4 TS06451019003 Processing hole plug cover 3
5.5 TS06451019002 PROCESS PLUG COVER 2
5.6 TD800.452-11 PLUG COVER
5.7 QLWZL002-80X1.5 3M GLUE PIECE
5.7 QLWZL002-20X1.0 3M GLUE PIECE
5.7 QLWZL002-35X1.0 3M GLUE PIECE
5.8 TS06451019006 SEAL SPONGE
5.9 TS06451019005 SEAL SPONGE
6 TS06451018101 LEFT REAR VIEW MIRROR INSTALLATION ASSEMBLY
6.1 TS06451018100 LEFT REAR MIRROR ASSEMBLY
6.2 GBT16674.1-M8X25-8.8-A2L(2) HEXAGON FLANGE NUT
7 TS06811010009 GUARD RING 2
8 TS06451011274 GLASS MOUNTINGS MAT
9 TS06811010008 GUARD RING 1
10 TS06451017200 LADDER INSTALLATION ASSEMBLY
10.1 GBT16674.1-M10X50-8.8-A3L HEXAGON FLANGE NUT
10.2 TS06451017206 LADDER
11 TS04451010040 HANDLE BONNET
11.1 TS04451010042 BONNET PRESSURE PLATE
11.2 TS04451010041 HANDLE BONNET
