  5. TD1C311010000K FRONT DRIVING AXLE ASSEMBLY-1

Каталог запасных частей к технике: Lovol TD-904. TD1C311010000K FRONT DRIVING AXLE ASSEMBLY-1

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
1.1
1.2
1.3
2
2
3
4
5
5
6
7
7
8
8
8.1
8.2
8.3
9
10
10
11
11
12
13

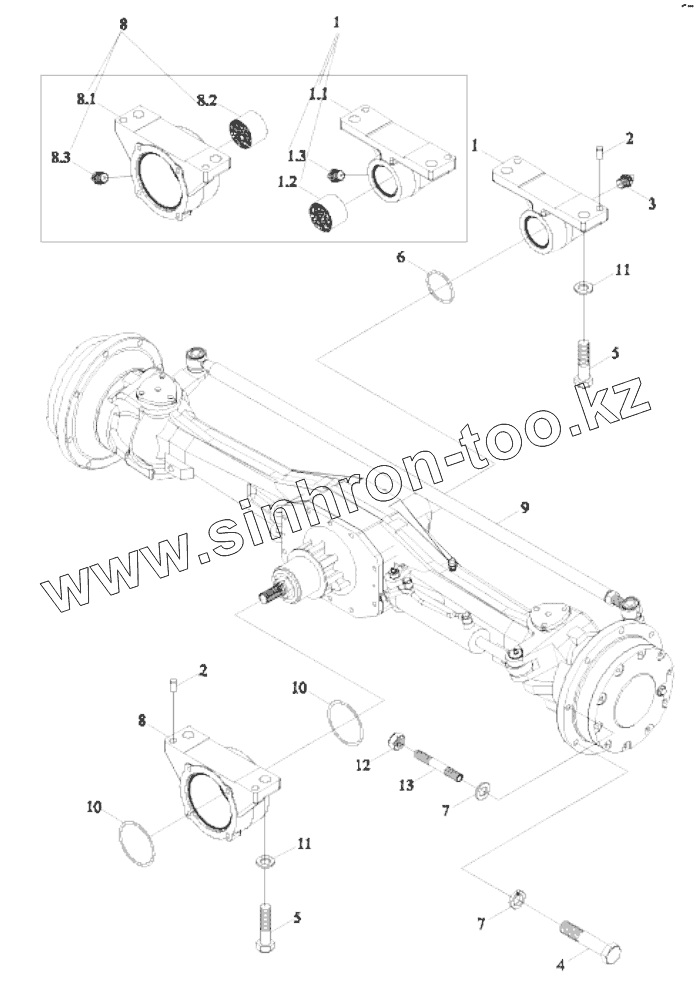

Позиция на иллюстрации Заводской номер детали Название детали
TD1C311010000K TD1C311010000K FRONT DRIVING AXLE ASSEMBLY
1 TD904.311G.2 FRONT SUPPORT SEAT ASSEMBLY
1.1 TD904.311G.2-01 FRONT SUPPORT SEAT
1.2 TD904.311G.2-02 FRONT SEAT SLEEVE
1.3 JBT7940.1-M10X1 STRAIGHT FORCED FILLING OIL CUP
2 GBT119.1-12h8X24-A0P COLUMN PIN
3 JBT7940.1-M10X1(2) STRAIGHT FORCED FILLING OIL CUP
4 GBT5786-M16X1.5X45-10.9-A3L HEXAGON BOLT
5 GBT5786-M18X1.5X60-10.9-A3L HEXAGON BOLT
6 GBT3452.1-90.0X3.55G RUBBER O-SEAL RING
7 FT654.32.104 Washer
8 TD904.311G.3 REAR SUPPORT SEAT ASSEMBLY
8.1 TD904.311G.3-01 REAR SUPPORT SEAT
8.2 FT804.31.103 FRONT DRIVING AXLE REAR SEAT BUSH
8.3 JBT7940.1-M10X1(3) STRAIGHT FORCED FILLING OIL CUP
9 TD1C311010001K FRONT DRIVING AXLE SUB-ASSEMBLY
10 TD804.311-02 O RING
11 FT804.31B.120 Washer
12 GBT6171-M16X1.5-10-A3L Nut
13 TD904.311K-02 DOUBLE END STUDS
