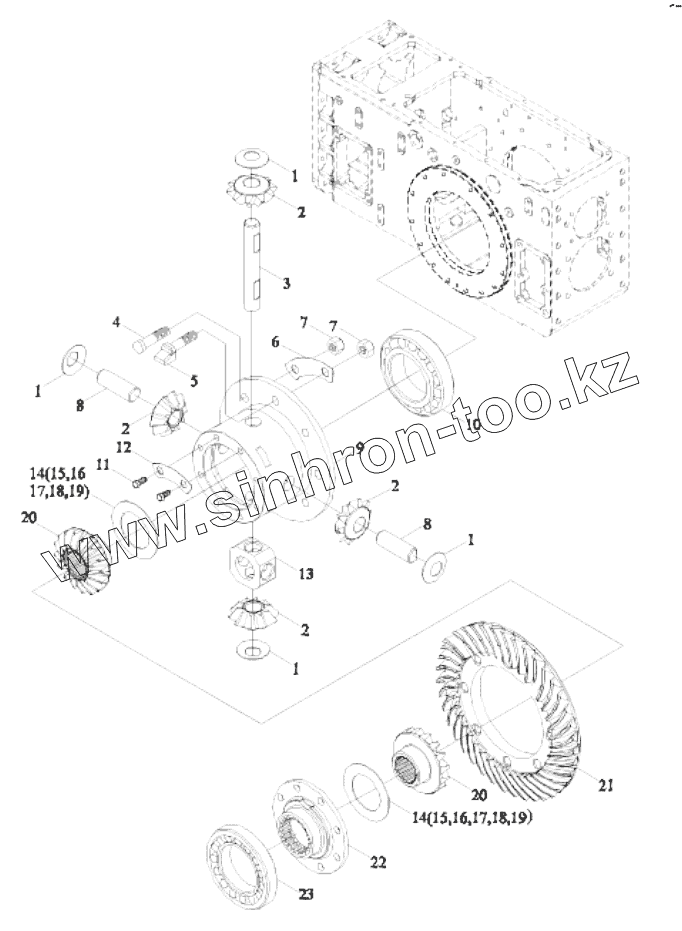

Каталог запасных частей к технике: Lovol TD-904. TC05382010000 REAR AXLE CENTRAL TRANSMISSION ASSEMBLY-2

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
TC05382010000(2)
TC05382010000(2)
FT800.38.012
FT800.38.012
1
1
1
1
2
2
2
2
3
4
5
6
7
7
8
8
9
10
11
12
13
14
14
15
15
16
16
17
17
18
18
19
19
20
20
21
22
23
Позиция на иллюстрации Заводской номер детали Название детали
TC05382010000(2) TC05382010000(2) REAR AXLE CENTRAL TRANSMISSION ASSEMBLY
FT800.38.012 FT800.38.012 DIFFERENTIAL ASSEMBLY
1 FT800.38.216 PLANET GEAR WASHER
2 FT800.38.217a PLANET GEAR
3 FT800.38.215 PLANET GEAR SHAFT
4 FT800.38.211 LOCKING BOLT
5 FT800.38.212 PLANET GEAR SHAFT THRUST SCREW
6 FT800.38.213 LOCK WASHER
7 GBT6171-M14X1.5-8-A3L HEXAGON NUT, TYPE-1
8 FT800.38.131 SHORT PLANETARY GEAR SHAFT
9 FT800.38.128 DIFFERENTIAL HOUSING
10 GBT297-32216 TAPERED ROLLER BEARING
11 GBT5783-M12X25-8.8-A3L Hexagon head bolt
12 FT800.38.218 LOCKING WASHER
13 FT800.38.132 CENTRAL RING
14 FT800.38.210 HALF SHAFT GEAR WASHER
15 FT800.38.200 HALF SHAFT GEAR WASHER
16 FT800.38.220 HALF SHAFT GEAR WASHER
17 FT800.38.230 HALF SHAFT GEAR WASHER
18 FT800.38.240 HALF SHAFT GEAR WASHER
19 FT800.38.250 HALF SHAFT GEAR WASHER
20 FT800.38.130a HALF SHAFT GEAR
21 FT800.38.129 BIG TAPER GEAR
22 FT800.38.133 DIFFERENTIAL COVER
23 GBT297-30216 TAPERED ROLLER BEARING
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
