Каталог запасных частей к технике: Lovol TD-904. FT800.53.001 TOW MECHANISM ASSEMBLY

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано TB-604 TD-1304 TD-904 TE-354 TE-404 TS-4A504-038K

Схема > Не выбрано 1004C-P4TRT90K21-1 ENGINE 1004C-P4TRT90K21-2 ENGINE 1004C-P4TRT90K21-3 ENGINE 1004C-P4TRT90K21-4 ENGINE 1004C-P4TRT90K21-5 ENGINE 1004C-P4TRT90K21-6 ENGINE 1004C-P4TRT90K21-7 ENGINE 1004C-P4TRT90K21-8 ENGINE 1004C-P4TRT90K21-9 ENGINE 1004C-P4TRT90K21-10 ENGINE 1004C-P4TRT90K21-11 ENGINE 1004C-P4TRT90K21-12 ENGINE 1004C-P4TRT90K21-13 ENGINE 1004C-P4TRT90K21-14 ENGINE 1004C-P4TRT90K21-15 ENGINE 1004C-P4TRT90K21-16 ENGINE 1004C-P4TRT90K21-17 ENGINE 1004C-P4TRT90K21-18 ENGINE 1004C-P4TRT90K21-19 ENGINE 1004C-P4TRT90K21-20 ENGINE 1004C-P4TRT90K21-21 ENGINE 1004C-P4TRT90K21-22 ENGINE 1004C-P4TRT90K21-23 ENGINE 1004C-P4TRT90K21-24 ENGINE 1004C-P4TRT90K21-25 ENGINE 1004C-P4TRT90K21-26 ENGINE 1004C-P4TRT90K21-27 ENGINE 1004C-P4TRT90K21-28 ENGINE 1004C-P4TRT90K21-29 ENGINE 1004C-P4TRT90K21-30 ENGINE 1004C-P4TRT90K21-31 ENGINE 1004C-P4TRT90K21-32 ENGINE 1004C-P4TRT90K21-33 ENGINE TS06110070000 AIR FILTER SYSTEM ASSEMBLY TS06131020000 COOLING SYSTEM ASSEMBLY TS06132010000 RADIATOR BACKING BOARD INSTALLATION ASSEMBLY TS06201010000 HAND THROTTLE CONTROL ASSEMBLY TS06202010000 FOOT THROTTLE CONTROL ASSEMBLY TS06203010000 PULL WIRE ASSEMBLY FT800.21C.001 CLUTCH ASSEMBLY TD1S212010000 CLUTCH CONTROL MECHANISM ASSEMBLY-1 TD1S212010000 CLUTCH CONTROL MECHANISM ASSEMBLY-2 TD1S212010000 CLUTCH CONTROL MECHANISM ASSEMBLY-3 TS06220030000 EXHAUST SYSTEM ASSEMBLY TD1C311010000K FRONT DRIVING AXLE ASSEMBLY-1 TD1C311010000K FRONT DRIVING AXLE ASSEMBLY-2 TD1C311010000K FRONT DRIVING AXLE ASSEMBLY-3 TD1C311010000K FRONT DRIVING AXLE ASSEMBLY-4 TD1C311010000K FRONT DRIVING AXLE ASSEMBLY-5 TD1C311010000K FRONT DRIVING AXLE ASSEMBLY-6 TD1C311010000K FRONT DRIVING AXLE ASSEMBLY-7 TS06312020000 BRACKET ASSEMBLY TS06313010000 BRACKET FRONT BODY ASSEMBLY FT904.32F.001 FRONT DRIVING WHEEL ASSEMBLY FT804.34F.001 REAR DRIVING WHEEL ASSEMBLY FT800.35B.001 TOWING MECHANISM ASSEMBLY TS06371010000 GEARBOX HOUSING ASSEMBLY TD950.372L MAIN/AUXILIARY GEARSHIFT ASSEMBLY-1 TD950.372L MAIN/AUXILIARY GEARSHIFT ASSEMBLY-2 TD950.372L MAIN/AUXILIARY GEARSHIFT ASSEMBLY-3 TD950.372L MAIN/AUXILIARY GEARSHIFT ASSEMBLY-4 TD950.372L MAIN/AUXILIARY GEARSHIFT ASSEMBLY-5 TS06373040000 SIDE CONTROL ASSEMBLY-1 TS06373040000 SIDE CONTROL ASSEMBLY-2 TS06373040000 SIDE CONTROL ASSEMBLY-3 TS06373040000 SIDE CONTROL ASSEMBLY-4 TS06374010000 CREEPER GEAR MECHANISM ASSEMBLY TC05382010000 REAR AXLE CENTRAL TRANSMISSION ASSEMBLY-1 TC05382010000 REAR AXLE CENTRAL TRANSMISSION ASSEMBLY-2 TS06383010000 DIFFERENTIAL LOCK CONTROL MECHANISM ASSEMBLY TD1S384020000K REAR AXLE HOUSING ASSEMBLY-1 TD1S384020000K REAR AXLE HOUSING ASSEMBLY-2 TC05385030000 BREATH ASSEMBLY FT800.39.001 LEFT FINAL TRANSMISSION ASSEMBLY FT800.39.002 RIGHT FINAL TRANSMISSION ASSEMBLY TS06401010000 STEERING PLATE AND STEERING PIPE COLUMN ASSEMBLY TS06402030000 FULL HYDRAULIC STEERING PIPE ASSEMBLY-1 TS06402030000 FULL HYDRAULIC STEERING PIPE ASSEMBLY-2 TD800.411C PTO SHAFT ASSEMBLY TD800.412R PTO GEAR ASSEMBLY-1 TD800.412R PTO GEAR ASSEMBLY-2 TS06413010000 PTO CONTROL MECHANISM ASSEMBLY TC05414010000K PTO BONNET ASSEMBLY TD904.421A TRANSFER CASE ASSEMBLY-1 TD904.421A TRANSFER CASE ASSEMBLY-2 TD904.421A TRANSFER CASE ASSEMBLY-3 TRANSFER CASE TRANSMISSION SHAFT AND COVER ASSEMBLY-1 TRANSFER CASE TRANSMISSION SHAFT AND COVER ASSEMBLY-2 TS06423010000 TRANSFER CASE CONTROL ASSEMBLY TS06433010000 TRAVELLING BRAKE CONTROL MECHANISM ASSEMBLY-1 TS06433010000 TRAVELLING BRAKE CONTROL MECHANISM ASSEMBLY-2 TS06433010000 TRAVELLING BRAKE CONTROL MECHANISM ASSEMBLY-3 TS06435010000 PARKING BRAKE CONTROL MECHANISM ASSEMBLY-1 TS06435010000 PARKING BRAKE CONTROL MECHANISM ASSEMBLY-2 TS06441010000 SEAT INSTALLATION ASSEMBLY TD1C451020000K DRIVER’S CAB ASSEMBLY-1 TD1C451020000K DRIVER’S CAB ASSEMBLY-2 TD1C451020000K DRIVER’S CAB ASSEMBLY-3 TD1C451020000K DRIVER’S CAB ASSEMBLY-4 TD1C451020000K DRIVER’S CAB ASSEMBLY-5 TD1C451020000K DRIVER’S CAB ASSEMBLY-6 TD1C451020000K DRIVER’S CAB ASSEMBLY-7 TD1C451020000K DRIVER’S CAB ASSEMBLY-8 TS06453040000 UPHOLSTERY ASSEMBLY TS06455010000 BACK REAR MUD GUARD DECORATION PART TC03456020000 DASHBOARD ASSEMBLY TC05457070000K FRONT CONNECTING ASSEMBLY TS06458010000 REAR CONNECTING ASSEMBLY TS06459010000 INSULATION LAYER TS06471010000 BONNET ASSEMBLY-1 TS06471010000 BONNET ASSEMBLY-2 TS06473020000 BONNET PNEUMATIC SPRING BRACKET ASSEMBLY TS06473010000 BONNET LOCKING DEVICE ASSEMBLY TS06475030000 BONNET SEAL INSTALLATION ASSEMBLY TD1C476020000K LEFT FRONT MUD GUARD ASSEMBLY TD1C477020000K RIGHT FRONT MUD GUARD ASSEMBLY TS06481120000 ENGINE HARNESS INSTALLATION ASSEMBLY TS06482010000K BODY HARNESS INSTALLATION ASSEMBLY TC05483040000K FRONT LAMP HARNESS INSTALLATION ASSEMBLY TS06484020000K REAR LAMP HARNESS INSTALLATION ASSEMBLY TS06485010000 BATTERY INSTALLATION ASSEMBLY TS06486010000K TOP LIGHT HARNESS INSTALLATION ASSEMBLY TS06487010000 COMBINED INSTRUMENT ASSEMBLY TS06049020000 TOOL BOX INSTALLATION ASSEMBLY TS06501020000 MAIN OIL TANK INSTALLATION ASSEMBLY TS06502020000 AUXILIARY OIL TANK INSTALLATION ASSEMBLY TD800.503A OIL INLET/OUTLET PIPE ASSEMBLY FT800.53.001 TOW MECHANISM ASSEMBLY TS06551080000 LIFTER INSTALLATION ASSEMBLY-1 TS06551080000 LIFTER INSTALLATION ASSEMBLY-2 FT800.56A.001 SUSPENSION ASSEMBLY-1 FT800.56A.001 SUSPENSION ASSEMBLY-2 FT800.56A.001 SUSPENSION ASSEMBLY-3 TD1S581040000K OIL PUMP/PIPE/FILTER ASSEMBLY TD1S582110000K HYDRAULIC SYSTEM EQUIPMENT ASSEMBLY-1 TD1S582110000K HYDRAULIC SYSTEM EQUIPMENT ASSEMBLY-2 TD1S582110000K HYDRAULIC SYSTEM EQUIPMENT ASSEMBLY-3 TD1S582110000K HYDRAULIC SYSTEM EQUIPMENT ASSEMBLY-4 FT800.74B.002 FRONT BALLAST BRACKET ASSEMBLY FT800.74B.001 FRONT BALLAST ASSEMBLY TS06801010000K BRAKE VALVE ASSEMBLY TS06802010000 AIR CYLINDER ASSEMBLY TS06803010000K AIR CONVEYING PIPELINE ASSEMBLY TS06811010000 AIR CONDITION ASSEMBLY-CAB TS06812010000 AIR CONDITION ASSEMBLY-ENGINE FT804.91.001 REAR BALLAST ASSEMBLY

1

1.1

1.2

1.3

2

2

3

3

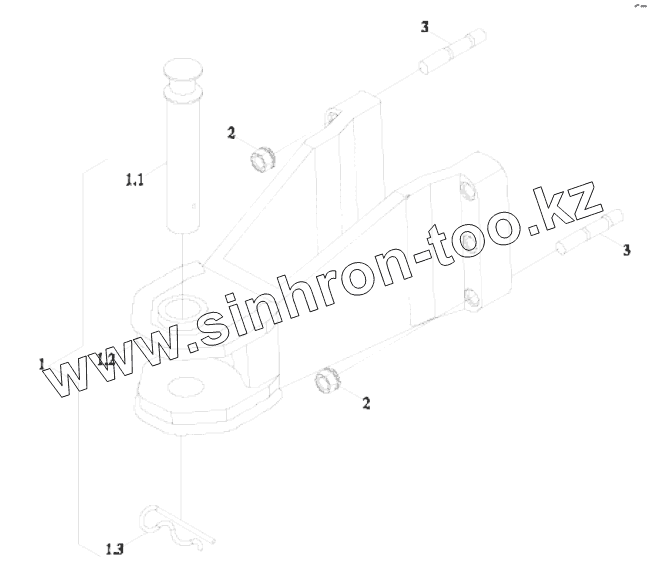

Позиция на иллюстрации	Заводской номер детали		Название детали
FT800.53.001	FT800.53.001		TOW EQUIPMENT ASSEMBLY
1	FT800.53.010		TOW EQUIPMENT ASSEMBLY
1.1	FT800.53.102		POTHOOK PIN
1.2	FT800.53.101		TOW BRACKET
1.3	FT800.53.111		SPRING LOCK PIN
2	SPL-CO-M16-F3		HEXAGON NUT
3	GBT899-GM16-M16X75-10.9-A3L		DOUBLE END STUDS

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
