Каталог запасных частей к технике: Lovol TD-1304. TD2S582010000K HYDRAULIC SYSTEM EQUIPMENT ASSEMBLY-1

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
TD2S582010000K
1
2
3
4
5
6
7
7
8
9
10
11
12
12
13
14
14
15
15.1
15.2
15.3
15.4
16
16
17
18
19
20
21
22
23
24
25
26

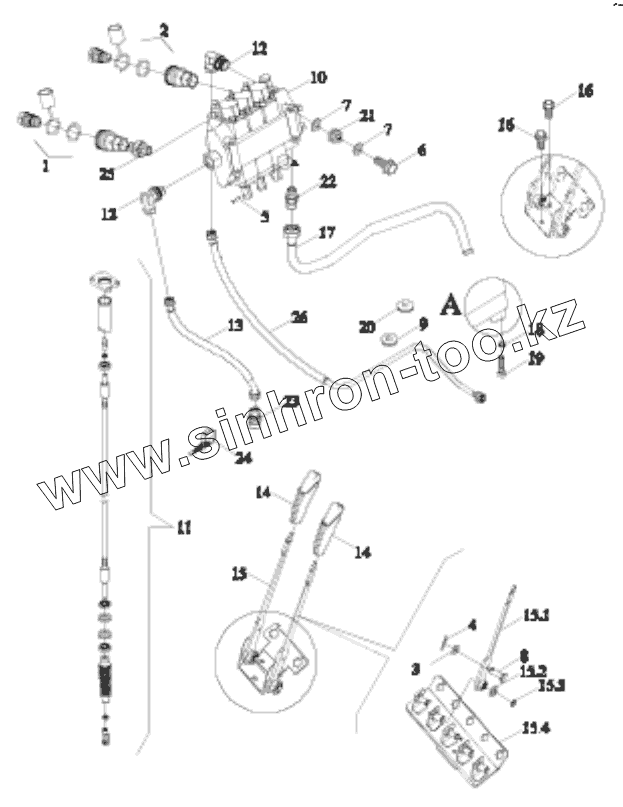

Позиция на иллюстрации Заводской номер детали Название детали
TD2S582010000K TD2S582010000K HYDRAULIC SYSTEM EQUIPMENT ASSEMBLY
1 FT354.58A.030 Quick-change connector
2 TC02580010001K Quick-change connector
3 GBT97.1-6-A3L Plain washer
4 GBT91-2X14-A3L SPLIT PIN
5 GBT119.1-6m6X22-A0P COLUMN PIN
6 GBT16674.1-M10X35-8.8-A3L HEXAGON FLANGE NUT
7 GBT96.1-10-A3L Big Washer
8 TG1654.583C-01 Pin shaft
9 TS04582010027 Rubber ring
10 TS08582030001 MULTI-WAY VALVE ASSEMBLY
11 TS06582130044 SOFT SHAFT MECHANISM ASSEMBLY 1
12 TS06582130050 ADJUSTABLE JOINT
13 TS06582220003 DISTRIBUTOR OIL INLET PIPE ASSEMBLY
14 TS04582010025 Handle head
15 TD2S582050001 MULTI-WAY VALVE CONTROL MECHANISM INSTALLATION ASSEMBLY
15.1 TS06582150039 CONTROL HANDLE WELD
15.2 GBT97.1-14-A0P Plain washer
15.3 GBT894.1-14 Circlip for shaft
15.4 TG3S582010018 INSTALLATION SEAT WELDMENT
16 GBT16674.1-M8X30-8.8-A2L HEXAGON FLANGE NUT
17 TS06582150019 MULTI-WAY VALVE OIL RETURN PIPE WELDMENT
18 GBT93-6-A3L Standard Spring Washer
19 GBT70.1-M6X30-8.8 INNER HEXAGON SCREW
20 TD2S582010001 PLUG COVER
21 TS06582150044 MULTI-WAY VALVE SHOCK ABSORPTION GASKET BLOCK
22 TD924.582N.16 STRAIGHT THREAD JOINT
23 TS06582130049 END STRAIGHT THREAD CONNECTOR BODY
24 Q67405200 Plastic Fastening Strip
25 TD1S582070010K END STRAIGHT THREAD CONNECTOR BODY
26 TS06582220001 MULTI-WAY VALVE OIL INLET PIPE ASSEMBLY
