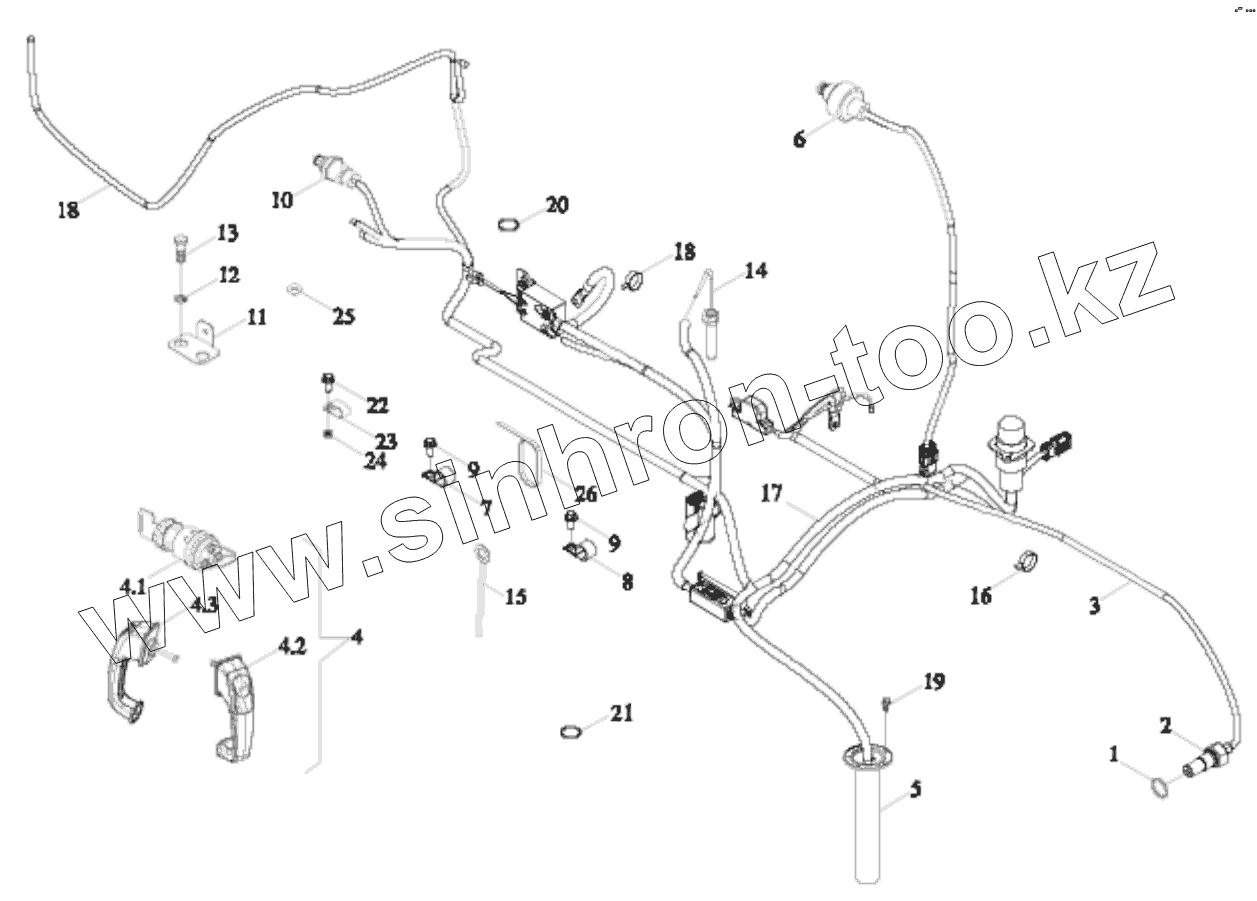

TD2S481010000K
1
2
3
4
4.1
4.2
4.3
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
Позиция на иллюстрации
Заводской номер детали
Название детали
TD2S481010000K
TD2S481010000K
ENGINE HARNESS INSTALLATION ASSEMBLY
1
JBT982-24
COMBINED SEAL GASKET
2
TS06481140003
SWITCH
3
TC05481320002
TRANSITIONAL LINE ASSEMBLY
4
TC03481040013
TWO-LOCK
4.1
TB550.482.3
Ignition Lock
4.2
TS04451013240
LEFT DOOR OUT HANDLE
4.3
TS04451014240
RIGHT DOOR OUT HANDLE
5
TC05481350002
OIL QUANTITY SENSOR ASSEMBLY
6
FT300.48.073a
OIL PRESSURE ALARM
7
FT304.48L.203
HARNESS TIGHTEN CLIP
8
TF1204.481B-01
Harness fastener
9
GBT16674.1-M10X20-8.8-A3L
HEXAGON FLANGE NUT
10
FT65.48.072
Water temperature sensor
11
TH02481010006
FIXINGBRACKET 2
12
GBT93-16-A3L
STANDARD SPRING WASHER
13
GBT5783-M16X30-8.8-A3L
HEXAGON BOLT
14
TS08481010002K
RPM SENSOR
15
TS04481010003
Bonding
16
TG3S488010002
TIE
17
TD2S481010002K
ENGINE HARNESS ASSEMBLY
18
TS06481010011
AIR CONDITION DESICCATOR HARNESS
19
TS04481050005
SCREW
20
Q67405200
Plastic Fastening Strip
21
3203505D9-L
Lock cable ties
22
GBT16674.1-M8X20-8.8-A2L
Hexagon Flange Nut
23
FT65.48.095
Harness Fixing Clamp
24
GBT6177.1-M8-8-A2L
Hexagon Flange Nut
25
TG1204.481-01
ASBESTOS GASKET
26
Q67405400
Plastic fastenging strap
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
