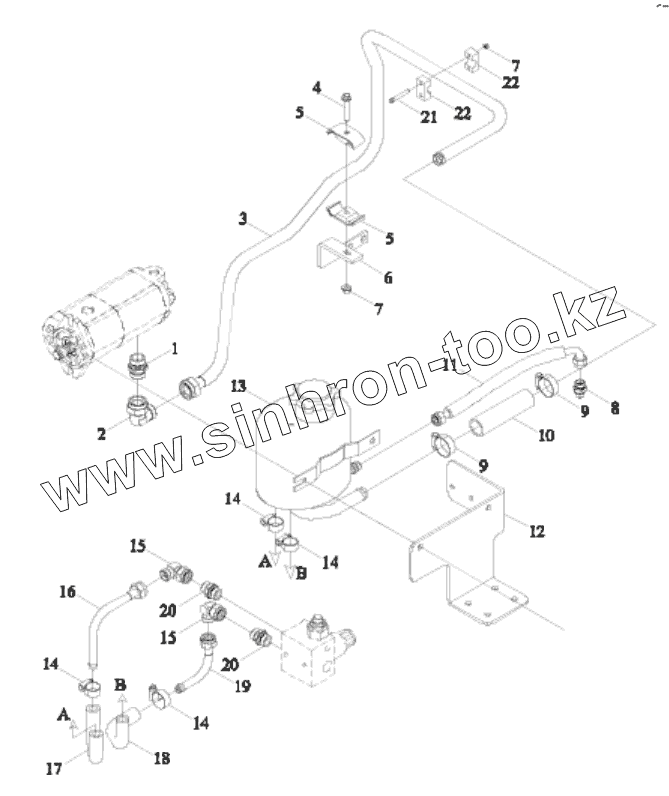

Каталог запасных частей к технике: Lovol TD-1304. TD2S402020000K FULLY HYDRAULIC STEERING ASSEMBLY-4

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
TD2S402020000K(4)
TD2S402020000K(4)
1
2
3
4
5
5
6
7
7
8
9
9
10
11
12
13
14
14
14
14
15
15
16
17
18
19
20
20
21
22
22
Позиция на иллюстрации Заводской номер детали Название детали
TD2S402020000K(4) TD2S402020000K(4) FULLY HYDRAULIC STEERING ASSEMBLY
1 TD924.582N.16 STRAIGHT THREAD JOINT
2 GBT3754-L22 JOINT
3 TS06402290004 STEERING OIL SUCTION STEEL PIPE ASSEMBLY
4 GBT16674.1-M8X50-8.8-A2L HEXAGON FLANGE NUT
5 TS06402290028 OIL PIPE CLAMP AND RUBBER WASHER 22-12
6 TS06402290023 OIL PIPE BRACKET1
7 GBT6177.1-M8-8-A2L(3) HEXAGON FLANGE NUT
8 TC04400010017 END STRAIGHT THREAD CONNECTOR BODY M18-12
9 Q67632 B-Type Worm Transmission Hose Clamp
10 TS06402290060 OIL SUCTION RUBBER HOSE
11 TS06402520004 RETURN PIPE ASSEMBLY
12 TS06402290049 STEERING OIL TANK BRACKET
13 TD2S402070001 STEERING OIL TANK AND BREATHER ASSEMBLY
14 Q67627 B-TYPE WORM TRANSMISSION HOSE CLAMP
15 GBT3754-L15 JOINT
16 TD2S402070005 ELEC. VALVE OIL RETURN STEEL PIPE ASSEMBLY 2
17 TD2S402070008 ELEC. VALVE OIL RETURN RUBBER HOSE 2
18 TD2S402070007 ELEC. VALVE OIL RETURN RUBBER HOSE 1
19 TD2S402070003 ELEC. VALVE OIL RETURN STEEL PIPE ASSEMBLY 1
20 CP5A701020015(2) CONNECTING JOINT
21 GBT16674.1-M6X50-8.8-A2L HEXAGON FLANGE NUT
22 TS06402290034 SINGLE HOLE PIPE CLAMP
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
