Каталог запасных частей к технике: Lovol TD-1304. TD2S212070000 CLUTCH CONTROL MECHANISM ASSEMBLY-1

Тип техники

Марка

Модель

Схема

TD2S212070000

1.1

1.2

1.3

1.4

1.5

1.6

1.7

1.8

1.9

1.10

1.11

1.12

1.13

1.14

1.15

1.16

1.17

1.18

14.1

14.2

16.1

16.2

16.3

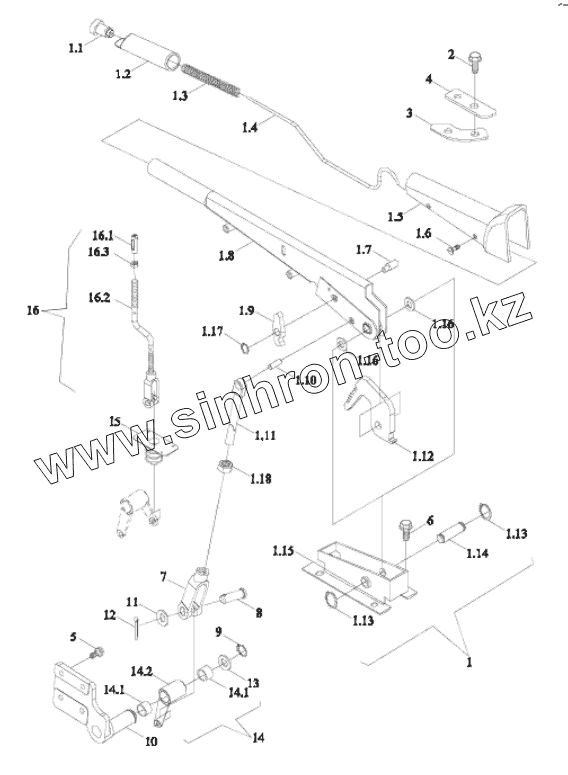

Позиция на иллюстрации	Заводской номер детали	Название детали
TD2S212070000	TD2S212070000	CLUTCH CONTROL MECHANISM ASSEMBLY
1	TD2C212010034	AUXILIARY CLUTCH CONTROL HANDLE ASSEMBLY
1.1	FT800A.21.045	Button Assembly
1.2	FT800A.21.319	Controlling Handle Sleeve
1.3	FT800.43.180	Spring
1.4	FT800A.21.315	Top Rod
1.5	FT800A.21.320	BONNET
1.6	GBT68-M4X10-4.8-A2L	Slotted Screw
1.7	FT800A.21.322	Small Pin Shaft
1.8	TD2C212010033	CONTROLLING HANDLE ASSEMBLY
1.9	FT800A.21.314	Pawl
1.10	FT800A.21.323	Pin
1.11	TD3P212010002	AUXILIARY CLUTCH UPPER PULL ROD ASSEMBLY
1.12	FT800A.43.310	Ratchet Wheel
1.13	GBT894.1-14	Circlip for shaft
1.14	FT800A.21.321	Pin Shaft
1.15	TS06212010003	Fixing Seat Weldment
1.16	TS06212010009	Washer
1.17	GBT894.1-6	Circlip For Shaft
1.18	GBT6171-M14X1.5-LH-8-A3L	HEXAGON NUT, TYPE-1
2	GBT16674.1-M6X16-8.8-A2L	HEXAGON FLANGE NUT
3	TS06212010025	PRESSURE PLATE 2
4	TS06212010024	PRESSURE PLATE 1
5	GBT16674.1-M10X25-8.8-A3L	HEXAGON FLANGE NUT
6	GBT16674.1-M8X20-8.8-A2L	Hexagon Flange Nut
7	FT800.21.240	PULL ROD FRONT FORK
8	GBT882-B10X30-A3L	Pin Shaft
9	GBT894.1-30	CIRCLIP FOR SHAFT
10	TD2S212070003	AUXILIARY CLUTCH RELEASE SUPPORT SHAFT
11	GBT97.1-10-A3L	Flat Washer
12	GBT91-3.2X32-A3L	SPLIT PIN
13	TD2C212010026	WASHER
14	TD2C212010023	AUXILIARY CLUTCH TURN HUB UNIT
14.1	TD2C212010014	COMPOUND SLEEVE
14.2	TD2C212010024	AUXILIARY CLUTCH TURN HUB
15	TS06212020001	SEAL SLEEVE
16	TD3P212010003	LOWER PULL ROD ASSEMBLY
16.1	TA820.212-03	ADJUSTING SLEEVE
16.2	TD3P212010004	PULL ROD WELDMENT
16.3	GBT6171-M14X1.5-8-A3L	HEXAGON NUT, TYPE-1
