  5. TC05433100000 TRAVELLING BRAKE CONTROL MECHANISM ASSEMBLY-1

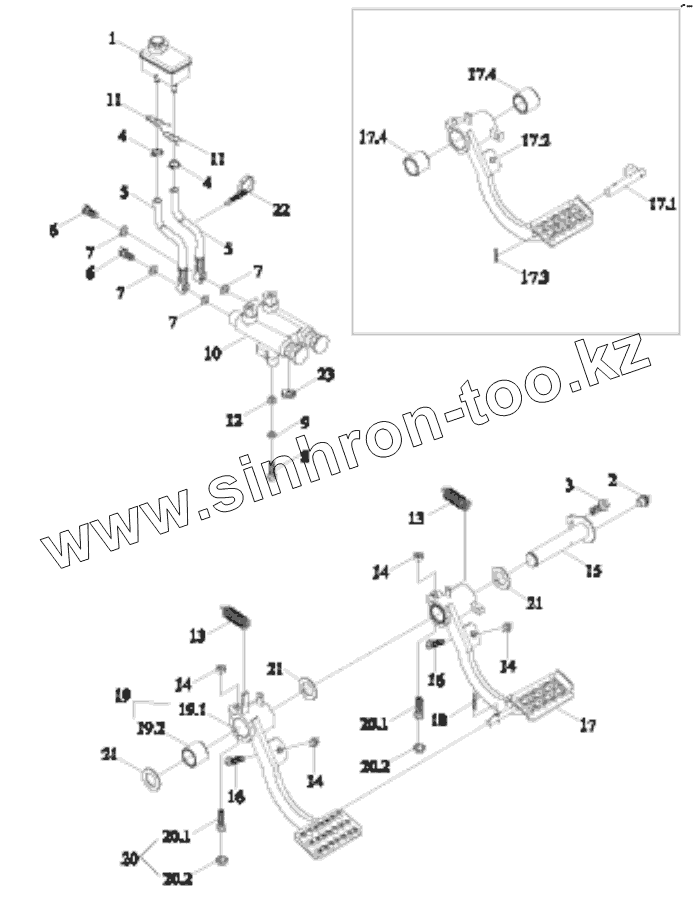

Каталог запасных частей к технике: Lovol TD-1304. TC05433100000 TRAVELLING BRAKE CONTROL MECHANISM ASSEMBLY-1

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
TC05433100000
1
2
3
4
4
5
5
6
6
7
7
7
7
8
9
10
11
11
12
13
13
14
14
14
14
15
16
16
17
17.1
17.2
17.3
17.4
17.4
18
19
19.1
19.2
20
20.1
20.1
20.2
20.2
21
21
21
22
23
Позиция на иллюстрации Заводской номер детали Название детали
TC05433100000 TC05433100000 TRAVELLING BRAKE CONTROL MECHANISM ASSEMBLY
1 TG1204.433.2a BRAKE OIL TANK ASSEMBLY
2 JBT7940.2-90dM8X1 Joint Fill Oil Cup
3 GBT16674.1-M8X16-8.8-A2L Hexagon Flange Nut
4 Q673B115 STEEL STRIP ELASTIC HOOP
5 TC05433030005 OIL CONVEYING HOSE
6 FT800.43.115 OIL PIPE JOINT SCREW
7 JBT982-12 Compound seal washer
8 GBT5783-M10X25-8.8-A3L Hexagon head bolt
9 GBT93-10-A3L Standard Spring Washer
10 TC05433060003 BRAKE PUMP ASSEMBLY
11 TG1204.433-04 CLAMP RING
12 GBT97.1-10-A3L Flat Washer
13 TD800.43-01 Pedal Return Spring
14 GBT6170-M10-8-A3L Hexagon Nut, Style 1
15 TS06433010008 SUPPORT SHAFT WELDMENT
16 FT800.43.103 ADJUSTING SCREW
17 FT800A.43C.014 RIGHT BRAKE ROCKER UNIT
17.1 FT800A.43.065 BRAKE CONNECTING LOCK ROD WELDMENT
17.2 FT800A.43C.016 RIGHT BRAKE ROCKER WELDMENT
17.3 GBT879.1-5X16 SPRING COLUMN PIN
17.4 TG1654.212B.1-01 SLEEVE
18 FT800A.43.401 LOCK PIN
19 FT800A.43C.013 LEFT BRAKE ROCKER UNIT
19.1 FT800A.43C.015 LEFT BRAKE ROCKER WELDMENT
19.2 FT800A.43C.111 SLEEVE
20 FT800.43.030 ADJUSTING SCREW UNIT
20.1 FT800.43.103(2) ADJUSTING SCREW
20.2 FT800.43.210 CUSHIONSLEEVE
21 TF1004.433-01 NYLON SPACER BUSH
22 Q67405200 Plastic Fastening Strip
23 FT800A.43C.230 SEAL SLEEVE
