Каталог запасных частей к технике: Lovol TB-604. TS04802010000K Gas Holder Installation Assembly

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано TB-604 TD-1304 TD-904 TE-354 TE-404 TS-4A504-038K

Схема > Не выбрано TS04110080000K Air Filter System Assembly TS04131090000K Cooling System Assembly TS04132010000 Water Tank Base Plate Mounting Assembly TS04201010000 Hand Throttle Control Assembly TS04202010000 Foot Throttle Control Assembly TS04203010000 Throttle Wire Assembly TS04220020000 Exhaust System Assembly TB550.211B Clutch assembly TS04212060000K Clutch Control Assembly TB604.371 Gearbox Housing Assembly TB604.372T Main Transmission Assembly-1 TB604.372T Main Transmission Assembly-2 TB604.373T Gearbox Assistant Gear Assembly TS04374010000 Gearbox Control Mechanism Assembly-1 TS04374010000 Gearbox Control Mechanism Assembly-2 TS04374010000 Gearbox Control Mechanism Assembly-3 TS04374010000 Gearbox Control Mechanism Assembly-4 Breather assembly Shuttle Shift Assembly Rear Axle Central Transmission Assembly-1 Rear Axle Central Transmission Assembly-2 TS04383010000 Differential Lock Control Mechanism Assembly TC02384040000K Rear Axle Housing Assembly TS04385010000 Shuttle Shift Control Mechanism Assembly TB550.391 Left Final Transmission Assembly TB550.392 Right Final Transmission Assembly TC02411020000K PTO Gear Assembly TB550.412A PTO Shaft Assembly TS04413010000 PTO Control Assembly TB554.421B Transfer Case Housing Assembly TB554.422 Transfer Case Transmission Assembly TS04423010000 Transfer Case Control Assembly TC02311210000 Front Driving Axle Assembly TB554.312 Front Bracket Assembly FT404.32F.001 Front Drive Wheel Assembly FT550.34F.001 Rear Driving Wheel Assembly TC04401080000 Steering Gear and Steering Column Assembly TS04402070000K Fully Hydraulic Steering Assembly-1 TS04402070000K Fully Hydraulic Steering Assembly-2 TB704.431 Left Brake Assembly TB704.432 Right Brake Assembly TS04433010000 Braking System Control Mechanism Assembly-1 TS04433010000 Braking System Control Mechanism Assembly-2 TS04433010000 Braking System Control Mechanism Assembly-3 TS04801010000K Air valve brake assembly TS04802010000K Gas Holder Installation Assembly TS04803050000K Air Conveying Pipeline Assembly TB400.35C Towing Mechanism Installation Assembly TC02530010000K Up-down Adjustable Traction Connector TC02551230000K Lifter Installation Assembly-1 TC02551230000K Lifter Installation Assembly-2 TC02551230000K Lifter Installation Assembly-3 TS04552010000 Raiser Control Assembly TC02553070000K Hydraulic Auxiliary Oil Tank Assembly TC02561060000k Hitch Assembly-1 TC02561060000k Hitch Assembly-2 TS04581070000K Oil Pump/Pipe/Filter Assembly TC02582090000K Multi-way Valve Oil Pipe Assembly TB300.583A Single-way Hydraulic Outlet Assembly 2 TC02440090000K Seat Installation Assembly TS04452010000 Floor Assembly-1 TS04452010000 Floor Assembly-2 TS04452010000 Floor Assembly-3 TS04453020000K Upholstery Assembly TS04454010000 Control Cover Assembly TS04455020000 Rear Mudguard Trimming Assembly TB1S456020000K Dashboard Assembly TS04457010000 Front Connecting Assembly TS04458010000 Rear Connection Assembly TS04461010000K Safety Frame Assembly TS04471030000K Bonnet Assembly TS04471030000K Bonnet Assembly TS04471030000K Bonnet Assembly TS04473010000 Bonnet Locking Device Assembly TB400.475A Left Front Mud Gaurd Assembly TS04475080000K Bonnet Seal Installation Assembly TB400.476A Right Front Mud Guard Assembly TS04490010000 Tool Kit Assembly TB1S501020000K Oil Tank Installation Assembly-1 TB1S501020000K Oil Tank Installation Assembly-2 TS04503010000 Delivery Pipeline Assembly TB1S620010000K Safety Belt Installation Assembly TS04741010000K Front Ballast Frame Assembly TC02740010000K Front Ballast Assembly FT600.91.001 Rear Ballast Assembly TS04481080000K Harness Installation Assembly, Engine TS04482010000K Body Harness Installation Assembly TS04483020000K Front Lamp Harness Installation Assembly TS04484040000K Harness Installation Assembly, Rear Lamp TS04485010000 Battery Installation Assembly TS04487010000 Compound Instrument Assembly Preheating Equipment Assembly

1

2

3

4

5

6

7

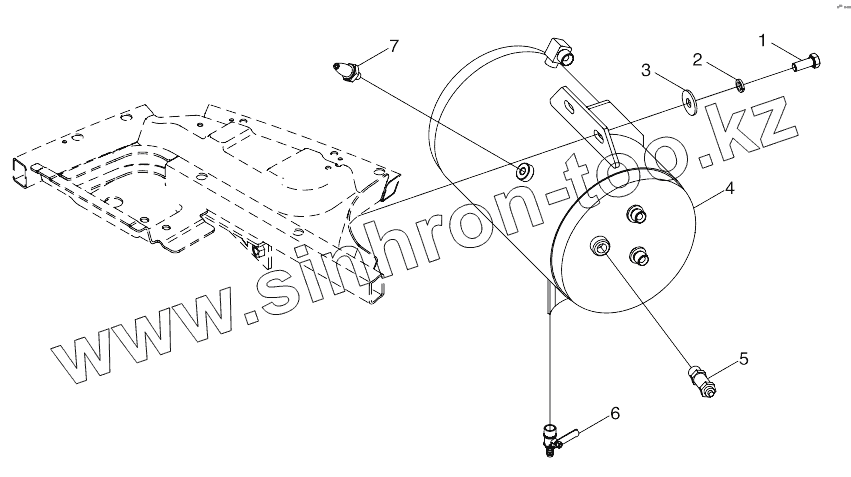

Позиция на иллюстрации	Заводской номер детали		Название детали
TS04802010000K	TS04802010000K		Gas holder installation assembly
1	GBT5783-M12X30-8.8-A3L		Hexagon Bolt
2	GBT93-12-A0P		Washer
3	GBT96.1-12-A0P		Large Washer
4	TS04802010001K		Gas holder weldment
5	FT300.80.034		Safety valve assembly
6	FT300.80.033		Water drainage valve assembly
7	TC02484060001K		Air pressure alarm
