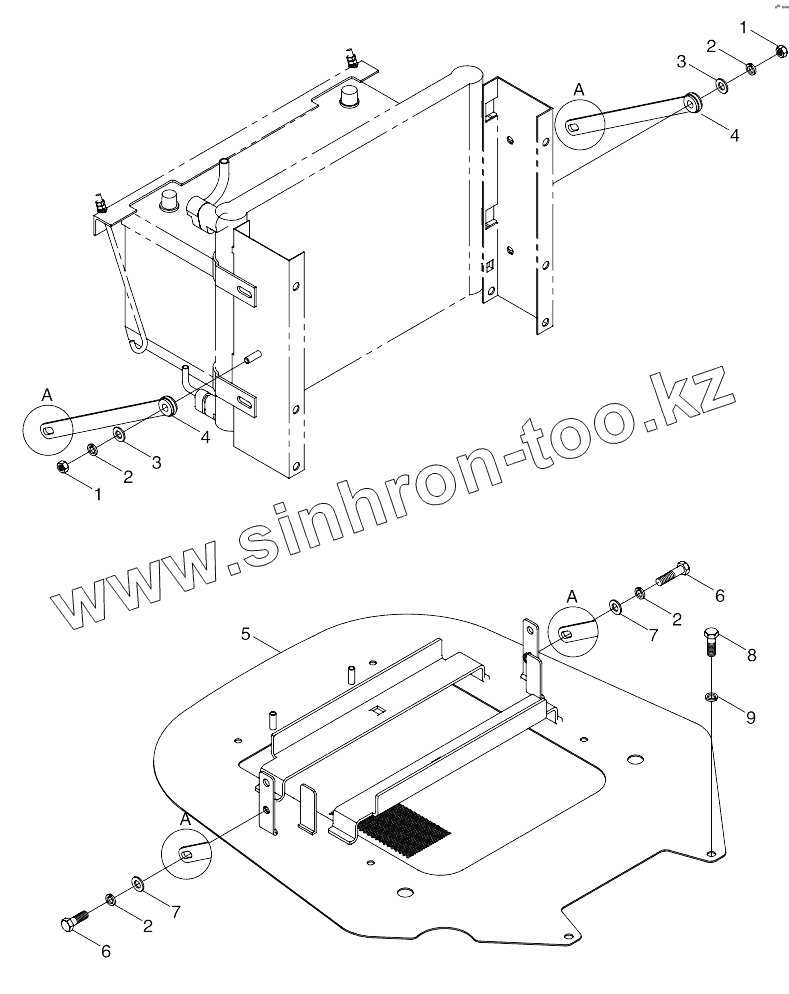

Позиция на иллюстрации
Заводской номер детали
Название детали
TS04132010000
TS04132010000
Water tank base plate mounting assembly
1
GBT6170-M8-8-A2L
Hexagon nut, style 1
2
GBT93-8-A0P
Standard spring washer
3
GBT96.1-8-A0P
Big washer
4
TS04132010005
Pull rod assembly
5
TS04132010001
Water tank base plate welding
6
GBT5783-M8X20-8.8-A2L
Hexagon flange nut
7
GBT97.1-8-A0P
Plain washer
8
GBT5783-M10X20-8.8-A3L
Hexagon flange nut
9
GBT93-10-A0P
Standard spring washer
