Каталог запасных частей к технике: Lovol TB-604. TC02582090000K Multi-way Valve Oil Pipe Assembly

Тип техники

Марка

Модель

Схема

TC02582090000K

2.1

2.2

2.3

2.4

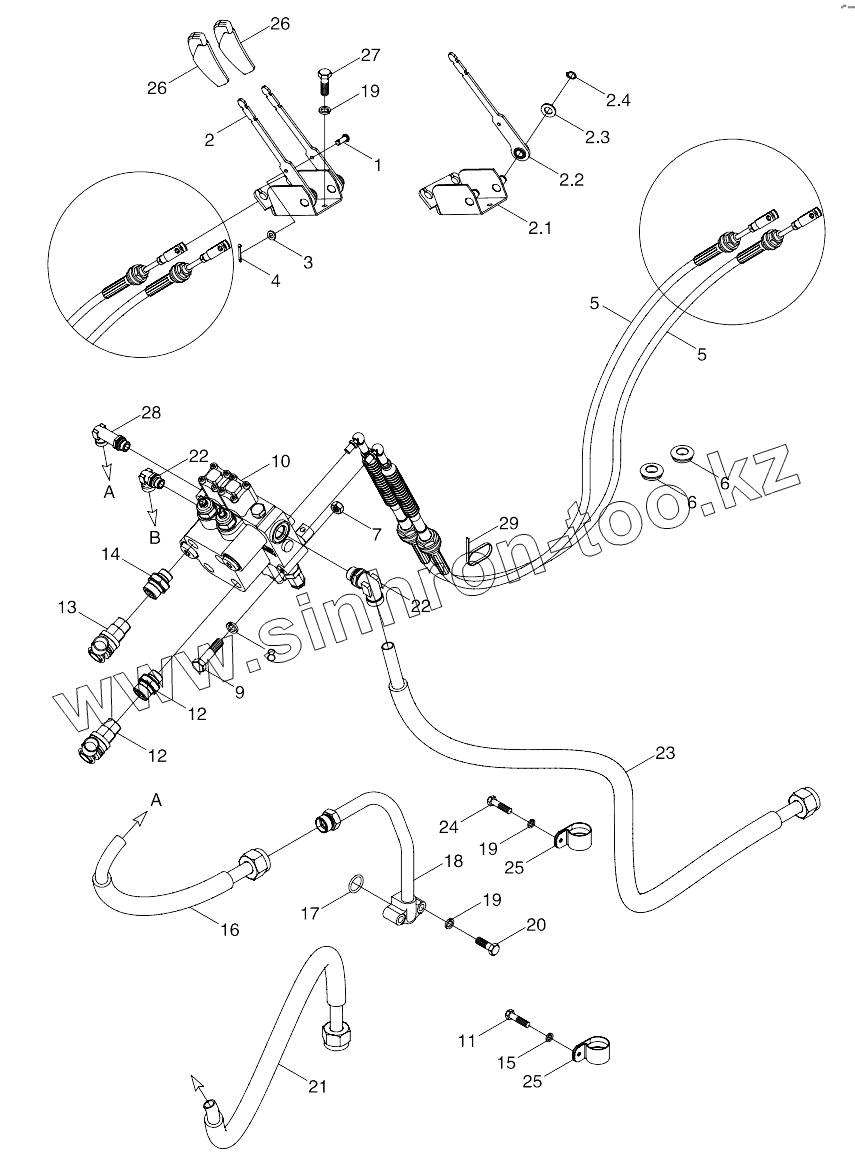

Позиция на иллюстрации	Заводской номер детали	Название детали
TC02582090000K	TC02582090000K	Multi-way valve oil pipe assembly
1	TG1654.583C-01	Pin shaft
2	TS04582010058	Multi-way valve control assembly
2.1	TS04582010059	Installation seat weldment
2.2	TS04582010043	Control handle press
2.3	GBT97.1-14-A0P	Plain washer
2.4	GBT894.1-14	Circlip for shaft
3	GBT97.1-6-A0P	Plain washer
4	GBT91-2X14-A0P	Split pin
5	TS04582020001	Flexible shaft mechanism assembly
6	TS04582010027	Rubber ring
7	GBT6170-M6-8-A2L	Hexagon Nut, Type-1
8	GBT93-6-A0P	Standard spring washer
9	GBT5782-M6X60-8.8-A1L	Hexagon head bolt
10	TC04582140010	Multi-way valve assembly
11	GBT5783-M10X16-8.8-A3L	Hexagon head bolt
12	TC02580010001K	Quick-change connector
13	FT354.58A.030	Quick-change connector
14	TC04582140009	Straight thread connector, body M18 assembly
15	GBT93-10-A0P	Standard spring washer
16	TC04582300012	Lifter oil inlet pipe assembly
17	GBT3452.1-20.0X2.65G	O-ring
18	TC04582300005	Lifter oil inlet steel pipe weldment
19	GBT93-8-A0P	Standard spring washer
20	GBT5783-M8X35-8.8-A2L	Hexagon head bolt
21	TC04582300013	Multi-way valve oil return rubber pipe assembly
22	TC04582140012	Adjustable joint M18-15 assembly
23	TC04582300001	Multi-way valve oil inlet rubber pipe assembly
24	GBT5783-M8X16-8.8-A2L	Hexagon Bolt
25	TD924.582-01	Pipe clip
26	TS04582010025	Handle head
27	GBT5783-M8X20-8.8-A2L	Hexagon flange nut
28	TC04582300011	Adjustable joint M18-15 combination
29	Q67405200	Plastic Fastening Strip
