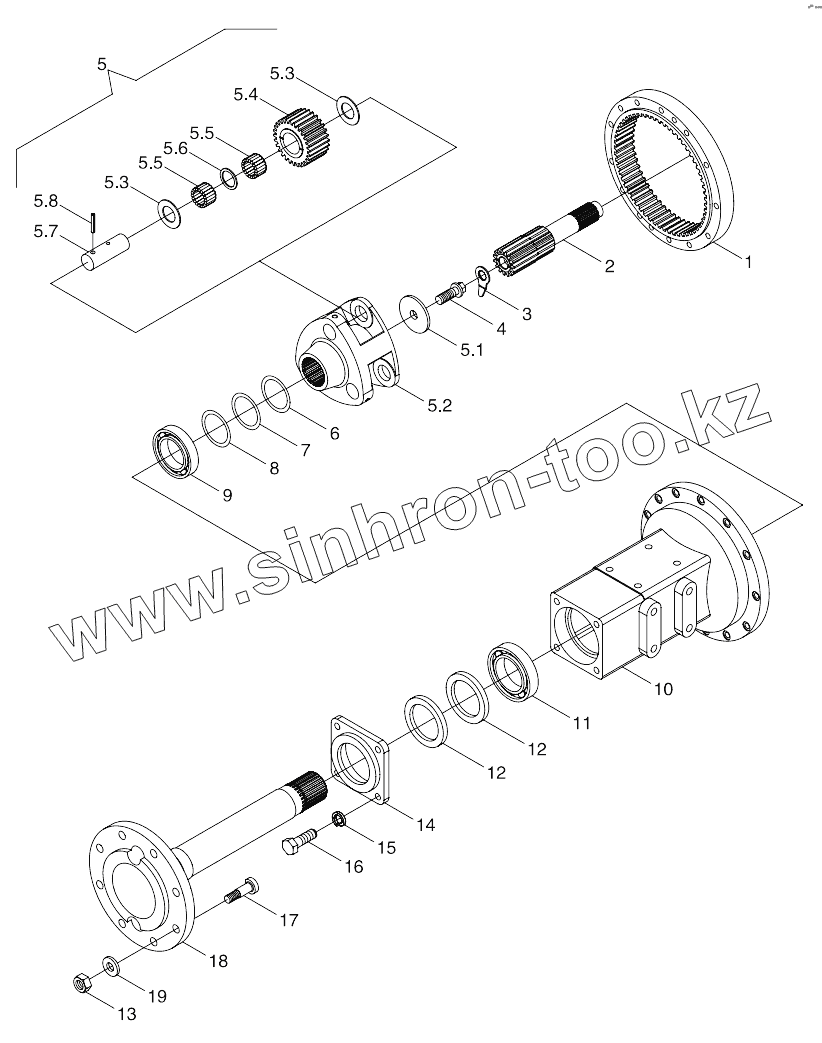

Каталог запасных частей к технике: Lovol TB-604. TB550.391 Left Final Transmission Assembly
1
2
3
4
5
5.1
5.2
5.3
5.3
5.4
5.5
5.5
5.6
5.7
5.8
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| TB550.391 | TB550.391 | Left Final Transmission Assembly | |
| 1 | TB550.391-04 | Final Transmission Gear Ring | |
| 2 | TB550.391-03 | Left Final Transmission Half Shaft | |
| 3 | FT300.39.110 | Driving Shaft Lock Piece | |
| 4 | FT300.39.112 | Driving Shaft Lock Bolt | |
| 5 | TB550.391.1 | Final Transmission Planet Bracket Assembly | |
| 5.1 | FT300.39.111 | Retainer Block | |
| 5.2 | TB550.391.1-01 | Final Transmission Planet Bracket | |
| 5.3 | TB550.391.1-05 | Planet Gear Roll Needle Outer Spacer Ring | |
| 5.4 | TB550.391.1-02 | Final Transmission Planet Gear | |
| 5.5 | GBT309-6X23.8-G2X-3X-5 | Needle | |
| 5.6 | TB550.391.1-04 | Planet Gear Roll Needle Inner Spacer Ring | |
| 5.7 | TB550.391.1-03 | Final Transmission Planet Gear Shaft | |
| 5.8 | QLWZB140-8X32 | Pin | |
| 6 | FT300.39.121 | Adjusting Washer | |
| 7 | FT300.39.122 | Adjusting Washer | |
| 8 | FT300.39.123 | Adjusting Washer | |
| 9 | GBT276-6211 | Deep Groove Ball Bearing | |
| 10 | TB550.391-01 | Left Half Shaft Housing Body | |
| 11 | GBT276-6214 | Deep Groove Ball Bearing | |
| 12 | GBT9877.1-FB80X105X10D | Seal Ring | |
| 13 | GBT6176-M18X1.5-LH-10-A3L | Hexagon Nut, Type-2 | |
| 14 | TB550.391-05 | Half Shaft Oil Seal Seat | |
| 15 | GBT93-12-A0P | Washer | |
| 16 | GBT5783-M12X30-8.8-A3L | Hexagon Bolt | |
| 17 | FT65.38.222 | Rear Hub Bolt | |
| 18 | TB550.391-02 | Driving Shaft | |
| 19 | FT804.31B.120 | Washer |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
