Каталог запасных частей к технике: Lemken Zirkon 9/600K "B". Zirkon 9/600 K "B"

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
2
2
3
3
3
4
5
5
6
7
7
7
7
7
7
8
8
9
10
10
11
11
11
11
11
11
11
11
12
12
12
12
12
13
13
13
13
14
14
14
15
15
17
17
17
17
19
19
19
19
19
19
19
19
19
19
20
20
20
21
21
21
21
21
21
21
21
22
22
22
22
23
23
23
23
23
23

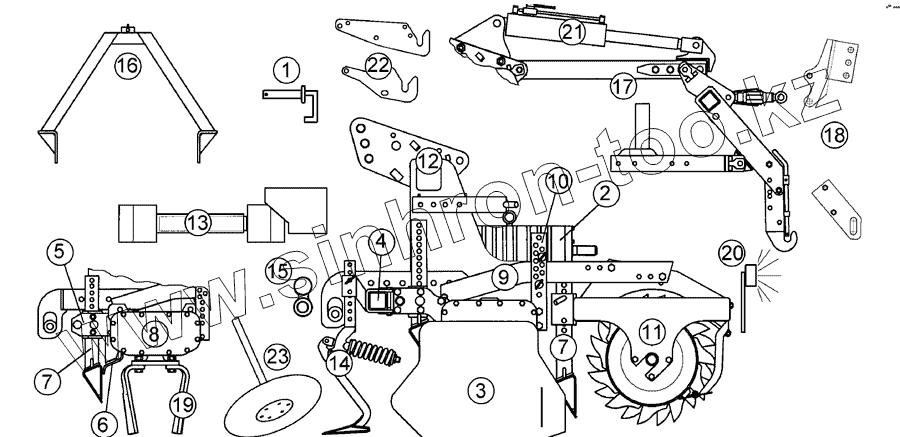

Позиция на иллюстрации Заводской номер детали Название детали
1 313 7921 Top link pin with chain
1 313 7911 Top link pin with chain
2 655 9516 Gear box w. change gears
2 655 9520 Miter gear
2 555 9520 Miter gear
3 608 3956 Side plate extension
3 608 4008 Side plates
3 608 4011 Spring holder for side plates
4 608 6064 Frame carrier f. track scraper
5 608 6068 Protection tube
5 608 6071 Safety device
6 608 6485 Protection bar
7 608 6544 Levelling bar
7 608 6552 Levelling bar, front
7 608 7808 Holder for levelling bar
7 608 7809 Holder for levelling bar
7 608 7812 Holder for levelling bar
8 608 8652 Gear bed
8 608 8653 Gear bed
9 622 2890 Carrier
10 608 4020 Stroke
10 622 0240 Adjuster
11 622 6345 Packer roller
11 622 6717 Trapezering roller
11 622 6728 Trapezering roller
11 622 6734 Trapezering roller
11 622 6739 Trapeze packer roller
11 622 6744 Packer roller, short scraper
11 622 6752 Trapeze packer roller
11 622 6760 Trapeze packer roller
12 608 9094 Unlocking device
12 640 8393 Headstock
12 608 9148 Basic frame
12 608 9136 Basic frame
12 608 9093 Unlocking device
13 670 5055 PTO guard
13 670 5062 PTO guard
13 670 5063 PTO guard
13 670 5065 PTO guard
14 557 2520 Holder for track scraper
14 657 4990 Track scraper with holder
14 557 4995 Track scraper
15 661 1376 Lower link connection
15 661 1378 Lower link connection
17 661 8450 Hydraulic lift linkage
17 661 8451 Hydraulic lift linkage
17 661 8454 Turnbuckle with chain
17 661 8455 Turnbuckle
19 666 1110 Blade tine
19 666 1111 Blade tine
19 666 1112 Blade tine, hardfaced
19 666 1113 Blade tine, hardfaced
19 666 1114 Blade tine
19 666 1115 Blade tine
19 666 1116 Blade tine
19 666 1117 Blade tine
19 666 1118 Blade tine
19 666 1119 Blade tine
20 670 2014 Lighting equipment with boards
20 670 1645 Carrier for light
20 670 2003 Lighting equipment, front
21 675 5200 Hydraulic assembly SA
21 675 5202 Hydraulic assembly SA
21 675 5205 Hydraulic assembly DA
21 675 5207 Hydraulic assembly DA
21 675 5210 Conversion-set lift linkage
21 675 5212 Conversion-set lift limiter
21 675 5218 HY-assembly folding device
21 675 8405 HY-assembly track marker
22 661 8360 Fittings
22 682 2490 Support
22 682 1272 Intermediate bracket
22 661 8364 Fittings
23 582 1248 Axle for track marker
23 582 1276 Additional parts locking dev.
23 657 2432 Feeding disc
23 657 2433 Feeding disc
23 682 1253 Track marker
23 682 1324 Intermediate bracket
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
