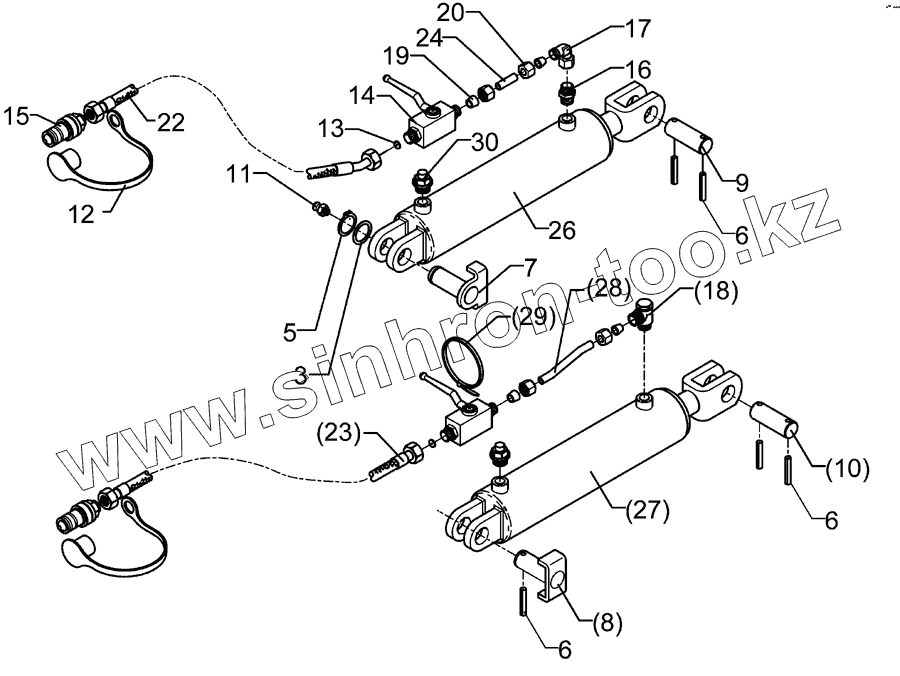

Hydraulic assembly SA 80x320-AHG-ST
Hydraulic assembly SA 90x320-AHG-ST
Hydraulic assembly DA 80x320-AHG-ST
Hydraulic assembly DA 90x320-AHG-ST
Conversion-set lift linkage AHG-Zirkon 6/7/9
Conversion-set lift limiter AHG-HB
Conversion-set HY-DA AHG-FA
Conversion-set HY-SA AHG-FA
HY-assembly track marker Zirkon 400-450
Conversion set track marker 682 1250 in 682 1275
Swivel bracket D35 247 RE A
Swivel bracket D35 247 LI A
Swivel bracket D35 247 RE B
Swivel bracket D35 247 LI B
Feeding disc D450/60x20 RE Zirkon
Feeding disc D450/60x20 LI Zirkon
Feeding disc D450/60x20 RE Zirkon
Feeding disc D450/60x20 LI Zirkon
Track marker Z400+450 D380
Track marker Zirkon 400+450 D380 B
Swivel bracket Zirkon/Quarz
Swivel bracket Zirkon mit Planierbalken vorne
Changing-over, track marker Turm Zirkon 9
Rods for track markers Zirkon/Quarz 400 cm
3
5
6
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
22
23
24
26
27
28
29
30
Позиция на иллюстрации
Заводской номер детали
Название детали
3
305 2050
Shim
5
305 8867
Securing ring
6
309 7000
Expansion bush
7
313 3003
Pin with stop
8
313 3004
Pin with stop
9
313 3011
Pin
10
313 3012
Pin
11
323 6348
Grease nipple
12
375 2121
Cap
13
375 2173
Throttle plate
14
375 2199
Valve
15
375 2718
SVK-socket
16
375 4020
Nipple
17
375 4500
Adjustable angle union
18
375 4311
Union, swivel
19
375 5110
Cutting ring
20
375 5310
Union nut
22
475 2618
High-pressure hose
23
475 2656
High-pressure hose
24
475 8848
Tube
26
575 2266
Ram
27
575 2298
Ram
28
475 8866
Tube
29
325 1180
Hose clip
30
375 2196
Vent plug
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
