Каталог запасных частей к технике: Lemken Zirkon 10/450KA. Three-way pressure balance LU8SSCK-QM22/04

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано Achat 9/400 KA (2004) Achat 9/500 KA (2004) Achat 9/600 KA (2004) Azurit 9 (2018) Dolomit 9 (2010) EuroDiamant 10 (2010) EuroDiamant 10 X (2010) EuroDiamant 8 (2010) EuroGranat 5 (2006) EuroGranat 6 (2006) EuroGranat 7 (2006) EurOpal 5 (2010) EurOpal 5HX (2010) EurOpal 6 (2010) EurOpal 7 (2010) EurOpal 7, EurOpal 7HX (2018) EurOpal 7X (2010) EurOpal 7X, EurOpal 7 HydriX (2018) EurOpal 8 (2010) EurOpal 9 (2010) EuroTitan 10 (2010) EuroTitan 10X (2010) FixPack (2010) Gigant 1000 (2010) Gigant 1000 Smaragd (2010) Gigant 800 (2010) Gigant 800 S (2010) Gigant 800 S Rubin (2006) Gigant 800 Smaragd (2010) Heliodor 9/600KA (2018) Heliodor 9/700KA (2018) Juwel 8M (2018) Karat 9/600 KA (2016) Kristall 9/500KA (2016) Kristall 9/600KA (2016) OptiDisc 25 (2018) Primus 10 (Часть 1) (2017) Primus 10 (Часть 2) (2017) Quarz 7/250 (2010) Quarz 7/250 F (2010) Quarz 7/300 (2010) Quarz 7/300F (2010) Quarz 7/400 (2010) Quarz 7/400F (2010) Quarz 7/400K (2010) Quarz 7/400KA (2010) Quarz 7/500K (2010) Quarz 7/500KA (2010) Quarz 7/600K (2010) Rubin 10/600 KUA (2018) Rubin 10/700 KUA (2018) Rubin 12/400 KUA (A) (2018) Rubin 12/500 KUA (A) (2018) Rubin 12/600 KUA (A) (2018) Rubin 12/700 KUA (2018) Rubin 9/300 U (2004) Rubin 9/400 U (2004) Saphir 7/300 (2010) Saphir 7/400 (2010) Smaragd 7/260 (2010) Smaragd 7/300 (2010) Smaragd 9/300 (2010) Smaragd 9/400 (2010) Smaragd 9/400 (2016) Smaragd 9/400 K (2016) Smaragd 9/400K (2010) Smaragd 9/450K (2010) Smaragd 9/500 K (2016) Smaragd 9/500K (2004) Smaragd 9/600 K (2016) Smaragd 9/600K (2010) Smaragd 9/600KA (2010) Solitair 10/600K (2006) Solitair 12/1000K (2007) Solitair 12/1200K (2008) Solitair 12/1200KD (2018) Solitair 12/5800SW (2018) Solitair 12/800K (2006) Solitair 12/900K (2007) Solitair 8/300 (2004) Solitair 8/300 (2014) Solitair 8/400 (2004) Solitair 9/300 (2004) Solitair 9/400 (2004) Solitair 9/400K (2004) Solitair 9/400KA (2004) Solitair 9/450K (2004) Solitair 9/450KA (2004) Solitair 9/500K (2004) Solitair 9/500KA (2009) Solitair 9/600K (2004) Solitair 9/600KA (2004) System-Kompaktor Gigant 1000 (2010) System-Kompaktor Gigant 800 (2010) System-Kompaktor K450 (2010) System-Kompaktor K450A (2010) System-Kompaktor K500 (2010) System-Kompaktor K500A (2010) System-Kompaktor K600 (2010) System-Kompaktor K600A (2010) System-Kompaktor S300 (2010) System-Kompaktor S400 (2010) System-Korund 300 L (2010) System-Korund 450 L (2010) System-Korund 600 L (2010) System-Korund 750 K (750 L) (2010) System-Korund 900 K (2010) System-Korund 900 L (2010) Thorit 8/300 (2005) Thorit 8/300 Combi-Liner (2004) Thorit 8/400 (2010) Thorit 8/400 Combi-Liner (2004) Thorit 9/400 K (2004) Thorit 9/400 KA (2003) Thorit 9/450 K (2004) Thorit 9/500 K (2004) Thorit 9/500 KA (2003) Thorit 9/600 K (2004) Thorit 9/600 KA (2003) Topas 140-A (2010) Vari-Diamant 10 (2004) Vari-Diamant 10X (2004) Vari-Opal 100 (2014) Vari-Opal 100HX (2014) Vari-Opal 100X (2014) Vari-Opal 160 (2014) Vari-Opal X160 (2014) Vari-Titan 10 (2010) Vari-Turmalin 10 (2005) Vari-Turmalin 10X (2005) Variopack 110DP70 (2010) Variopack 110DP90 (2010) Variopack 110EP90 (2010) Variopack 110FEPK700 (2010) Variopack 80DP70 (2010) Variopack S 110DP70 (2010) VariOpal 5 (2010) VariOpal 7 (2010) VariOpal 7X (2010) VariOpal 8 (2010) VariOpal 8X (2010) VariOpal 9 (2010) VariOpal 9X (2010) Zirkon 10/300 (2010) Zirkon 10/400 (2010) Zirkon 10/400K (2010) Zirkon 10/450 (2010) Zirkon 10/450K (2010) Zirkon 10/450KA (2010) Zirkon 10/500K (2010) Zirkon 10/500KA (2010) Zirkon 10/600KA (2010) Zirkon 7/250 (2010) Zirkon 7/300 (2010) Zirkon 7/400 (2010) Zirkon 9/300 (2010) Zirkon 9/400 (2010) Zirkon 9/600K "B" (2010)

Схема > Не выбрано Zirkon 10/450 KA Ball-shaped coupling K80 M9615 Sol.10 KA Traction loop Zirkon 10KA D58x200 Traction loop Zirkon 10KA D40x200 Traction loop Zirkon 10KA D50x200 Ball-shaped coupling K80 M9615 Sol.10 KA Traction loop Zirkon 10KA D58x200 Traction loop Zirkon 10KA D40x200 Traction loop Zirkon 10KA D50x200 Gear box Zirkon 10/400-600 K Miter gear Zirkon 10 K RE Miter gear Zirkon 10 K LI Gear box Zirkon 10/400-600 K Miter gear Zirkon 10 K Miter gear Zirkon 10 K Side plate extension Zirkon 5x200x384 Side plate Zirkon 10 Frame carrier Zirkon 10/450 K Levelling bar Zirkon 9/450-K Levelling bar, front Zirkon 10/450-K Holder for levelling bar Zirkon 7,9,10 - HI Gear bed Zirkon 10/450-K RE Gear bed Zirkon 10/450-K LI Unlocking device Zirkon 9/400-KA-9/600-KA Basic frame Zirkon 10/400+450-K Stand 60x20x555 Adjuster Zirkon 10/450-K Carrier ZPW420+ZPW500 Zirkon 9 K Carrier Zirkon 9/400-600 K RSTW Tube bar roller RSW D540-2.25 Packer roller ZPW D500-2,25m Trapezering roller TRW D500-225-B-18R Trapeze packer roller TPW D500-225-18R125 Packer roller, short scraper ZPW D500-2,25m Trapeze packer roller TPW D500-225-15R150 Trapeze packer roller TPW D500-225-13R175 Trapeze disc roller TSW D500-225-18R-125 Rubber ring roller GRW D590-225-18R-125 Stroke Zirkon 10/400-600K Headstock Zirkon 10KA Intermediate bearing set 2x1.3/4-6T Zi-10 KA PTO shaft P600-860 1.3/4-6 PTO shaft P600-860 P600-860 1.3/8-21 PTO shaft P600-860 1.3/8-6 PTO guard 1.3/8 PTO guard Zirkon 10-K D162 PTO guard Zirkon 10-K D211 Holder for track scraper FSU 70x70-40x20 Holder for track scraper 70x70 40x20 Zirkon 10 V Track scraper FSU+G25 40x20 Track scraper FSU P50/6 Track scraper with holder long FSU-G25 70x70 Track scraper with holder FSU-G25 70x70 Track scraper with holder FSU-P50/6 Carrier frame Zirkon 10 KA Kupplungsteil FK 150x150x120 (Solitair 9KA) Kupplungsteil FH Zirkon 10KA/Solitair 9KA Hydraulic lift linkage D50x200 L2 Z2 Blade tine SW34 Blade tine SW34P Lighting equipment, front Zirkon 9/KA Control box ELFG104-XXXX Cable form ELFG104-XXXX 7M Cable form 14-p Lighting equipment, front Zirkon 9/KA Lighting equipment, rear KA 150x150 Transport protection Zirkon 9-K Transport protection Zirkon 9-K PTO shaft control, audible Zirkon 9 K + 9 KA Tractor mounting set-0 Operator terminal, cpl. LST-2 Housing CR0016 Set of fittings Zirkon KA PTO shaft control R360 Joystickbox JB-1 Extension 6m-8 Solitronic Control valve L8S-3D/1E Three-way pressure balance LU8SSCK-QM22/04 Valve 6/3 LD8SE4D2525 Seat valve SVH04M878SA-0M14G12 HY-assembly chassis Zirkon 9 KA DZ115x200 HY-pipe assembly Zirkon 9 KA HY-pipe assembly track marker Zirkon 9 KA HY-pipe assembly Zirkon 9 KA HY-assembly lift linkage DZ 90x450 HY-assembly lift linkage DZ 110x450 HY-assembly track marker Zirkon 9/400-450 KA HY-pipe assembly folding Zirkon 9 KA HY-assembly trailer Zirkon 9 KA S-DZ115x200 HY-pipe assembly folding Zirkon 9 KA S HY-pipe assembly track marker Zirkon 9 KA S HY-pipe lifting device Zirkon 9 KA S HY-assembly control valve Zirkon 9 KA S-L8S Hydraulic pipe Zirkon 9 KA HY-pipe seed drill drive Zirkon 9 KA Braking system, hydraulic Zirkon 9 KA 2xEZ 30x110 HY-assembly trailer Zirkon 9 KA LU8S-DZ115x200 HY-assembly track marker Zirkon 9/400-450 KA-US HY-assembly angle adjustment Zirkon 9 KA HY-assembly control valve Zirkon 9 KA S-LU8S Hydraulic assembly Zirkon 10/400+450 KA Braking axle GS12008 55.72.448.000 Running axle GS7008 55.67.001.014 Wheel 8/221/575 Trelleborg 550/60-22.5 12PR/RE Wheel 8/221/575 Trelleborg 550/60-22.5 12PR/LI Wheel 8/221/575 12,5/80-18 12PR AW Wheel 8/221/575 Alliance 700/50-22,5 12PR ET0 Wheel 8/221/575 Alliance 700/50-22,5 12PR ET0 Compressed-air brake Zirkon 9 KA Compressed-air brake Zirkon 9 KA elektronik Axle for track marker D30x595 668A Feeding disc D450/60x20 RE Zirkon Feeding disc D450/60x20 LI Zirkon Track marker 400+450-K D380 Track marker Zirkon 400K+450-K D380 B

1

2

2

2

3

4

5

6

6

7

8

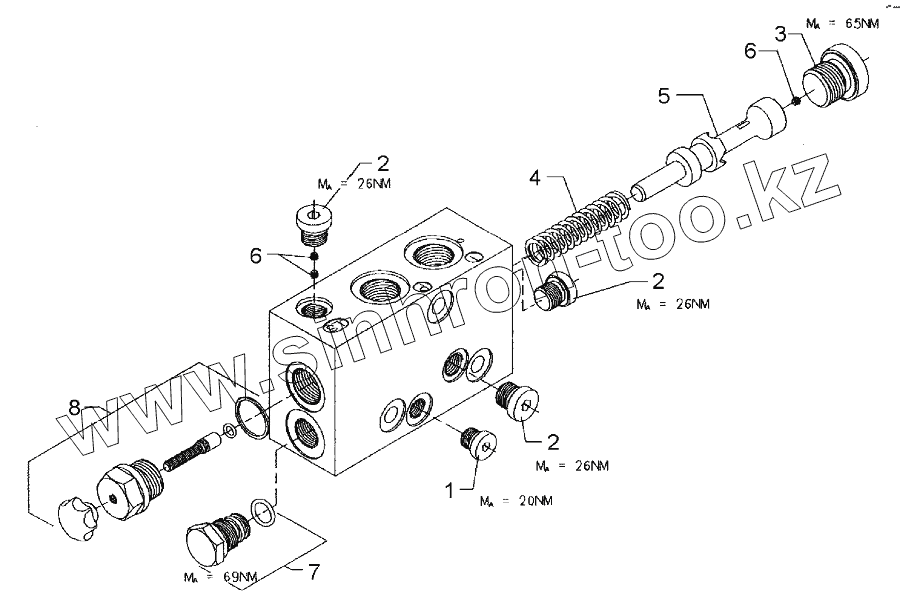

Позиция на иллюстрации	Заводской номер детали		Название детали
1	301 9707		Plug
2	301 9708		Plug
3	301 9711		Plug
4	329 8020		Spring
5	475 6068		Piston
6	575 1127		Nozzle
7	575 1128		Plug, cpl
8	575 1129		Plug, cpl

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
