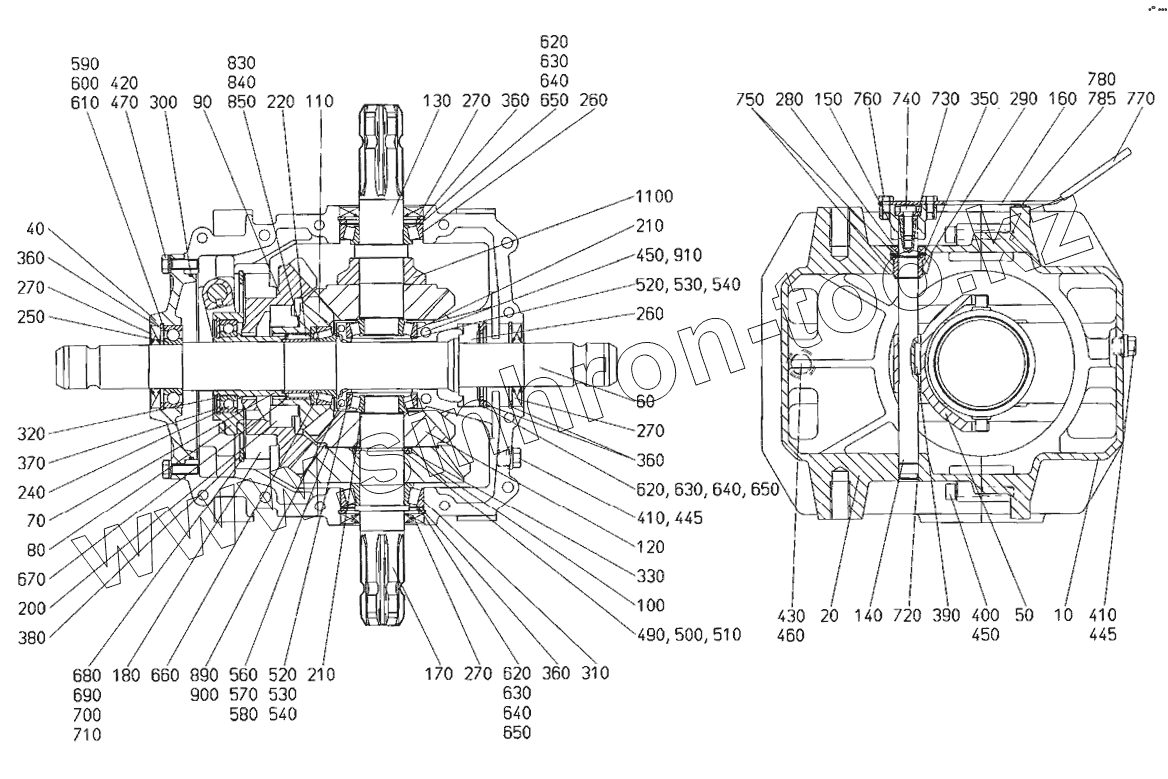

Каталог запасных частей к технике: Lemken Zirkon 10/400K. Gear box Zirkon 10/400-600 K
10
40
50
60
70
80
80
90
100
110
120
140
150
160
170
180
200
210
220
220
240
250
260
260
270
270
270
270
280
290
300
310
320
330
350
360
360
360
360
380
390
400
410
410
420
430
445
445
450
450
460
470
490
500
510
520
520
530
530
540
540
560
570
580
590
600
610
620
620
620
630
630
630
640
640
640
650
650
650
660
670
680
690
700
710
720
730
740
750
760
770
780
785
830
840
850
890
900
910
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 10 | 455 9537 | Gear box cpl. | |
| 40 | 455 9536 | Gear box flange, front | |
| 50 | 455 5506 | Switch lever | |
| 60 | 455 0618 | Transmission shaft | |
| 70 | 455 5502 | Switch element | |
| 80 | 455 0619 | Driven shaft | |
| 90 | 455 1918 | Bevel gear wheel | |
| 100 | 455 1920 | Bevel gear wheel | |
| 110 | 455 1917 | Bevel gear wheel | |
| 120 | 455 1921 | Bevel gear wheel | |
| 140 | 455 0616 | Selector shaft | |
| 150 | 455 0617 | Flange | |
| 160 | 455 5501 | Shift-fork | |
| 170 | 455 0620 | Driven shaft | |
| 180 | 319 9161 | Bearing | |
| 200 | 319 9162 | Bearing | |
| 210 | 319 9015 | Bearing | |
| 220 | 319 8990 | Bearing | |
| 240 | 319 8618 | Bearing | |
| 250 | 319 8610 | Bearing | |
| 260 | 319 9151 | Bearing | |
| 270 | 323 8202 | Oil seal | |
| 280 | 323 8187 | Oil seal | |
| 290 | 317 7839 | Bush | |
| 300 | 375 1319 | O-ring | |
| 310 | 319 9164 | Bearing | |
| 320 | 305 8882 | Securing ring | |
| 330 | 305 8876 | Securing ring | |
| 350 | 305 8894 | Securing ring | |
| 360 | 305 8941 | Securing ring | |
| 370 | 305 8943 | Securing ring | |
| 380 | 305 8963 | Securing ring | |
| 390 | 307 1108 | Adjusting spring | |
| 400 | 301 5815 | Allen screw | |
| 410 | 301 9697 | Plug | |
| 420 | 301 3224 | Screw | |
| 430 | 301 9703 | Plug | |
| 440 | 375 2196 | Vent plug | |
| 443 | 375 2144 | Copper washer | |
| 445 | 375 2145 | Copper washer | |
| 450 | 305 9938 | Spring ring | |
| 460 | 375 2157 | Copper washer | |
| 470 | 305 9884 | Spring ring | |
| 490 | 305 2122 | Shim | |
| 500 | 305 2120 | Shim | |
| 510 | 305 2252 | Supporting washer | |
| 520 | 305 2418 | Shim | |
| 530 | 305 2417 | Shim | |
| 540 | 305 2416 | Shim | |
| 560 | 305 2207 | Shim | |
| 570 | 305 2206 | Shim | |
| 580 | 305 2205 | Shim | |
| 590 | 305 2193 | Shim | |
| 600 | 305 2192 | Shim | |
| 610 | 305 2190 | Shim | |
| 620 | 305 2403 | Shim | |
| 630 | 305 2402 | Shim | |
| 640 | 305 2401 | Shim | |
| 650 | 305 2404 | Supporting washer | |
| 660 | 317 7841 | Distance bush | |
| 670 | 305 2405 | Shim | |
| 680 | 305 2410 | Shim | |
| 690 | 305 2409 | Shim | |
| 700 | 305 2408 | Shim | |
| 710 | 305 2411 | Shim | |
| 720 | 323 0333 | Cover | |
| 730 | 305 8698 | Washer | |
| 740 | 301 5804 | Allen screw | |
| 750 | 305 8823 | Securing ring | |
| 760 | 301 3056 | Screw | |
| 770 | 321 6929 | Handle | |
| 780 | 301 6045 | Allen screw | |
| 785 | 305 8571 | Washer | |
| 830 | 305 2210 | Shim | |
| 840 | 305 2209 | Shim | |
| 850 | 305 2208 | Shim | |
| 860 | 301 9698 | Plug | |
| 870 | 877 1260 | Oil | |
| 890 | 301 6083 | Allen screw | |
| 900 | 305 9882 | Spring ring | |
| 910 | 301 5805 | Allen screw |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
