Каталог запасных частей к технике: Lemken VariOpal 8X. Uni-wheel D35/148/140 VO8 6/205

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
6
7
7
8
8
9
9
9
10
10
10
11
12
13
13
14
15
15
16
16
16
17
17
18
18
20
20
21
21
22
24
25
26
27
28
29
30
32
33
34
34
34
35
36
37
38
39
40
41
42
43
44
45
46
48
49
50
51
52
53
54
55
56
57
58
59
59
60
60
61
61
62
63
64
65
66
67
68
69
70
71
72
73

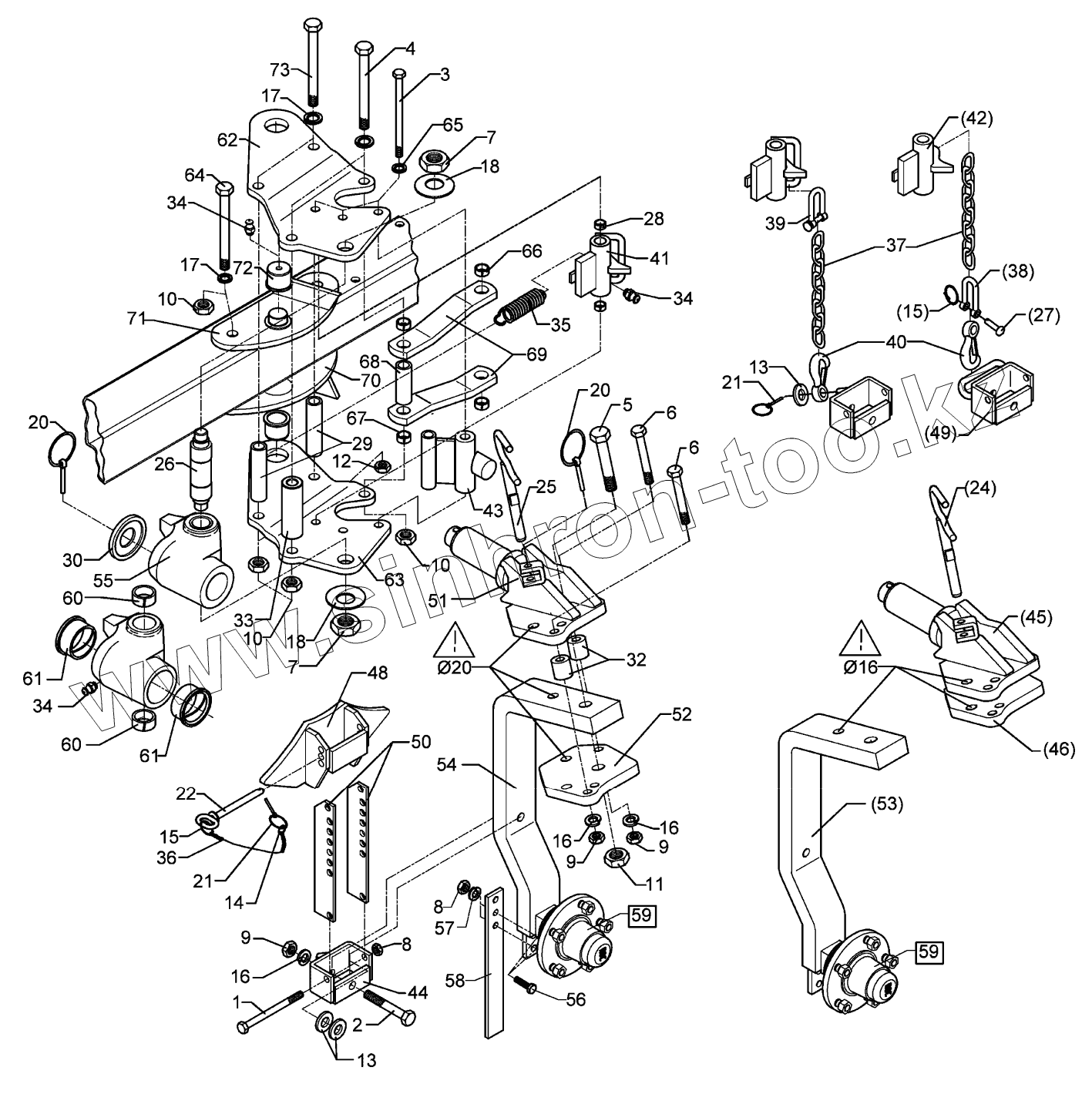

Позиция на иллюстрации Заводской номер детали Название детали
1 301 3497 Bolt
2 301 3918 Bolt
3 301 4118 Bolt
4 301 4523 Bolt
5 301 4646 Bolt
6 301 5370 Bolt
7 303 0956 Nut
8 303 0972 Nut
9 303 0976 Nut
10 303 0977 Nut
11 303 0980 Nut
12 303 0990 Nut
13 305 6162 Washer
14 305 8545 Securing ring
15 305 8551 Securing clip
16 305 9887 Spring ring
17 305 9888 Spring ring
18 305 9889 Spring ring
20 311 9302 Securing pin
21 311 9565 Securing pin
22 313 1213 Pin with grip
24 313 1615 Pin with grip
25 313 1815 Pin with grip
26 313 4018 Pin
27 315 8006 Rivet
28 317 3336 Expansion bush
29 317 6671 Tube
30 317 6907 Ring
32 317 7504 Bush
33 317 7510 Tube
34 323 6348 Grease nipple
35 329 8496 Spring
36 331 6130 Chain
37 331 6246 Chain
38 331 8380 Shackle
39 331 8381 Chain shackle
40 331 9012 Hook
41 448 2598 Holder with pivot
42 448 2603 Locking device
43 448 2605 Stop
44 449 5745 Holder with pivot
45 449 5751 Swivel bearing
46 449 5752 Part of bracket
48 449 5755 Stop
49 449 5756 Holder
50 449 5757 Adjuster plate
51 449 5758 swivel bearing
52 449 5759 Part of bracket
53 449 5754 Wheel stalk with bearing
54 549 1342 Wheel stalk with bearing
55 549 5750 Cross union
56 301 7334 Screw
57 305 9902 Spring ring
58 449 1642 Scraper
59 549 8894 Bearing
60 317 2005 Expansion bush
61 317 9373 Flange bushing
62 449 5772 Bearing plate
63 449 5773 Bearing plate
64 301 4539 Bolt
65 305 6148 Shim
66 317 3348 Expansion bush
67 317 3338 Expansion bush
68 317 6673 Tube
69 449 1711 Rod
70 449 1970 Bearing plate
71 449 1971 Bearing plate
72 317 9309 Flange bushing
73 301 4545 Bolt
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
