642 6772 Wide furrow disc

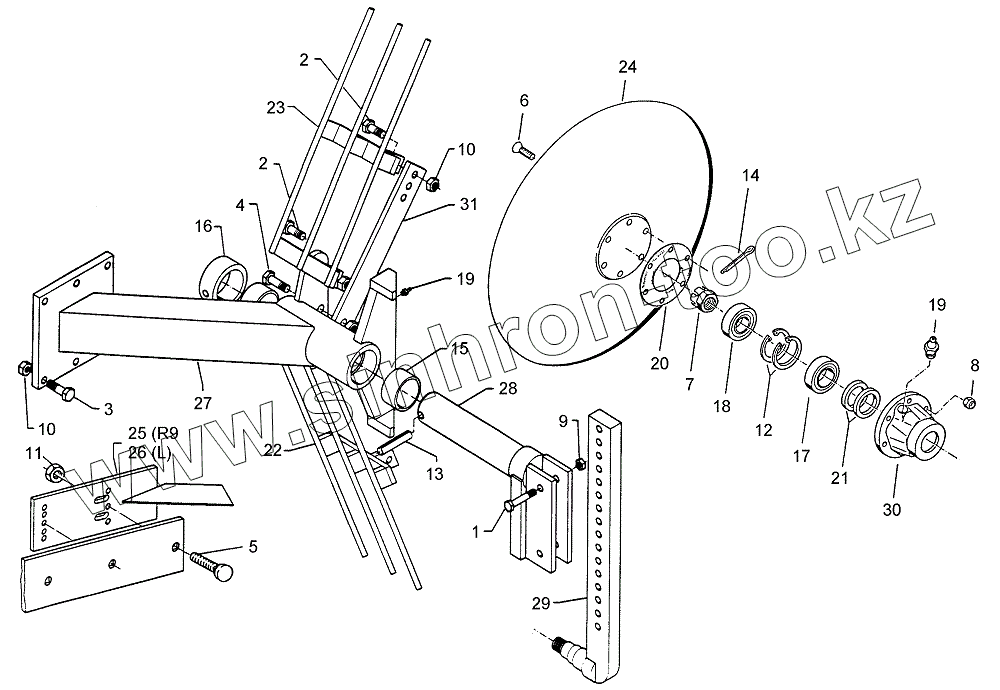

Каталог запасных частей к технике: Lemken Vari-Opal 160. 642 6772 Wide furrow disc
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
AGCO
Amity
CASE IH
DongFeng
Fortschritt
Foton
Franz Kleine
Gaspardo
Great Plains
KRONE
KUHN
Lemken
Lovol
MacDon
Massey Ferguson
New Holland
TIGARBO
Vaderstad
Versatile
Wirax
Агро
Агротехмаш
Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш»)
БЭМЗ
ВгТЗ
Воронежсельмаш
ВТЗ
Гомсельмаш
ДКЗ
ЗАО "Техника-сервис"
ЗиД
КЗК
Кировец-Ландтехник
Клевер
Красная Звезда
Лидагропроммаш
Лидсельмаш
ЛТЗ
Машстройхолдинг
Минитракторы
Мордовагромаш
МТЗ
Навигатор-Новое машиностроение
Нефтекамский автозавод
ПТЗ
Ремком
РСМ
Сибсельмаш
ТеКЗ
ТКЗ
ХЗТСШ
ХТЗ
ЮМЗ
Модель
Не выбрано
Achat 9/400 KA (2004)
Achat 9/500 KA (2004)
Achat 9/600 KA (2004)
Azurit 9 (2018)
Dolomit 9 (2010)
EuroDiamant 10 (2010)
EuroDiamant 10 X (2010)
EuroDiamant 8 (2010)
EuroGranat 5 (2006)
EuroGranat 6 (2006)
EuroGranat 7 (2006)
EurOpal 5 (2010)
EurOpal 5HX (2010)
EurOpal 6 (2010)
EurOpal 7 (2010)
EurOpal 7, EurOpal 7HX (2018)
EurOpal 7X (2010)
EurOpal 7X, EurOpal 7 HydriX (2018)
EurOpal 8 (2010)
EurOpal 9 (2010)
EuroTitan 10 (2010)
EuroTitan 10X (2010)
FixPack (2010)
Gigant 1000 (2010)
Gigant 1000 Smaragd (2010)
Gigant 800 (2010)
Gigant 800 S (2010)
Gigant 800 S Rubin (2006)
Gigant 800 Smaragd (2010)
Heliodor 9/600KA (2018)
Heliodor 9/700KA (2018)
Juwel 8M (2018)
Karat 9/600 KA (2016)
Kristall 9/500KA (2016)
Kristall 9/600KA (2016)
OptiDisc 25 (2018)
Primus 10 (Часть 1) (2017)
Primus 10 (Часть 2) (2017)
Quarz 7/250 (2010)
Quarz 7/250 F (2010)
Quarz 7/300 (2010)
Quarz 7/300F (2010)
Quarz 7/400 (2010)
Quarz 7/400F (2010)
Quarz 7/400K (2010)
Quarz 7/400KA (2010)
Quarz 7/500K (2010)
Quarz 7/500KA (2010)
Quarz 7/600K (2010)
Rubin 10/600 KUA (2018)
Rubin 10/700 KUA (2018)
Rubin 12/400 KUA (A) (2018)
Rubin 12/500 KUA (A) (2018)
Rubin 12/600 KUA (A) (2018)
Rubin 12/700 KUA (2018)
Rubin 9/300 U (2004)
Rubin 9/400 U (2004)
Saphir 7/300 (2010)
Saphir 7/400 (2010)
Smaragd 7/260 (2010)
Smaragd 7/300 (2010)
Smaragd 9/300 (2010)
Smaragd 9/400 (2010)
Smaragd 9/400 (2016)
Smaragd 9/400 K (2016)
Smaragd 9/400K (2010)
Smaragd 9/450K (2010)
Smaragd 9/500 K (2016)
Smaragd 9/500K (2004)
Smaragd 9/600 K (2016)
Smaragd 9/600K (2010)
Smaragd 9/600KA (2010)
Solitair 10/600K (2006)
Solitair 12/1000K (2007)
Solitair 12/1200K (2008)
Solitair 12/1200KD (2018)
Solitair 12/5800SW (2018)
Solitair 12/800K (2006)
Solitair 12/900K (2007)
Solitair 8/300 (2004)
Solitair 8/300 (2014)
Solitair 8/400 (2004)
Solitair 9/300 (2004)
Solitair 9/400 (2004)
Solitair 9/400K (2004)
Solitair 9/400KA (2004)
Solitair 9/450K (2004)
Solitair 9/450KA (2004)
Solitair 9/500K (2004)
Solitair 9/500KA (2009)
Solitair 9/600K (2004)
Solitair 9/600KA (2004)
System-Kompaktor Gigant 1000 (2010)
System-Kompaktor Gigant 800 (2010)
System-Kompaktor K450 (2010)
System-Kompaktor K450A (2010)
System-Kompaktor K500 (2010)
System-Kompaktor K500A (2010)
System-Kompaktor K600 (2010)
System-Kompaktor K600A (2010)
System-Kompaktor S300 (2010)
System-Kompaktor S400 (2010)
System-Korund 300 L (2010)
System-Korund 450 L (2010)
System-Korund 600 L (2010)
System-Korund 750 K (750 L) (2010)
System-Korund 900 K (2010)
System-Korund 900 L (2010)
Thorit 8/300 (2005)
Thorit 8/300 Combi-Liner (2004)
Thorit 8/400 (2010)
Thorit 8/400 Combi-Liner (2004)
Thorit 9/400 K (2004)
Thorit 9/400 KA (2003)
Thorit 9/450 K (2004)
Thorit 9/500 K (2004)
Thorit 9/500 KA (2003)
Thorit 9/600 K (2004)
Thorit 9/600 KA (2003)
Topas 140-A (2010)
Vari-Diamant 10 (2004)
Vari-Diamant 10X (2004)
Vari-Opal 100 (2014)
Vari-Opal 100HX (2014)
Vari-Opal 100X (2014)
Vari-Opal 160 (2014)
Vari-Opal X160 (2014)
Vari-Titan 10 (2010)
Vari-Turmalin 10 (2005)
Vari-Turmalin 10X (2005)
Variopack 110DP70 (2010)
Variopack 110DP90 (2010)
Variopack 110EP90 (2010)
Variopack 110FEPK700 (2010)
Variopack 80DP70 (2010)
Variopack S 110DP70 (2010)
VariOpal 5 (2010)
VariOpal 7 (2010)
VariOpal 7X (2010)
VariOpal 8 (2010)
VariOpal 8X (2010)
VariOpal 9 (2010)
VariOpal 9X (2010)
Zirkon 10/300 (2010)
Zirkon 10/400 (2010)
Zirkon 10/400K (2010)
Zirkon 10/450 (2010)
Zirkon 10/450K (2010)
Zirkon 10/450KA (2010)
Zirkon 10/500K (2010)
Zirkon 10/500KA (2010)
Zirkon 10/600KA (2010)
Zirkon 7/250 (2010)
Zirkon 7/300 (2010)
Zirkon 7/400 (2010)
Zirkon 9/300 (2010)
Zirkon 9/400 (2010)
Zirkon 9/600K "B" (2010)
Схема
>
Не выбрано
313 7911 Contents
321 9121 Tool set
633 7225 Turnover mechanism
633 7226 Turnover mechanism
633 7230 Turnover mechanism
633 7231 Turnover mechanism
633 7235 Turnover mechanism
633 7236 Turnover mechanism
633 7240 Turnover mechanism
633 7241 Turnover mechanism
633 7431 Locking device
602 8201 Basic frame
602 8202 Basic frame
602 8205 Basic frame
602 8206 Basic frame
602 8207 Basic frame
602 8208 Basic frame
602 8209 Basic frame
602 8230 Frame extension
602 8232 Frame extension
313 7911 Top link pin with chain
313 7921 Top link pin with chain
634 1642 Width adjuster
634 3155 Adjustment centre
629 2510 Stand
629 2511 Stand
661 1215 Three point connection
661 1221 Three point connection
661 1240 Three point connection
661 1350 Lower link connection
661 1354 Lower link connection
661 1372 Lower link connection
661 2140 Three point connection
661 2141 Three point connection
661 2190 Lower link quick connection
661 4127 Spacer block
321 9203 Pointer
321 9204 Pointer
549 8846 Wheel 6/100/140 D16
549 8847 Wheel 6/100/140 D16
549 8848 Wheel 6/100/140 D16
549 8849 Wheel 5/94/140 D14
549 8850 Wheel 6/161/205 D18
549 8886 Bearing
549 8893 Bearing
549 8894 Bearing
550 8863 Wheel 6/161/205 D18
648 7710 Depth wheel, lateral
648 7715 Depth wheel, lateral
648 7721 Depth wheel, lateral
649 1290 Uni-wheel
649 1295 Uni-wheel
649 1304 Uni-wheel
649 1315 Uni-wheel
649 1319 Uni-wheel
649 1324 Uni-wheel
649 1332 Uni-wheel 10.0/80-12
373 4150 Extension cable
670 1151 Carrier for light
670 1200 Carrier for light
670 2012 Warning boards with lighting
575 2430 Ram
575 2440 Memory ram
575 2443 Memory ram
575 2444 Memory ram
575 2445 Memory ram
575 2472 Change over ram
575 2475 Switch over ram for VUP
575 2476 Switch over ram for VUP
575 9905 Conversion-set
675 1316 HY-assembly attachment arm
675 1320 HY-assembly attachment arm
675 3322 HY-assembly turnover device
675 3323 HY-turnover device for VUP
675 3324 HY-turnover device for VUP
675 3569 Width adjuster
675 3571 HY-width adjuster Memory
675 3572 Width adjuster
675 3575 HY-width adjuster Memory-VUP
675 3576 Width adjuster
675 3581 Width adjuster
675 3582 HY-width adjuster Memory
675 3586 HY-width adjuster Memory
675 3588 HY-width adjuster Memory
675 3590 Memory connection M+S to P+T
675 3591 Memory connection M+S to P+T
663 8400 Skim stalk
663 8420 Skim stalk
663 8754 Skim stalk
663 8755 Skim stalk
602 2508 Bracket
602 2509 Bracket
602 2510 Bracket
602 2512 Bracket
602 2513 Bracket
464 4000 Leg
464 4015 Leg
464 4020 Leg
699 6000 Bolts for leg
657 9332 Disc arm
657 9333 Disc arm
657 9335 Disc arm
657 9345 Disc arm
657 9346 Disc arm
657 9348 Disc arm
657 9349 Disc arm
657 9350 Disc arm
663 8665 Disc stalk
663 8666 Disc stalk
663 8667 Disc stalk
663 8668 Disc stalk
663 8670 Disc stalk
663 8672 Disc stalk
642 6772 Wide furrow disc
642 6799 Headland disc
622 2594 Attachment arm
1
2
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
19
20
21
22
23
24
25
26
27
28
29
30
31
Позиция на иллюстрации
Заводской номер детали
Название детали
1
301 3406
Bolt
2
301 3734
Screw
3
301 3997
Bolt
4
301 5409
Bolt
5
301 5794
Countersunk bolt
6
301 6123
Countersunk bolt
7
303 0193
Castle nut
8
303 0933
Selflocking nut
9
303 0934
Selflocking nut
10
303 0935
Selflocking nut
11
303 1013
Nut
12
305 8924
Securing ring
13
309 3339
Expansion bush
14
311 7613
Peg
15
317 2035
Expansion bush
16
317 8660
Adjusting ring
17
319 9116
Bearing
18
319 9166
Bearing
19
323 6345
Grease nipple
20
323 7641
Seal
21
323 8032
Oil seal
22
347 7126
Tail piece
23
347 7127
Tail piece
24
349 0462
Hollow disc
25
349 6490
Knife
26
349 6491
Knife
27
442 6772
Frame
28
442 7135
Stalk guiding
29
442 7150
Leg
30
447 8882
Hub
31
469 4975
Support
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
