Каталог запасных частей к технике: Lemken System-Korund 900 L. System-Korund 900L
1
1
1
2
2
4
5
5
5
5
5
5
5
5
5
5
5
5
5
5
6
6
6
6
7
7
7
7
7
7
8
8
10
10
11
11
11
11
11
11
13
13
13
13
13
13
13
13
13
14
14
15
15

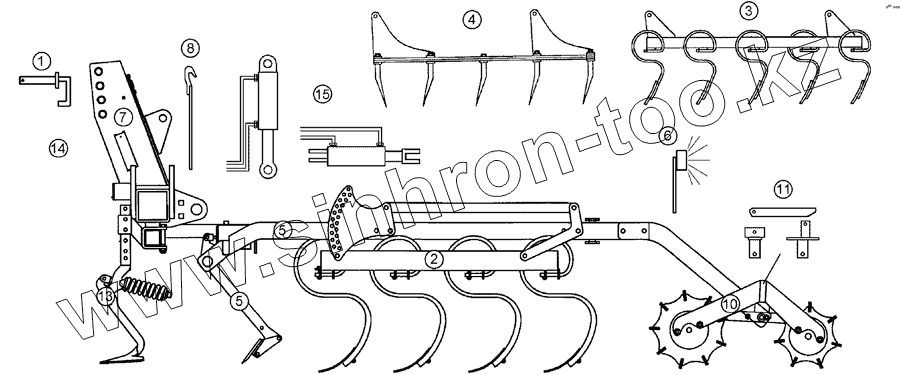

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 313 7921 | Top link pin with chain | |
| 1 | 313 7927 | Top link pin with chain | |
| 1 | 313 7911 | Top link pin with chain | |
| 2 | 515 5530 | Harrow section | |
| 2 | 515 5531 | Harrow section | |
| 3 | 515 5539 | Harrow section | |
| 3 | 515 5538 | Harrow section | |
| 3 | 515 5537 | Harrow section | |
| 3 | 515 5536 | Harrow section | |
| 3 | 515 5535 | Harrow section | |
| 4 | 515 5540 | Harrow section | |
| 5 | 615 5530 | Harrow section | |
| 5 | 615 5540 | Harrow section | |
| 5 | 615 5539 | Harrow section | |
| 5 | 615 5538 | Harrow section | |
| 5 | 615 5537 | Harrow section | |
| 5 | 615 5536 | Harrow section | |
| 5 | 615 5535 | Harrow section | |
| 5 | 615 5532 | Harrow section | |
| 5 | 615 5531 | Harrow section | |
| 5 | 522 6010 | Frame long for harrow section | |
| 5 | 522 2853 | Conversion-set for carrier | |
| 5 | 522 2820 | Bar | |
| 5 | 522 2819 | Bar | |
| 6 | 570 2064 | Set of cables | |
| 6 | 670 2020 | Lighting equipment with boards | |
| 6 | 670 2062 | Cable set with carrier | |
| 6 | 670 2065 | Cable set with carrier | |
| 7 | 610 6321 | Basic frame | |
| 7 | 640 1133 | Extension for headstock | |
| 7 | 629 4403 | Stand | |
| 7 | 610 7272 | Steering linkage | |
| 7 | 610 6328 | Basic frame | |
| 7 | 610 7276 | Linkage | |
| 8 | 617 8146 | Locking device | |
| 8 | 617 8147 | Hydraulic locking device | |
| 10 | 622 6120 | Tooth bar crumbler | |
| 10 | 622 6121 | Tube-tooth bar roller | |
| 11 | 622 6130 | Locking device | |
| 11 | 622 6137 | Locking device | |
| 11 | 622 6136 | Locking device | |
| 11 | 622 6131 | Locking device | |
| 11 | 622 6129 | Locking device | |
| 11 | 622 6124 | Locking device | |
| 13 | 557 2520 | Holder for track scraper | |
| 13 | 657 5007 | Track scraper with holder | |
| 13 | 657 5006 | Track scraper with holder | |
| 13 | 657 4998 | Track scraper with holder | |
| 13 | 657 4990 | Track scraper with holder | |
| 13 | 557 5007 | Track scraper | |
| 13 | 557 5006 | Track scraper | |
| 13 | 557 5001 | Track scraper | |
| 13 | 557 4995 | Track scraper | |
| 14 | 661 1354 | Lower link connection | |
| 14 | 661 1372 | Lower link connection | |
| 15 | 675 4313 | HY-assembly folding device | |
| 15 | 675 7029 | HY-assembly unlocking device |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
