Каталог запасных частей к технике: Lemken System-Korund 900 K. System-Korund 900K

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
3
4
6
6
6
6
6
6
6
6
7
7
7
7
8
8
8
8
8
9
10
10
10
11
11
12
13
13
13
14
15
15
15
15
15
15
15
15
15
16
16
17
17

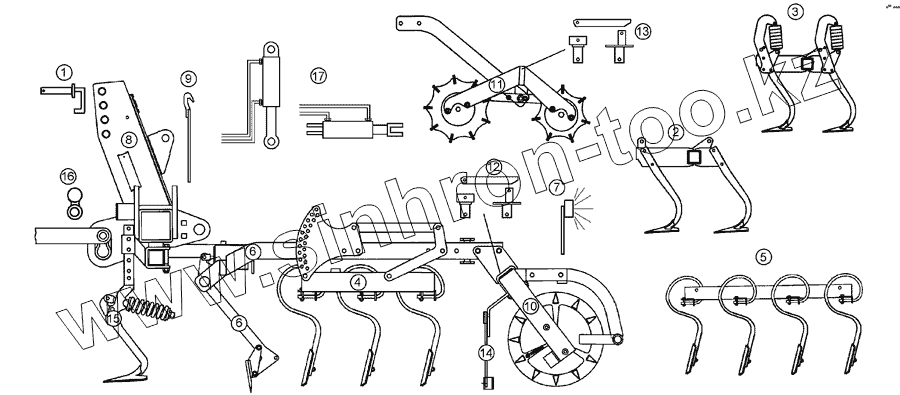

Позиция на иллюстрации Заводской номер детали Название детали
1 313 7921 Top link pin with chain
1 313 7911 Top link pin with chain
2 515 5505 Harrow section
3 515 5506 Harrow section
4 515 5525 Harrow section
6 522 2819 Bar
6 522 2820 Bar
6 522 2853 Conversion-set for carrier
6 522 6009 Frame short for harrow section
6 615 5505 Harrow section
6 615 5506 Harrow section
6 615 5525 Harrow section
7 570 2064 Set of cables
7 670 2065 Cable set with carrier
7 670 2062 Cable set with carrier
7 670 2020 Lighting equipment with boards
8 610 6321 Basic frame
8 610 6328 Basic frame
8 610 7272 Steering linkage
8 610 7276 Linkage
8 629 4403 Stand
9 617 8146 Locking device
10 622 6115 CRP roller
10 622 6117 Tube bar roller
10 622 6116 Nockenring roller
11 622 6120 Tooth bar crumbler
11 622 6121 Tube-tooth bar roller
12 622 6129 Locking device
13 622 6130 Locking device
13 622 6136 Locking device
13 622 6137 Locking device
14 622 6524 Levelling tines with carrier
15 557 5001 Track scraper
15 657 5007 Track scraper with holder
15 657 5006 Track scraper with holder
15 657 4998 Track scraper with holder
15 657 4990 Track scraper with holder
15 557 5007 Track scraper
15 557 5006 Track scraper
15 557 4995 Track scraper
15 557 2520 Holder for track scraper
16 661 1354 Lower link connection
16 661 1372 Lower link connection
17 675 4313 HY-assembly folding device
17 675 7029 HY-assembly unlocking device
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
