Каталог запасных частей к технике: Lemken System-Kompaktor K500. System-Kompaktor K 500
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
3
3
3
3
3
3
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
6
6
7
7
7

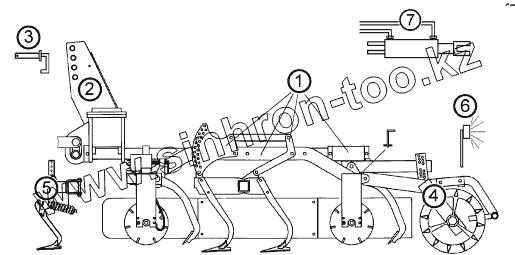

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 622 6172 | Kompaktor section | |
| 1 | 622 6159 | Kompaktor section | |
| 1 | 622 6160 | Kompaktor section | |
| 1 | 622 6161 | Kompaktor section | |
| 1 | 622 6162 | Kompaktor section | |
| 1 | 622 6163 | Kompaktor section | |
| 1 | 622 6164 | Kompaktor section | |
| 1 | 622 6165 | Kompaktor section | |
| 1 | 622 6166 | Kompaktor section | |
| 1 | 622 6167 | Kompaktor section | |
| 1 | 622 6168 | Kompaktor section | |
| 1 | 622 6169 | Kompaktor section | |
| 1 | 622 6170 | Kompaktor section | |
| 1 | 622 6171 | Kompaktor section | |
| 1 | 515 5505 | Harrow section | |
| 1 | 622 6173 | Kompaktor section | |
| 1 | 622 6174 | Kompaktor section | |
| 1 | 622 6175 | Kompaktor section | |
| 1 | 622 6176 | Kompaktor section | |
| 1 | 622 6177 | Kompaktor section | |
| 1 | 622 6178 | Kompaktor section | |
| 1 | 622 6179 | Kompaktor section | |
| 1 | 622 8214 | Adjustment for cutting bar | |
| 1 | 623 5892 | Stone devider | |
| 1 | 657 0520 | Leaf spring | |
| 1 | 657 0524 | Shield | |
| 1 | 657 0527 | Shield | |
| 1 | 622 6157 | Kompaktor section | |
| 1 | 622 6158 | Kompaktor section | |
| 1 | 515 5502 | Harrow section | |
| 1 | 515 5506 | Harrow section | |
| 1 | 515 5508 | Harrow section | |
| 1 | 515 5512 | Harrow section | |
| 1 | 515 5515 | Harrow section | |
| 1 | 515 5516 | Harrow section | |
| 1 | 515 5517 | Harrow section | |
| 1 | 515 5518 | Harrow section | |
| 1 | 522 6020 | Crumbler frame | |
| 1 | 522 6021 | Crumbler frame | |
| 1 | 522 6022 | Crumbler frame | |
| 1 | 522 6023 | Crumbler frame | |
| 1 | 522 6024 | Crumbler frame | |
| 1 | 522 6025 | Crumbler frame | |
| 1 | 527 5601 | Trip device | |
| 1 | 622 2860 | Stone protection bar | |
| 1 | 622 2862 | Stone protection bar | |
| 1 | 622 6150 | Kompaktor section | |
| 1 | 622 6151 | Kompaktor section | |
| 1 | 622 6152 | Kompaktor section | |
| 1 | 622 6153 | Kompaktor section | |
| 1 | 622 6154 | Kompaktor section | |
| 1 | 622 6155 | Kompaktor section | |
| 1 | 622 6156 | Kompaktor section | |
| 2 | 610 6306 | Basic frame | |
| 3 | 313 7921 | Top link pin with chain | |
| 3 | 661 6160 | Depth limiter | |
| 3 | 661 1380 | Lower link connection | |
| 3 | 661 1354 | Lower link connection | |
| 3 | 640 1133 | Extension for headstock | |
| 3 | 661 1372 | Lower link connection | |
| 4 | 622 8269 | Trapezering roller | |
| 4 | 622 8268 | Trapezering roller | |
| 4 | 622 8267 | Nockenring roller | |
| 4 | 622 8266 | Nockenring roller | |
| 4 | 622 8265 | Tube bar roller | |
| 4 | 622 8263 | CRP roller | |
| 4 | 622 8262 | CRP roller | |
| 4 | 622 8261 | CRP roller | |
| 4 | 622 8260 | CRP roller | |
| 4 | 622 8264 | Tube bar roller | |
| 5 | 657 2635 | Holder | |
| 5 | 657 4999 | Spurlockerer mit Halter | |
| 5 | 657 4995 | Spurlockerer mit Halter | |
| 5 | 657 2636 | Holder | |
| 5 | 557 5001 | Track scraper | |
| 5 | 557 4995 | Track scraper | |
| 5 | 557 2510 | Holder for track scraper | |
| 6 | 670 1627 | Carrier for light | |
| 6 | 670 2011 | Lighting equipment with boards | |
| 7 | 675 4250 | HY-assembly folding device | |
| 7 | 675 5448 | HY-pipe assembly folding | |
| 7 | 675 7103 | HY-pipe assembly cutting bar |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
