Каталог запасных частей к технике: Lemken System-Kompaktor K450. System-Kompaktor K 450
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
3
3
3
3
3
3
4
4
4
4
4
4
5
5
5
5
5
5
6
6
7
7
7

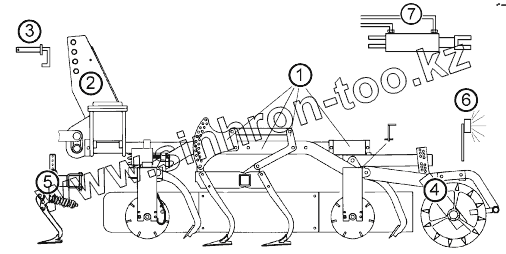

| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 515 5505 | Harrow section | |
| 1 | 657 0527 | Shield | |
| 1 | 657 0524 | Shield | |
| 1 | 657 0520 | Leaf spring | |
| 1 | 622 8214 | Adjustment for cutting bar | |
| 1 | 622 6173 | Kompaktor section | |
| 1 | 622 6172 | Kompaktor section | |
| 1 | 622 6171 | Kompaktor section | |
| 1 | 622 6170 | Kompaktor section | |
| 1 | 622 6169 | Kompaktor section | |
| 1 | 622 6168 | Kompaktor section | |
| 1 | 622 6158 | Kompaktor section | |
| 1 | 622 6157 | Kompaktor section | |
| 1 | 622 6156 | Kompaktor section | |
| 1 | 522 6022 | Crumbler frame | |
| 1 | 622 6155 | Kompaktor section | |
| 1 | 515 5502 | Harrow section | |
| 1 | 515 5506 | Harrow section | |
| 1 | 515 5508 | Harrow section | |
| 1 | 522 6020 | Crumbler frame | |
| 1 | 522 6024 | Crumbler frame | |
| 1 | 527 5601 | Trip device | |
| 1 | 622 2860 | Stone protection bar | |
| 1 | 622 6150 | Kompaktor section | |
| 1 | 622 6151 | Kompaktor section | |
| 1 | 622 6152 | Kompaktor section | |
| 1 | 622 6153 | Kompaktor section | |
| 1 | 622 6154 | Kompaktor section | |
| 2 | 610 6305 | Basic frame | |
| 2 | 640 1133 | Extension for headstock | |
| 3 | 661 1372 | Lower link connection | |
| 3 | 661 6160 | Depth limiter | |
| 3 | 661 1380 | Lower link connection | |
| 3 | 661 1350 | Lower link connection | |
| 3 | 313 7921 | Top link pin with chain | |
| 3 | 661 1354 | Lower link connection | |
| 4 | 622 8260 | CRP roller | |
| 4 | 622 8262 | CRP roller | |
| 4 | 622 8264 | Tube bar roller | |
| 4 | 622 8266 | Nockenring roller | |
| 4 | 622 8268 | Trapezering roller | |
| 4 | 623 5892 | Stone devider | |
| 5 | 557 4995 | Track scraper | |
| 5 | 657 4999 | Spurlockerer mit Halter | |
| 5 | 657 4995 | Spurlockerer mit Halter | |
| 5 | 657 2634 | Holder | |
| 5 | 557 5001 | Track scraper | |
| 5 | 557 2510 | Holder for track scraper | |
| 6 | 670 1627 | Carrier for light | |
| 6 | 670 2011 | Lighting equipment with boards | |
| 7 | 675 4247 | HY-assembly folding device | |
| 7 | 675 5448 | HY-pipe assembly folding | |
| 7 | 675 7103 | HY-pipe assembly cutting bar |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
