Каталог запасных частей к технике: Lemken Solitair 9/400. Partly width switch off 2-TB

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано Achat 9/400 KA (2004) Achat 9/500 KA (2004) Achat 9/600 KA (2004) Azurit 9 (2018) Dolomit 9 (2010) EuroDiamant 10 (2010) EuroDiamant 10 X (2010) EuroDiamant 8 (2010) EuroGranat 5 (2006) EuroGranat 6 (2006) EuroGranat 7 (2006) EurOpal 5 (2010) EurOpal 5HX (2010) EurOpal 6 (2010) EurOpal 7 (2010) EurOpal 7, EurOpal 7HX (2018) EurOpal 7X (2010) EurOpal 7X, EurOpal 7 HydriX (2018) EurOpal 8 (2010) EurOpal 9 (2010) EuroTitan 10 (2010) EuroTitan 10X (2010) FixPack (2010) Gigant 1000 (2010) Gigant 1000 Smaragd (2010) Gigant 800 (2010) Gigant 800 S (2010) Gigant 800 S Rubin (2006) Gigant 800 Smaragd (2010) Heliodor 9/600KA (2018) Heliodor 9/700KA (2018) Juwel 8M (2018) Karat 9/600 KA (2016) Kristall 9/500KA (2016) Kristall 9/600KA (2016) OptiDisc 25 (2018) Primus 10 (Часть 1) (2017) Primus 10 (Часть 2) (2017) Quarz 7/250 (2010) Quarz 7/250 F (2010) Quarz 7/300 (2010) Quarz 7/300F (2010) Quarz 7/400 (2010) Quarz 7/400F (2010) Quarz 7/400K (2010) Quarz 7/400KA (2010) Quarz 7/500K (2010) Quarz 7/500KA (2010) Quarz 7/600K (2010) Rubin 10/600 KUA (2018) Rubin 10/700 KUA (2018) Rubin 12/400 KUA (A) (2018) Rubin 12/500 KUA (A) (2018) Rubin 12/600 KUA (A) (2018) Rubin 12/700 KUA (2018) Rubin 9/300 U (2004) Rubin 9/400 U (2004) Saphir 7/300 (2010) Saphir 7/400 (2010) Smaragd 7/260 (2010) Smaragd 7/300 (2010) Smaragd 9/300 (2010) Smaragd 9/400 (2010) Smaragd 9/400 (2016) Smaragd 9/400 K (2016) Smaragd 9/400K (2010) Smaragd 9/450K (2010) Smaragd 9/500 K (2016) Smaragd 9/500K (2004) Smaragd 9/600 K (2016) Smaragd 9/600K (2010) Smaragd 9/600KA (2010) Solitair 10/600K (2006) Solitair 12/1000K (2007) Solitair 12/1200K (2008) Solitair 12/1200KD (2018) Solitair 12/5800SW (2018) Solitair 12/800K (2006) Solitair 12/900K (2007) Solitair 8/300 (2004) Solitair 8/300 (2014) Solitair 8/400 (2004) Solitair 9/300 (2004) Solitair 9/400 (2004) Solitair 9/400K (2004) Solitair 9/400KA (2004) Solitair 9/450K (2004) Solitair 9/450KA (2004) Solitair 9/500K (2004) Solitair 9/500KA (2009) Solitair 9/600K (2004) Solitair 9/600KA (2004) System-Kompaktor Gigant 1000 (2010) System-Kompaktor Gigant 800 (2010) System-Kompaktor K450 (2010) System-Kompaktor K450A (2010) System-Kompaktor K500 (2010) System-Kompaktor K500A (2010) System-Kompaktor K600 (2010) System-Kompaktor K600A (2010) System-Kompaktor S300 (2010) System-Kompaktor S400 (2010) System-Korund 300 L (2010) System-Korund 450 L (2010) System-Korund 600 L (2010) System-Korund 750 K (750 L) (2010) System-Korund 900 K (2010) System-Korund 900 L (2010) Thorit 8/300 (2005) Thorit 8/300 Combi-Liner (2004) Thorit 8/400 (2010) Thorit 8/400 Combi-Liner (2004) Thorit 9/400 K (2004) Thorit 9/400 KA (2003) Thorit 9/450 K (2004) Thorit 9/500 K (2004) Thorit 9/500 KA (2003) Thorit 9/600 K (2004) Thorit 9/600 KA (2003) Topas 140-A (2010) Vari-Diamant 10 (2004) Vari-Diamant 10X (2004) Vari-Opal 100 (2014) Vari-Opal 100HX (2014) Vari-Opal 100X (2014) Vari-Opal 160 (2014) Vari-Opal X160 (2014) Vari-Titan 10 (2010) Vari-Turmalin 10 (2005) Vari-Turmalin 10X (2005) Variopack 110DP70 (2010) Variopack 110DP90 (2010) Variopack 110EP90 (2010) Variopack 110FEPK700 (2010) Variopack 80DP70 (2010) Variopack S 110DP70 (2010) VariOpal 5 (2010) VariOpal 7 (2010) VariOpal 7X (2010) VariOpal 8 (2010) VariOpal 8X (2010) VariOpal 9 (2010) VariOpal 9X (2010) Zirkon 10/300 (2010) Zirkon 10/400 (2010) Zirkon 10/400K (2010) Zirkon 10/450 (2010) Zirkon 10/450K (2010) Zirkon 10/450KA (2010) Zirkon 10/500K (2010) Zirkon 10/500KA (2010) Zirkon 10/600KA (2010) Zirkon 7/250 (2010) Zirkon 7/300 (2010) Zirkon 7/400 (2010) Zirkon 9/300 (2010) Zirkon 9/400 (2010) Zirkon 9/600K "B" (2010)

Схема > Не выбрано Solitair 9/400 Support Solitair Dosage 4-A C Dosage, top part K 4-A Dosage, lower part K 4-A Dosage 4-Auslaufe C Dosage K 4xA Solitair Seeding mechanism 4-A E 6/L 45GRD Solitair Seeding mechanism 4-A K 6/L 45GRD Solitair Hopper 1500 Liter Hopper 1850 Liter Hopper 2300 Liter Hopper 1850 Liter Cover 1100l-1850l Cover 2300l Cover 1850l Flexible hose D25x940 2xD30 Flexible hose D25x1100 1xD30 Flexible hose D25x450 Flexible hose D25x1400 Holder for distributor 90x90 325x295 A D77 Holder for distributor 90x90 282x70 I D77 Holder for distributor A D77 40x10x570 2xD10,5 Holder Solitair 9 E Emptying unit for hopper 7/8B-M64x4 Tramline mechanism 1-F Tramline mechanism 2-F Distributor 7B Distributor 8B Supply hoses D65 2x1150 2x1700 Supply hoses D65 2x1270 2x1750 400KA Recirculation Solitair 1500 2-Dusen Recirculation Solitair 1850/2300 2-Dusen Recirculation 1500-l Methode C+D Recirculation 1850/2300-l 4-Dusen Recirculation 1500 l Recirculation 1850/2300 L Recirculation-connection Solitair S 2R Recirculation-connection Solitair S 1R Recirculation 4,0-S Cyclone D230-800 Solitair-S Cyclone D230-570 Solitair-KA+FW Fan Typ GST 520 Top link pin, cpl. KAT2 D25,4x140 Basic frame Solitair Adjustment centre 720 M Solitair DS Adjustment centre 720 M Solitair ES Adjustment centre 1010 HY Solitair KA B Adjustment centre 720 HYD Solitair DS Adjustment centre 720 HYD Solitair ES Step with platform 90x90 3+1 Solitair Step with platform 3STU.o.STR.2300 Sol.KA/SA Step with platform 3STU.o.STR.1100-1850 Sol.KA/SA Step with platform 3STU.o.STR.1100-1850 Sol.S Step with platform 4STU.m.STR.2300 Sol.KA/SA Step with platform 4STU.m.STR.1100-1850 Sol.KA/SA Step with platform 4STU.m.STR.1100-1850 Sol.S Coulter frame Solitair 9/400 32R-125 90x3980 Coulter frame Solitair 9/400 27R-150 Coulter frame Solitair 9/400 23R-175 Coulter frame Solitair 9/400-DS 32R-125 Coulter frame Solitair 9/400-DS 27R-150 Coulter frame Solitair 9/400-DS 23R-175 Coulter frame Solitair 9/400-ES 32R-125 Levelling harrow S-1,00 Swinging arm Disc D350/70/34x3 AA Pressure adjustment, mech. S+ES Coupling tube RE EuroDrill/Solitair 9 E Coupling tube LI EuroDrill/Solitair 9 E Harrow-S, separated Eurodrill 400 Coulter, short Solitair 9 E Coulter, long Solitair 9 E Levelling harrow S-1,00 Carrier STR 70x2000 Holder, long Holder, short Double disc coulter + roller D350/330-B Double disc coulter + roller D350/330-U Single disc coulter, long D325 RE Single disc coulter, short D325 LI Single disc coulter, short D325 RE Single disc coulter, long D325 LI Scraper Single harrow D10x960 Pre-emergency marker HS D325 VALM Bracket pre-emergence marker D20x24t=8 Pre-emergency marker lang MI-Rahmen Pre-emergency marker kurz MI_Rahmen Pre-emergency marker DS-Ausfuhrung Pre-emergency marker lang Seiten-Rahmen Pre-emergency marker kurz Seiten-Rahmen Fittings FK Solitair/Zirkon 9 Kupplungsteil FK Solitair/Zirkon 7 Fittings Solitair-Fremdgerate Fittings Zirkon 9-Solitair KA Fittings Zirkon 7-Solitair KA Lighting equipment with boards AL18 B LI+RE Working spot light Solitair 9 Set of cables Solitair 9/400 Wheel 6/161/205 D18 11.5/80-15.3 10PR AW Wheel 6/161/205 D18 400-15.5 T404 -14PR RE Wheel 6/161/205 D18 400-15.5 T404 -14PR LI Trailer Solitair D55 A 6/160/205 Lower link connection D55/P L2 Z2 Lower link connection D55/P L2 Z3 Lower link connection D55/P L3 Z2 Lower link connection D55/P L3 Z3 Stand 40x20/120x120-Solitair Stand RE+LE Solitair + Saphir 7 Holder 120x120 Solitair Holder 90x90 Solitair Track scraper FSU-VS33 Track scraper FSU+G25 40x20 Track scraper with holder FSU-G25 120x120 Solitair Track scraper with holder FSU-G25 90x90 Solitair Track scraper with holder FSU-VS33-90x90-67 Track scraper with holder FSU-VS33-120x120 Axle for track marker D30x595 668A Track marker Track marker Zirkon 400+450 D380 B Extension cable 5000 Extension cable 8000 Sensor - filling level kpl. Solitair LH5000 Electric drive Solitair Stirnradgetriebe Distributor monitoring 4-V Solitair 9 Tramline control 2x1-F Solitair 9 Tramline control 2x2-F Solitair 9 Tramline control 2x3-F Solitair 9 Tramline control 2x4-F Solitair 9 Tramline control 4x2-F Solitair 9 Tramline control 4x3-F Solitair 9 Tramline-distributor control 2x1-F 4-V Solitair 9 Tramline-distributor control 2x2-F 4-V Solitair 9 Tramline-distributor control 2x3-F 4-V Solitair 9 Tramline-distributor control 2x4-F 4-V Solitair 9 Tramline-distributor control 4x2-F 4-V Solitair 9 Tramline-distributor control 4x3-F 4-V Solitair 9 Partly width switch off 2-TB Partly width switch off 4-Teilbreiten Tractor mounting set GBT 2000 /30x30 Tractor mounting set LH 5000 Tractor mounting set 2-TB/LH 5000 Tractor mounting set 4-Teilbreiten LH 5000 On board computer LH5000-GPS On board computer LH 5000 Cable form Solitair Electronic box LH 5000 Bedienterminal LKT1 Solitronic Cable form Solitronic Cable form Solitronic Sensorkabelbaum Basis Solitronic Versorgungskabel Soli9 starr/K Solitronic Jobrechner MDB Solitronic MDB-job computer Koppelbox Solitair 9 komplett Solitronic Electric drive Solitair 9 Control valve Solitair 1V-0M-0T Control valve Solitair 2V-0M-0T Control valve Solitair 3V-0M-0T Control valve Solitair 0V-1M-4T Control valve Solitair 1V-1M-4T Control valve Solitair 2V-1M-4T Control valve Solitair 3V-1M-4T Hydraulic assembly fan Solitair 2L V+R HY-assembly coulter lifting DZ63/30-245 Solitair B HY-assembly coulter pressure DZ60-245 Solitair HY-assembly harrow 4-Felder Solitair HY-assembly harrow 4-Felder STB Solitair HY-assembly track marker Zirkon 400/450, 400K/450K Hydraulic assembly EZ Solitair 1x2 Hydraulic assembly DZ Solitair 1x2 Hydraulic assembly EZ Solitair 2x2 Hydraulic assembly DZ Solitair 2x2 Hydraulic assembly DZ Solitair 1x2 STB Hydraulic assembly EZ Solitair 1x2 STB Partly width switch off hydr. TBA 2x Partly width switch off hydr. TBA 4x R.682_7001 Partly width switch off hydr. TBA 4x R.682_7002 Supply hoses STB Solitair 8+9 R.682_7001 Supply hoses STB Solitair 8+9 R.681_7002 Drive wheel D540 IG W-90 Drive wheel (harrow) D540 IG W-90/L Drive wheel D540 2xD16 Accessories Solitair 9 Accessories Solitair 9-KA

1

2

3

4

5

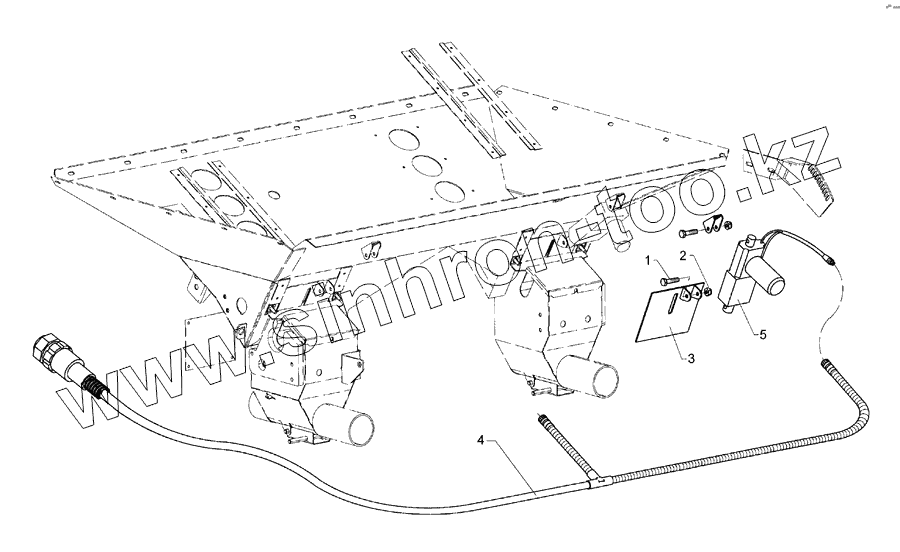

Позиция на иллюстрации	Заводской номер детали		Название детали
1	301 3007		Bolt
2	303 0931		Selflocking nut
3	482 5910		Slide
4	573 4448		Cable set
5	573 4831		Miniature electric ram
6	301 6725		Bolt
7	375 9975		Clip

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
