Каталог запасных частей к технике: Lemken Solitair 8/300. 582 2617 Pre-emergency marker

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано Achat 9/400 KA (2004) Achat 9/500 KA (2004) Achat 9/600 KA (2004) Azurit 9 (2018) Dolomit 9 (2010) EuroDiamant 10 (2010) EuroDiamant 10 X (2010) EuroDiamant 8 (2010) EuroGranat 5 (2006) EuroGranat 6 (2006) EuroGranat 7 (2006) EurOpal 5 (2010) EurOpal 5HX (2010) EurOpal 6 (2010) EurOpal 7 (2010) EurOpal 7, EurOpal 7HX (2018) EurOpal 7X (2010) EurOpal 7X, EurOpal 7 HydriX (2018) EurOpal 8 (2010) EurOpal 9 (2010) EuroTitan 10 (2010) EuroTitan 10X (2010) FixPack (2010) Gigant 1000 (2010) Gigant 1000 Smaragd (2010) Gigant 800 (2010) Gigant 800 S (2010) Gigant 800 S Rubin (2006) Gigant 800 Smaragd (2010) Heliodor 9/600KA (2018) Heliodor 9/700KA (2018) Juwel 8M (2018) Karat 9/600 KA (2016) Kristall 9/500KA (2016) Kristall 9/600KA (2016) OptiDisc 25 (2018) Primus 10 (Часть 1) (2017) Primus 10 (Часть 2) (2017) Quarz 7/250 (2010) Quarz 7/250 F (2010) Quarz 7/300 (2010) Quarz 7/300F (2010) Quarz 7/400 (2010) Quarz 7/400F (2010) Quarz 7/400K (2010) Quarz 7/400KA (2010) Quarz 7/500K (2010) Quarz 7/500KA (2010) Quarz 7/600K (2010) Rubin 10/600 KUA (2018) Rubin 10/700 KUA (2018) Rubin 12/400 KUA (A) (2018) Rubin 12/500 KUA (A) (2018) Rubin 12/600 KUA (A) (2018) Rubin 12/700 KUA (2018) Rubin 9/300 U (2004) Rubin 9/400 U (2004) Saphir 7/300 (2010) Saphir 7/400 (2010) Smaragd 7/260 (2010) Smaragd 7/300 (2010) Smaragd 9/300 (2010) Smaragd 9/400 (2010) Smaragd 9/400 (2016) Smaragd 9/400 K (2016) Smaragd 9/400K (2010) Smaragd 9/450K (2010) Smaragd 9/500 K (2016) Smaragd 9/500K (2004) Smaragd 9/600 K (2016) Smaragd 9/600K (2010) Smaragd 9/600KA (2010) Solitair 10/600K (2006) Solitair 12/1000K (2007) Solitair 12/1200K (2008) Solitair 12/1200KD (2018) Solitair 12/5800SW (2018) Solitair 12/800K (2006) Solitair 12/900K (2007) Solitair 8/300 (2004) Solitair 8/300 (2014) Solitair 8/400 (2004) Solitair 9/300 (2004) Solitair 9/400 (2004) Solitair 9/400K (2004) Solitair 9/400KA (2004) Solitair 9/450K (2004) Solitair 9/450KA (2004) Solitair 9/500K (2004) Solitair 9/500KA (2009) Solitair 9/600K (2004) Solitair 9/600KA (2004) System-Kompaktor Gigant 1000 (2010) System-Kompaktor Gigant 800 (2010) System-Kompaktor K450 (2010) System-Kompaktor K450A (2010) System-Kompaktor K500 (2010) System-Kompaktor K500A (2010) System-Kompaktor K600 (2010) System-Kompaktor K600A (2010) System-Kompaktor S300 (2010) System-Kompaktor S400 (2010) System-Korund 300 L (2010) System-Korund 450 L (2010) System-Korund 600 L (2010) System-Korund 750 K (750 L) (2010) System-Korund 900 K (2010) System-Korund 900 L (2010) Thorit 8/300 (2005) Thorit 8/300 Combi-Liner (2004) Thorit 8/400 (2010) Thorit 8/400 Combi-Liner (2004) Thorit 9/400 K (2004) Thorit 9/400 KA (2003) Thorit 9/450 K (2004) Thorit 9/500 K (2004) Thorit 9/500 KA (2003) Thorit 9/600 K (2004) Thorit 9/600 KA (2003) Topas 140-A (2010) Vari-Diamant 10 (2004) Vari-Diamant 10X (2004) Vari-Opal 100 (2014) Vari-Opal 100HX (2014) Vari-Opal 100X (2014) Vari-Opal 160 (2014) Vari-Opal X160 (2014) Vari-Titan 10 (2010) Vari-Turmalin 10 (2005) Vari-Turmalin 10X (2005) Variopack 110DP70 (2010) Variopack 110DP90 (2010) Variopack 110EP90 (2010) Variopack 110FEPK700 (2010) Variopack 80DP70 (2010) Variopack S 110DP70 (2010) VariOpal 5 (2010) VariOpal 7 (2010) VariOpal 7X (2010) VariOpal 8 (2010) VariOpal 8X (2010) VariOpal 9 (2010) VariOpal 9X (2010) Zirkon 10/300 (2010) Zirkon 10/400 (2010) Zirkon 10/400K (2010) Zirkon 10/450 (2010) Zirkon 10/450K (2010) Zirkon 10/450KA (2010) Zirkon 10/500K (2010) Zirkon 10/500KA (2010) Zirkon 10/600KA (2010) Zirkon 7/250 (2010) Zirkon 7/300 (2010) Zirkon 7/400 (2010) Zirkon 9/300 (2010) Zirkon 9/400 (2010) Zirkon 9/600K "B" (2010)

Схема > Не выбрано Contents 313 7880 Top link pin with chain 682 9924 Accessories 549 8894 Bearing 549 8897 Bearing 550 8850 Wheel 6/161/205 D18 550 8860 Wheel 6/161/205 D18 550 8861 Wheel 6/161/205 D18 550 8872 Wheel 8/221/275 550 8873 Wheel 8/221/275 58210003 Tramline mechanisme 629 4418 Stand 640 9134 Drawbar 650 8572 Trailer 650 8573 Trailer 661 6020 Carrier 682 5064 Tramline mechanism 682 5065 Tramline mechanism 629 7402 Stand 62910001 Stand 557 2520 Holder for track scraper 557 2650 Holder 557 2652 Holder 557 4991 Wheel mark eradicator 557 4995 Wheel mark eradicator 657 2650 Wheel mark eradicator w.holder 657 2652 Wheel mark eradicator w.holder 657 4992 Wheel mark eradicator w.holder 657 4993 Wheel mark eradicator w.holder 657 4994 Wheel mark eradicator w.holder 682 2722 Carrier for track scraper 661 1330 Lower link connection 661 1332 Lower link connection 661 1336 Lower link connection 661 1338 Lower link connection 661 8364 Fittings 661 8365 Fittings 661 8373 Fittings 661 8380 Fittings 661 8381 Fittings 661 8398 Fittings 661 8399 Fittings 670 1722 Lateral warning board 670 2021 Lighting equipment with boards 670 2082 Set of cables 670 2083 Working spot light 670 2095 Working spot light 670 5240 Locking 67010002 Lighting equipment 575 2310 Plunger-ram 575 2314 Ram 575 2323 Ram 575 2324 Ram 575 2335 Ram 575 2533 Ram 575 2534 Ram 575 2683 HY-pipe assembly pole 575 4369 Holder 575 4810 Hydraulic motor 675 4202 Oil tank 675 4832 Pump 675 8024 Control valve 675 8025 Control valve 675 8026 Control valve 675 8027 Control valve 675 8028 Control valve 675 8029 Control valve 675 8030 Control valve 675 8202 Hydraulic assembly fan 675 8205 Hydraulic assembly fan 675 8207 Hydraulic assembly fan 675 8209 Hydraulic assembly fan 675 8210 Hydraulic assembly fan 675 8215 Hydraulic assembly fan 675 8247 HY-assembly coulter pressure 675 8248 HY-assembly coulter lifting 675 8251 HY-assembly coulter lifting 675 8252 HY-assembly coulter pressure 675 8254 HY-assembly harrow 675 8261 HY-assembly coulter pressure 675 8262 HY-assembly coulter lifting 675 8362 Hydraulic assembly 675 8400 HY-assembly track marker 675 8414 Manometric switch 675 8423 Hydraulic assembly 675 8424 Hydraulic assembly 675 8434 Width section switch hydr. 675 8442 Supply hoses 67510125 Manometric switch 582 1248 Axle for track marker 582 2617 Pre-emergency marker 682 1271 Bracket 682 1274 Track marker 555 9313 Angular gear box 582 2546 Extension pulse pick-up wheel 582 2551 Extension 681 4708 Spring 681 4710 Spike wheel drive 681 4711 Drive parts 68110001 Spike wheel drive 582 5050 Tramline mechanism 582 5051 Tramline mechanism 582 5056 Tramline mechanism 582 5057 Tramline mechanism 582 5228 Flexible hose 582 5229 Flexible hose 582 5231 Flexible hose 582 5233 Flexible hose 582 5234 Flexible hose 582 5235 Flexible hose 582 5236 Flexible hose 582 5240 Flexible hose 582 5586 Support 682 2506 Holder for distributor 682 5030 Emptying unit for hopper 682 5031 Emptying unit for hopper 682 5033 Emptying unit for hopper 682 5069 Distributor 682 5070 Distributor 682 5072 Distributor 682 5100 Supply hoses 68210016 Distributor 68210017 Distributor 68210018 Distributor 68210019 Distributor 68210036 Supply hoses 699 6501 Recirculation 582 2618 Pre-emergency marker 682 2614 Pre-emergency marker 682 2615 Pre-emergency marker 682 2616 Pre-emergency marker 682 2725 Carrier 682 2730 Holder, short 682 2739 Extension carrier 682 3014 Step with platform 682 3015 Step with platform 682 3016 Step with platform 682 3018 Step with platform 682 3019 Step with platform 682 3020 Step with platform 682 3022 Additional parts step 68210003 Step with platform 68210004 Step with platform 682 5054 Tramline mechanism 682 5055 Tramline mechanism 682 5062 Tramline mechanism 682 5063 Tramline mechanism 682 5161 Recirculation 682 5162 Recirculation 682 5163 Recirculation 682 5166 Recirculation-connection 682 5168 Recirculation-connection 68210126 Dosage 582 5764 Dosage, top part 582 5767 Dosage, lower part 582 5836 Additional agitator 582 5898 Seeding mechanism 682 5300 Hopper 682 5304 Hopper 682 5308 Hopper 682 5340 Hopper 682 5571 Cover 682 5575 Cover 682 5601 Cover plane for hopper 682 5605 Cover plane for hopper 682 5710 Protective grating 682 5764 Dosage 682 9905 Conversion-set 68210037 Recirculation connecting hose 68210091 Cover 582 5680 Fan 682 5671 Cyclone 682 5672 Cyclone 682 5680 Fan 68210154 Cyclone 357 6001 Pressure roller cpl. 582 2704 Levelling harrow 582 2727 Swinging arm 582 5709 Supplementary set 582 6011 Cover with scraper 582 6012 Cover with hard metal scraper 582 6028 Disc 582 6054 Holder for spring 58210024 Scraper 68110002 Carrier 682 2704 Levelling harrow 682 6032 Double disc coulter + roller 682 6033 Double disc coulter + roller 682 6034 Double disc coulter + roller 682 6038 Single disc coulter, long 682 6039 Single disc coulter, short 682 6040 Single disc coulter, short 682 6041 Single disc coulter, long 682 6042 Suffolk coulter 682 6043 Suffolk coulter 682 6132 Double disc coulter 682 6133 Double disc coulter 682 6141 Pressure roller 682 6142 Pressure roller 682 6375 Scraper 682 6401 Single harrow 682 7002 Basic frame 682 7130 Linkage - coulter lifting 682 7131 Linkage - coulter lifting 682 7132 Frame 682 7133 Frame 682 9925 Accessories 675 8018 Coulter pressure device hydr. 681 1154 Pressure adjustment, mech. 682 7101 Adjustment centre 682 7103 Adjustment centre 682 7104 Adjustment centre 682 7109 Adjustment centre 682 7110 Adjustment centre 682 7112 Adjustment centre 682 7113 Adjustment centre 682 8112 Coulter frame 682 8113 Coulter frame 682 8114 Coulter frame 682 8152 Coulter frame 682 8153 Coulter frame 68210002 Adjustment centre 373 4150 Extension cable 573 4401 Cable 573 4483 Extension cable 573 4484 Extension cable 573 6108 T-piece 573 6316 Job computer 573 6326 Cable form 573 6337 Cable 573 8032 Sensor - filling level 573 8033 Sensor - filling level 573 8045 Sensor holder 673 1013 Distributor monitoring 673 1021 Tramline control 673 1022 Tramline control 673 1023 Tramline control 673 1024 Tramline control 673 1025 Tramline control 673 1026 Tramline control 673 1027 Tramline-distributor control 673 1028 Tramline-distributor control 673 1029 Tramline-distributor control 673 1030 Tramline-distributor control 673 1031 Tramline-distributor control 673 1032 Tramline-distributor control 673 6216 Camera monitoring 673 6217 Camera monitoring 673 6300 Operation terminal 673 6310 Junction box 673 6312 Junction box 673 6320 Seed level control 673 6321 Seed level control, addition 673 6322 Cable form 673 9501 Electronic scale 67310022 Electronic scale

1

2

3

4

5

6

7

8

9

12

12

13

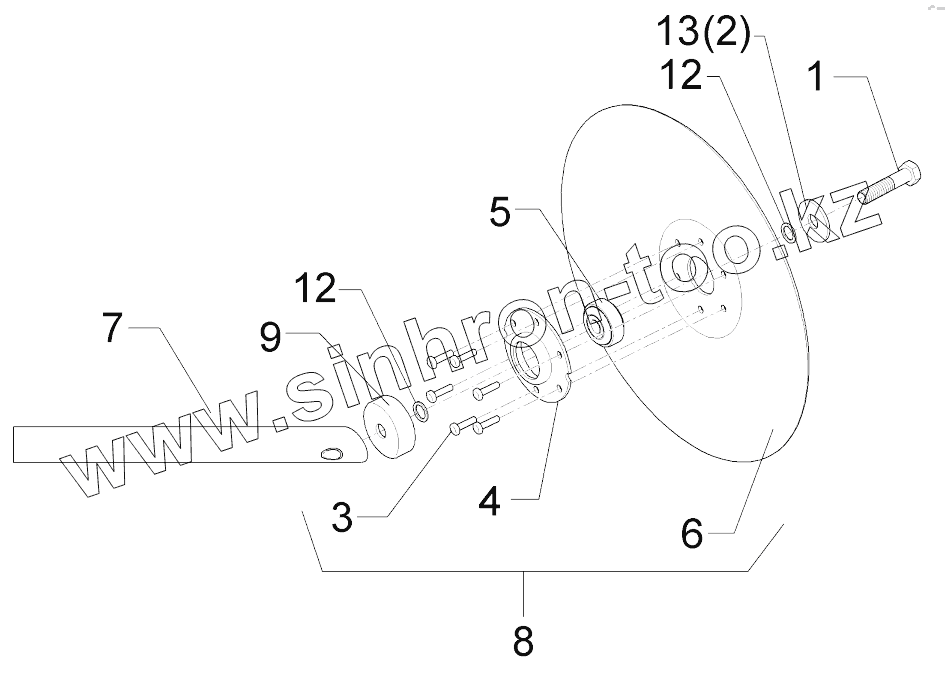

Позиция на иллюстрации	Заводской номер детали		Название детали
1	301 3347		Screw
2	305 8578		Washer
3	315 8008		Rivet
4	319 1126		Bearing housing
5	319 8563		Bearing
6	349 0009		Hollow disc
7	482 2617		Disc carrier
8	582 2603		Hollow disc
9	319 1127		Cap
10	319 8702		Bearing
12	305 2330		Supporting washer
13	305 8734		Washer
14	317 7663		Bushing

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
