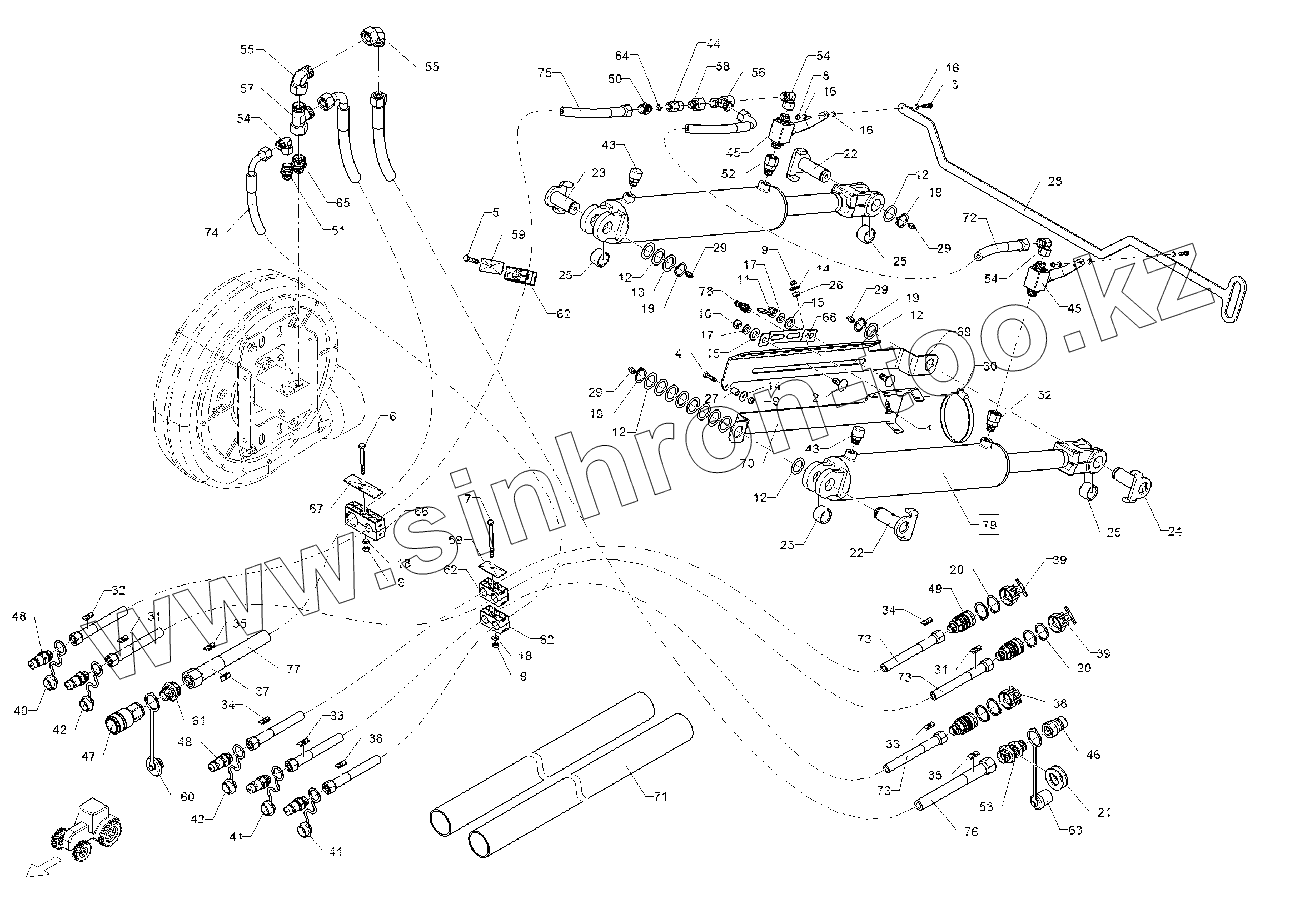

Каталог запасных частей к технике: Lemken Solitair 12/5800SW. 67511288 Hydraulic assembly

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
9
9
9
10
11
12
12
12
12
12
13
14
14
15
15
16
16
16
17
17
18
18
18
19
19
19
20
20
22
22
23
23
23
24
25
25
26
26
27
28
29
29
29
29
30
31
31
32
32
33
34
34
35
35
35
36
37
38
39
39
39
40
41
41
42
42
43
43
44
45
45
46
47
48
48
49
51
52
53
54
54
54
55
55
56
57
58
59
59
60
60
61
62
62
62
63
64
65
66
66
67
71
72
73
73
73
73
74
75
76
77
78
79
Позиция на иллюстрации Заводской номер детали Название детали
1 301 1125 Saucer-head screw
2 301 1802 Bolt, cup square head
3 301 3006 Screw
4 301 3066 Screw
5 301 3073 Bolt
6 301 3085 Hexagon bolt
7 30110402 Hexagon bolt
8 303 0931 Selflocking nut
9 303 0932 Selflocking nut
10 303 0934 Selflocking nut
11 303 1512 Wing nut
12 305 2051 Shim
13 305 2242 Supporting washer
14 305 6124 Washer
15 305 6958 Washer
16 305 8571 Washer
17 305 8580 Washer
18 305 8694 Washer
19 305 8867 Securing ring
20 305 8871 Securing ring
21 30510072 Washer
22 313 3003 Pin with stop
23 313 3028 Pin with stop
24 31310129 Pin
25 317 3417 Expansion bush
26 317 7583 Bush
27 317 9476 Bush
28 32110238 Lever
29 323 6348 Grease nipple
30 325 1181 Hose clip
31 325 1521 Marking
32 325 1523 Marking
33 325 1526 Marking
34 325 1528 Marking
35 325 1533 Marking
36 32510020 Marking
37 32510021 Marking
38 375 2103 Dust protection flap
39 375 2105 Dust protection flap
40 375 2121 Cap
41 375 2123 Cap
42 375 2166 Cap, red
43 375 2196 Vent plug
44 375 2205 Connection
45 375 2213 Ball valve
46 375 2719 SVK-socket
47 375 2732 SVK-socket
48 375 2736 SVK-socket
49 375 2737 SVK-socket
50 375 4028 Nipple
51 375 4032 Nipple
52 375 4037 Nipple
53 375 4399 Straight bulkhead screw
54 375 4503 Adjustable angle union
55 375 4507 Adjustable angle union
56 375 4553 L-adjustable T-union
57 375 4558 Adjustable L-union
58 375 4653 Reduction joint
59 375 9998 Cover plate
60 37510040 Plastic male probe
61 37510090 Nipple
62 37510218 Clamp
63 37510241 Dust cap
64 37510325 Restrictor washer
65 37510390 Nipple
66 37510409 Clamp
67 37510410 Cover plate
68 47310084 Sensor holder
69 47310088 Slide guiding
70 47310187 Slide guiding
71 47510739 Guard for hoses
72 47511537 Hydraulic hose
73 47511538 Hydraulic hose
74 47511541 Hydraulic hose
75 47511542 Hydraulic hose
76 47511889 Hydraulic hose
77 47511913 Hydraulic hose
78 573 4375 Proximity switch
79 575 2355 Ram
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
