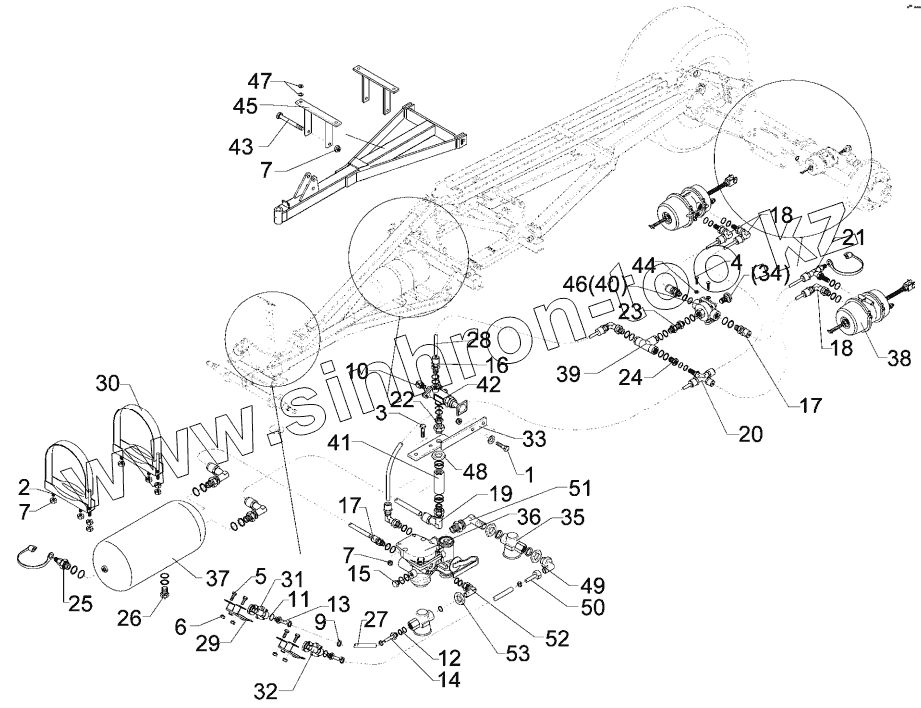

Каталог запасных частей к технике: Lemken Smaragd 9/600KA. Compressed-air brake Smaragd 9 KA B

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
7
7
9
10
11
12
13
14
15
16
17
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
Позиция на иллюстрации Заводской номер детали Название детали
1 301 5424 Bolt
2 301 5004 Screw
3 301 5009 Screw
4 301 7260 Screw
5 301 7280 Screw
6 303 0932 Selflocking nut
7 303 0933 Selflocking nut
8 305 8694 Washer
9 325 1145 Hose clip
10 375 2190 Vent plug
11 377 1180 Thrust ring with O-ring
12 377 1181 Thrust ring with O-ring
13 377 1301 Hose nipple
14 377 1302 Hose nipple
15 377 1350 Plug
16 377 1400 Push-in connection
17 377 1401 Push-in connection
18 377 1409 Push-in connection
19 377 1410 Push-in connection
20 377 1440 Push-in connection
21 377 1450 Push-in connection
22 377 1460 Screwed socket
23 377 1461 Screwed socket
24 377 1482 Reducing fitting
25 377 1341 Test coupling
26 377 1380 Dewatering valve
27 377 2025 Brake hose
28 377 2070 Synthetic tube
29 377 2520 Hose clamp
30 377 2532 Strap
31 377 2540 Hose coupling
32 377 2541 Hose coupling
33 477 1125 Holder
34 577 2570 Venting filter
35 577 2580 Filter
36 577 2591 Trailer brake valve
37 577 2622 Compressed-air container
38 577 2641 Membrane-cylinder
39 577 2660 2-port control valve
40 577 2670 Quick release valve
41 577 2680 Nonreturn valve
42 577 2690 Parking valve
43 301 5438 Bolt
44 305 9898 Spring ring
45 477 1126 Holder
46 577 2671 Quick release valve
47 305 8696 Washer
48 375 5698 Nut
49 377 1260 Angle union
50 377 1300 Hose nipple
51 377 1472 Screwed socket
52 377 1473 Screwed socket
53 375 5710 Nut
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
