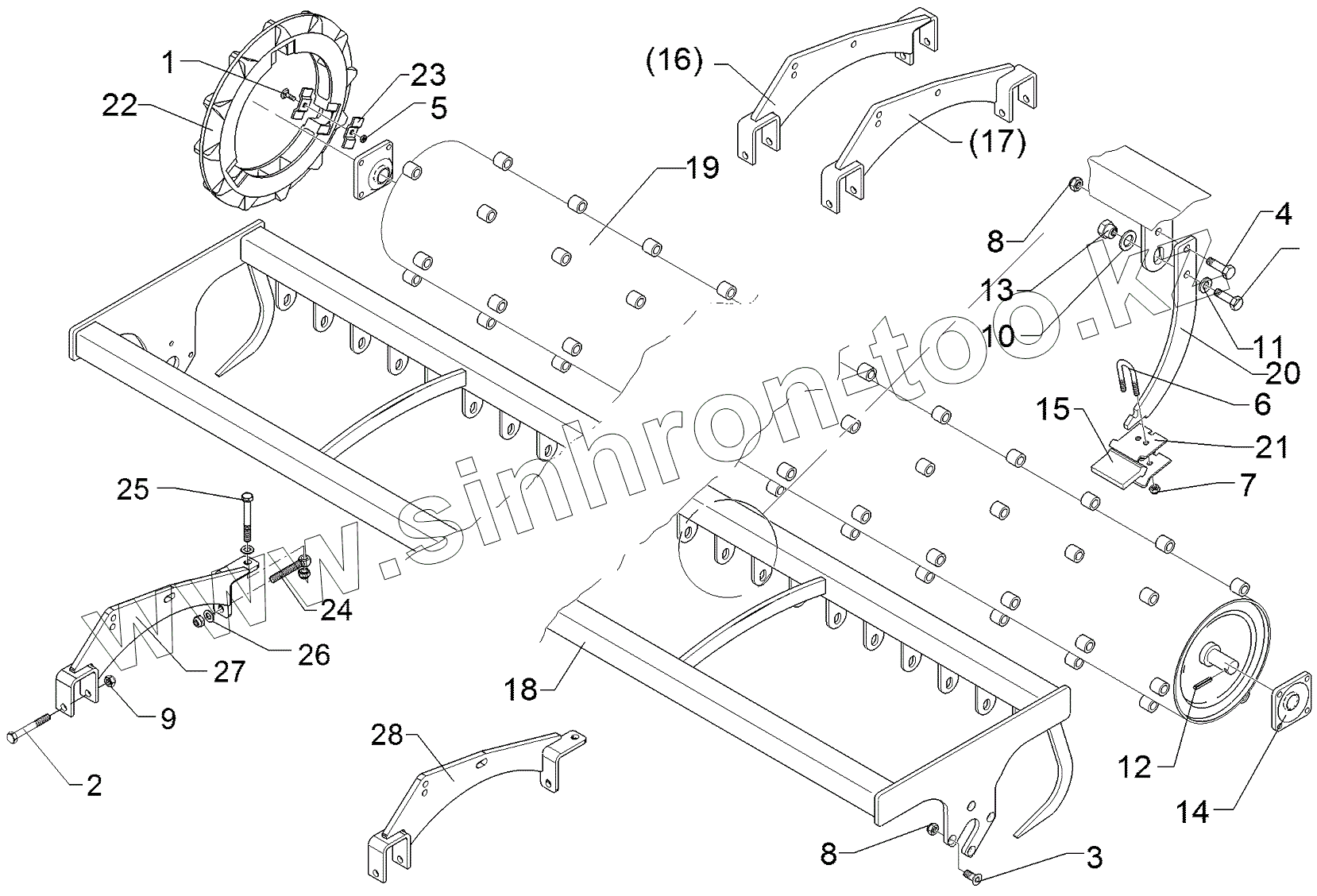

Каталог запасных частей к технике: Lemken Smaragd 9/600 K. 622 6766 Trapeze disc roller
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
AGCO
Amity
CASE IH
DongFeng
Fortschritt
Foton
Franz Kleine
Gaspardo
Great Plains
KRONE
KUHN
Lemken
Lovol
MacDon
Massey Ferguson
New Holland
TIGARBO
Vaderstad
Versatile
Wirax
Агро
Агротехмаш
Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш»)
БЭМЗ
ВгТЗ
Воронежсельмаш
ВТЗ
Гомсельмаш
ДКЗ
ЗАО "Техника-сервис"
ЗиД
КЗК
Кировец-Ландтехник
Клевер
Красная Звезда
Лидагропроммаш
Лидсельмаш
ЛТЗ
Машстройхолдинг
Минитракторы
Мордовагромаш
МТЗ
Навигатор-Новое машиностроение
Нефтекамский автозавод
ПТЗ
Ремком
РСМ
Сибсельмаш
ТеКЗ
ТКЗ
ХЗТСШ
ХТЗ
ЮМЗ
Модель
Не выбрано
Achat 9/400 KA (2004)
Achat 9/500 KA (2004)
Achat 9/600 KA (2004)
Azurit 9 (2018)
Dolomit 9 (2010)
EuroDiamant 10 (2010)
EuroDiamant 10 X (2010)
EuroDiamant 8 (2010)
EuroGranat 5 (2006)
EuroGranat 6 (2006)
EuroGranat 7 (2006)
EurOpal 5 (2010)
EurOpal 5HX (2010)
EurOpal 6 (2010)
EurOpal 7 (2010)
EurOpal 7, EurOpal 7HX (2018)
EurOpal 7X (2010)
EurOpal 7X, EurOpal 7 HydriX (2018)
EurOpal 8 (2010)
EurOpal 9 (2010)
EuroTitan 10 (2010)
EuroTitan 10X (2010)
FixPack (2010)
Gigant 1000 (2010)
Gigant 1000 Smaragd (2010)
Gigant 800 (2010)
Gigant 800 S (2010)
Gigant 800 S Rubin (2006)
Gigant 800 Smaragd (2010)
Heliodor 9/600KA (2018)
Heliodor 9/700KA (2018)
Juwel 8M (2018)
Karat 9/600 KA (2016)
Kristall 9/500KA (2016)
Kristall 9/600KA (2016)
OptiDisc 25 (2018)
Primus 10 (Часть 1) (2017)
Primus 10 (Часть 2) (2017)
Quarz 7/250 (2010)
Quarz 7/250 F (2010)
Quarz 7/300 (2010)
Quarz 7/300F (2010)
Quarz 7/400 (2010)
Quarz 7/400F (2010)
Quarz 7/400K (2010)
Quarz 7/400KA (2010)
Quarz 7/500K (2010)
Quarz 7/500KA (2010)
Quarz 7/600K (2010)
Rubin 10/600 KUA (2018)
Rubin 10/700 KUA (2018)
Rubin 12/400 KUA (A) (2018)
Rubin 12/500 KUA (A) (2018)
Rubin 12/600 KUA (A) (2018)
Rubin 12/700 KUA (2018)
Rubin 9/300 U (2004)
Rubin 9/400 U (2004)
Saphir 7/300 (2010)
Saphir 7/400 (2010)
Smaragd 7/260 (2010)
Smaragd 7/300 (2010)
Smaragd 9/300 (2010)
Smaragd 9/400 (2010)
Smaragd 9/400 (2016)
Smaragd 9/400 K (2016)
Smaragd 9/400K (2010)
Smaragd 9/450K (2010)
Smaragd 9/500 K (2016)
Smaragd 9/500K (2004)
Smaragd 9/600 K (2016)
Smaragd 9/600K (2010)
Smaragd 9/600KA (2010)
Solitair 10/600K (2006)
Solitair 12/1000K (2007)
Solitair 12/1200K (2008)
Solitair 12/1200KD (2018)
Solitair 12/5800SW (2018)
Solitair 12/800K (2006)
Solitair 12/900K (2007)
Solitair 8/300 (2004)
Solitair 8/300 (2014)
Solitair 8/400 (2004)
Solitair 9/300 (2004)
Solitair 9/400 (2004)
Solitair 9/400K (2004)
Solitair 9/400KA (2004)
Solitair 9/450K (2004)
Solitair 9/450KA (2004)
Solitair 9/500K (2004)
Solitair 9/500KA (2009)
Solitair 9/600K (2004)
Solitair 9/600KA (2004)
System-Kompaktor Gigant 1000 (2010)
System-Kompaktor Gigant 800 (2010)
System-Kompaktor K450 (2010)
System-Kompaktor K450A (2010)
System-Kompaktor K500 (2010)
System-Kompaktor K500A (2010)
System-Kompaktor K600 (2010)
System-Kompaktor K600A (2010)
System-Kompaktor S300 (2010)
System-Kompaktor S400 (2010)
System-Korund 300 L (2010)
System-Korund 450 L (2010)
System-Korund 600 L (2010)
System-Korund 750 K (750 L) (2010)
System-Korund 900 K (2010)
System-Korund 900 L (2010)
Thorit 8/300 (2005)
Thorit 8/300 Combi-Liner (2004)
Thorit 8/400 (2010)
Thorit 8/400 Combi-Liner (2004)
Thorit 9/400 K (2004)
Thorit 9/400 KA (2003)
Thorit 9/450 K (2004)
Thorit 9/500 K (2004)
Thorit 9/500 KA (2003)
Thorit 9/600 K (2004)
Thorit 9/600 KA (2003)
Topas 140-A (2010)
Vari-Diamant 10 (2004)
Vari-Diamant 10X (2004)
Vari-Opal 100 (2014)
Vari-Opal 100HX (2014)
Vari-Opal 100X (2014)
Vari-Opal 160 (2014)
Vari-Opal X160 (2014)
Vari-Titan 10 (2010)
Vari-Turmalin 10 (2005)
Vari-Turmalin 10X (2005)
Variopack 110DP70 (2010)
Variopack 110DP90 (2010)
Variopack 110EP90 (2010)
Variopack 110FEPK700 (2010)
Variopack 80DP70 (2010)
Variopack S 110DP70 (2010)
VariOpal 5 (2010)
VariOpal 7 (2010)
VariOpal 7X (2010)
VariOpal 8 (2010)
VariOpal 8X (2010)
VariOpal 9 (2010)
VariOpal 9X (2010)
Zirkon 10/300 (2010)
Zirkon 10/400 (2010)
Zirkon 10/400K (2010)
Zirkon 10/450 (2010)
Zirkon 10/450K (2010)
Zirkon 10/450KA (2010)
Zirkon 10/500K (2010)
Zirkon 10/500KA (2010)
Zirkon 10/600KA (2010)
Zirkon 7/250 (2010)
Zirkon 7/300 (2010)
Zirkon 7/400 (2010)
Zirkon 9/300 (2010)
Zirkon 9/400 (2010)
Zirkon 9/600K "B" (2010)
Схема
>
Не выбрано
313 7878 CONTENTS
313 7878 Top link pin
313 7913 Top link pin with chain
313 7923 Top link pin with chain
313 7927 Top link pin with chain
313 7929 Top link pin with chain
617 8078 Carrier
617 8086 Carrier
617 8089 Carrier
617 8090 Carrier
617 8110 Carrier, 1 pair for harrow
617 8111 Carrier, 1 pair for harrow
617 8122 Carrier T-profile
617 8123 Carrier T-profile
617 8124 Carrier for double roller
617 8125 Carrier for double roller
617 8131 Balance bar
617 8162 Frame for hollow discs
657 2424 Bracket for outer disc
657 2425 Bracket for outer disc
30210039 Turnbuckle
617 8216 Basic frame
629 4623 Stand
690 1201 Package parts
690 1202 Package parts
690 1204 Package parts
617 8188 Adapter
622 0150 Holder
622 0152 Holder
622 0184 Holder
622 0188 Holder
622 1039 Stabilizer
640 5220 Headstock
640 5221 Headstock
640 5226 Headstock
640 5227 Headstock
640 5229 Headstock
661 6160 Depth limiter
670 5070 Transport protection
617 8146 Locking device
640 8354 Parts for front headstock
640 8355 Front headstock
321 6964 Eccentric lever
622 6386 Levelling type harrow
622 6345 Toothed packer roller
622 6602 Tube bar roller
622 6608 Tube bar roller
622 6609 Tube bar roller
622 6628 Tube bar roller
622 6629 Tube bar roller
622 6739 Trapeze packer roller
622 6744 Packer roller, short scraper
622 6752 Trapeze packer roller
622 6760 Trapeze packer roller
622 6766 Trapeze disc roller
622 6780 Trapeze disc roller
622 6810 Knife roller
622 6811 Knife roller
622 6820 Knife roller
622 6821 Knife roller
622 6873 Rubber ring roller
622 6888 Knife roller
622 6889 Knife roller
622 6920 Knife roller
622 6921 Knife roller
622 7255 Tube bar roller
622 7268 Tube bar roller
622 7269 Tube bar roller
622 7284 Tube bar roller
622 7285 Tube bar roller
622 7400 Double profile roller
622 7401 Double profile roller
622 7432 Toothed packer roller
622 7436 Packer roller, short scraper
622 7442 Trapeze packer roller
622 7447 Trapeze packer roller
622 7470 Double profile roller
622 7471 Double profile roller
622 7532 Packer roller
622 7536 Packer roller
622 6688 Double roller
622 6689 Double roller
622 6706 Double roller
622 6707 Double roller
622 6858 Double roller
622 6859 Double roller
622 7314 Double roller
622 7315 Double roller
622 7364 Double roller
622 7365 Double roller
622 8314 Double roller
622 8315 Double roller
627 5687 Overload safety device
627 5720 Overload safety device
627 5726 Overload safety device
627 5728 Overload safety device
627 5695 Overload safety device
657 2418 Pair of hollow discs
657 2420 Concave disc
657 2421 Concave disc
661 1354 Lower link connection
661 1372 Lower link connection
661 1380 Lower link connection
661 1386 Lower link connection
661 1388 Lower link connection
661 1389 Lower link connection
661 1395 Lower link connection
661 1405 Lower link connection
661 1406 Lower link connection
549 8849 Wheel 5/94/140 D14
549 8858 Wheel 5/94/140 D14
549 8859 Wheel 5/94/140 D14
549 8893 Bearing
647 2520 Depth wheel
647 2521 Depth wheel
647 7473 Wheel bracket
647 7474 Wheel bracket
647 7475 Wheel bracket
647 7524 Wheel arm
647 7525 Wheel arm
570 2050 Set of cables
670 1714 Lateral warning board
670 2020 Lighting equipment wirh boards
670 2048 Cable set with carrier
670 2050 Cable set with carrier
670 2051 Carrier for light extension
670 2054 Carrier for light extension
617 8147 Hydraulic locking device
575 2336 Hydraulic ram
575 2355 Hydraulic ram
575 6601 Adapter
675 7029 HY-assembly unlocking device
675 7031 Hydraulic assembly
675 7032 Conversion-set locking device
699 0707 Tools
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
Позиция на иллюстрации
Заводской номер детали
Название детали
1
301 1719
Bolt, cup square head
2
301 4020
Bolt
3
301 6130
Countersunk bolt
4
301 7334
Screw
5
303 0951
Nut
6
301 7760
U-bolt
7
303 0932
Selflocking nut
8
303 0934
Selflocking nut
9
303 0935
Selflocking nut
10
305 6012
Washer
11
305 6167
Washer
12
309 6072
Expansion bush
13
317 7699
Eccentric
14
319 9365
Bearing cpl.
15
349 2007
Synthetic scraper
16
422 2916
Support plate
17
422 2917
Support plate
18
422 6739
Frame
19
423 2164
Trapeze disc roller
20
423 5907
Carier for scraper
21
423 5908
Clamping plate
22
423 9043
Trapezring
23
459 4550
Clamping plate
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
