Каталог запасных частей к технике: Lemken Smaragd 9/400K. Locking device Smaragd 9/400 K

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано Achat 9/400 KA (2004) Achat 9/500 KA (2004) Achat 9/600 KA (2004) Azurit 9 (2018) Dolomit 9 (2010) EuroDiamant 10 (2010) EuroDiamant 10 X (2010) EuroDiamant 8 (2010) EuroGranat 5 (2006) EuroGranat 6 (2006) EuroGranat 7 (2006) EurOpal 5 (2010) EurOpal 5HX (2010) EurOpal 6 (2010) EurOpal 7 (2010) EurOpal 7, EurOpal 7HX (2018) EurOpal 7X (2010) EurOpal 7X, EurOpal 7 HydriX (2018) EurOpal 8 (2010) EurOpal 9 (2010) EuroTitan 10 (2010) EuroTitan 10X (2010) FixPack (2010) Gigant 1000 (2010) Gigant 1000 Smaragd (2010) Gigant 800 (2010) Gigant 800 S (2010) Gigant 800 S Rubin (2006) Gigant 800 Smaragd (2010) Heliodor 9/600KA (2018) Heliodor 9/700KA (2018) Juwel 8M (2018) Karat 9/600 KA (2016) Kristall 9/500KA (2016) Kristall 9/600KA (2016) OptiDisc 25 (2018) Primus 10 (Часть 1) (2017) Primus 10 (Часть 2) (2017) Quarz 7/250 (2010) Quarz 7/250 F (2010) Quarz 7/300 (2010) Quarz 7/300F (2010) Quarz 7/400 (2010) Quarz 7/400F (2010) Quarz 7/400K (2010) Quarz 7/400KA (2010) Quarz 7/500K (2010) Quarz 7/500KA (2010) Quarz 7/600K (2010) Rubin 10/600 KUA (2018) Rubin 10/700 KUA (2018) Rubin 12/400 KUA (A) (2018) Rubin 12/500 KUA (A) (2018) Rubin 12/600 KUA (A) (2018) Rubin 12/700 KUA (2018) Rubin 9/300 U (2004) Rubin 9/400 U (2004) Saphir 7/300 (2010) Saphir 7/400 (2010) Smaragd 7/260 (2010) Smaragd 7/300 (2010) Smaragd 9/300 (2010) Smaragd 9/400 (2010) Smaragd 9/400 (2016) Smaragd 9/400 K (2016) Smaragd 9/400K (2010) Smaragd 9/450K (2010) Smaragd 9/500 K (2016) Smaragd 9/500K (2004) Smaragd 9/600 K (2016) Smaragd 9/600K (2010) Smaragd 9/600KA (2010) Solitair 10/600K (2006) Solitair 12/1000K (2007) Solitair 12/1200K (2008) Solitair 12/1200KD (2018) Solitair 12/5800SW (2018) Solitair 12/800K (2006) Solitair 12/900K (2007) Solitair 8/300 (2004) Solitair 8/300 (2014) Solitair 8/400 (2004) Solitair 9/300 (2004) Solitair 9/400 (2004) Solitair 9/400K (2004) Solitair 9/400KA (2004) Solitair 9/450K (2004) Solitair 9/450KA (2004) Solitair 9/500K (2004) Solitair 9/500KA (2009) Solitair 9/600K (2004) Solitair 9/600KA (2004) System-Kompaktor Gigant 1000 (2010) System-Kompaktor Gigant 800 (2010) System-Kompaktor K450 (2010) System-Kompaktor K450A (2010) System-Kompaktor K500 (2010) System-Kompaktor K500A (2010) System-Kompaktor K600 (2010) System-Kompaktor K600A (2010) System-Kompaktor S300 (2010) System-Kompaktor S400 (2010) System-Korund 300 L (2010) System-Korund 450 L (2010) System-Korund 600 L (2010) System-Korund 750 K (750 L) (2010) System-Korund 900 K (2010) System-Korund 900 L (2010) Thorit 8/300 (2005) Thorit 8/300 Combi-Liner (2004) Thorit 8/400 (2010) Thorit 8/400 Combi-Liner (2004) Thorit 9/400 K (2004) Thorit 9/400 KA (2003) Thorit 9/450 K (2004) Thorit 9/500 K (2004) Thorit 9/500 KA (2003) Thorit 9/600 K (2004) Thorit 9/600 KA (2003) Topas 140-A (2010) Vari-Diamant 10 (2004) Vari-Diamant 10X (2004) Vari-Opal 100 (2014) Vari-Opal 100HX (2014) Vari-Opal 100X (2014) Vari-Opal 160 (2014) Vari-Opal X160 (2014) Vari-Titan 10 (2010) Vari-Turmalin 10 (2005) Vari-Turmalin 10X (2005) Variopack 110DP70 (2010) Variopack 110DP90 (2010) Variopack 110EP90 (2010) Variopack 110FEPK700 (2010) Variopack 80DP70 (2010) Variopack S 110DP70 (2010) VariOpal 5 (2010) VariOpal 7 (2010) VariOpal 7X (2010) VariOpal 8 (2010) VariOpal 8X (2010) VariOpal 9 (2010) VariOpal 9X (2010) Zirkon 10/300 (2010) Zirkon 10/400 (2010) Zirkon 10/400K (2010) Zirkon 10/450 (2010) Zirkon 10/450K (2010) Zirkon 10/450KA (2010) Zirkon 10/500K (2010) Zirkon 10/500KA (2010) Zirkon 10/600KA (2010) Zirkon 7/250 (2010) Zirkon 7/300 (2010) Zirkon 7/400 (2010) Zirkon 9/300 (2010) Zirkon 9/400 (2010) Zirkon 9/600K "B" (2010)

Схема > Не выбрано Smaragd 9/400K Top link pin KAT3 D31,5x140 Top link pin with chain KAT2GL D25,4/31,7x173 Top link pin with chain KAT3GL D31,7/25,4x173 Top link pin with chain K700 D40/44,5x228 Top link pin with chain KAT3GK700 31,7x228 Carrier, 1 pair 120x2095-80x20 Smaragd 9 KU Carrier, 1 pair 120x1795-80x20 Smaragd 9 K Carrier, 1 pair 120x1795-100x20 SM9K-D600 Carrier, 1 pair 120x2095-100x20 SM9UK-D600 Carrier, 1 pair for harrow 120x1795-80x20 SM-9K Carrier, 1 pair for harrow 120x2095-80x20 Smaragd 9 KU Carrier 1795 Smaragd 9/400 K Carrier 2095 Smaragd 9/400 KU Carrier 120x1795-60x20 Smaragd 9 K Carrier 2095 Smaragd 9 KU Carrier-T for double roller 1795 Smaragd 9 K Carrier-T for double roller 2095 Smaragd 9 K Frame for hollow discs 2x SM9/400 Bracket for outer disc RE 80x80 SM9 Bracket for outer disc LI 80x80 SM9 Basic frame Smaragd 9/400-K Stand 70x1940 Smaragd 9/400 K Fittings for AHG Smaragd 9 Adapter-inner thread ZPW-SM9/400 RE+LI Holder GRW-GR D590-90 Levelling type harrow STR80-400 S+K Tube bar roller D540-200 RE SM9 Tube bar roller D540-200 LI SM9 Tube bar roller D400-200 SM9 Tube bar roller D600-200 SM9 RE Tube bar roller D600-200 SM9 LI Double roller D400-200 RE SM9 Double roller D400-200 LI SM9 Double roller D400-200 RE SM9 Double roller D400-200 LI SM9 Packer roller ZPW D500-2,0m Trapeze packer roller TPW D500-200-16R125 Packer roller, short scraper ZPW D500-2,0m Trapeze packer roller TPW D500-200-13R150 Trapeze packer roller TPW D500-200-14R150 Trapeze packer roller TPW D500-200-11R175 Trapeze packer roller TPW D500-200-12R175 Trapeze disc roller TSW D500-200-16R-125 Knife roller MSW D600-200 RE SM9 Knife roller MSW D600-200 LI SM9 Knife roller MSW D600-200 RE SM9 Knife roller MSW D600-200 LI SM9 Double roller D540/400-2.00 RE Double roller D540/400-2.00 LI Rubber ring roller GRW D590-200-16R-125 Trip device 100x22-A SM90+9 Trip device D30G-20 206-Drehpunkt SM.9 Trip device D30G-20 150-Drehpunkt SM.9 Trip device 50x18 SM9 Headstock KAT2+3 Smaragd 9 K Headstock K700 + KAT3 Smaragd 9 K Headstock A KAT2+3 Smaragd 9K Headstock K700+KAT3 Smaragd 9K Headstock A KAT2+3 +Hitch Smaragd 9K Pair of hollow discs 2xD450 Smaragd 9 Hollow disc RE D450 Smaragd 9 Hollow disc LI D450 Smaragd 9 Lower link connection D55/68 L2 Z3 Lower link connection D68/68 L3 Z3 Lower link connection D68/68 L1100 Z58 K700 Lower link connection E55 L2 Z3 Lower link connection E68 L3 Z3 Lower link connection E68 L1100 Z58 K700 Lower link connection E55FH L2 Z3 Lower link connection E68FH L3 Z3 Depth limiter K700 D68 Tools Smaragd 9/400-500 Set of cables Smaragd 9 K Lighting equipment with boards AL18 HR+HL+VR+VL Cable set with carrier Smaragd 9/450K 9/500K Cable set with carrier Smaragd 9-K U Carrier for light extension 50x15x286 Carrier for light extension GRW 590 60x15x420 60° Locking device Smaragd 9/400 K Hydraulic locking device Smaragd 9/400K-600K Adapter-inner thread K700 Hydraulic assembly Smaragd-9 80x320 HY-assembly unlocking device DZ25/18-240 Smaragd 9/400 K Conversion-set locking device URS-HY Smaragd 9/400 K Parts for front headstock Smaragd 9 K Front headstock KAT2 Smaragd 9 Wheel 5/94/140 D14 195R15 D650x198 4PR ET-0 Depth wheel 10.0/80-12 70x30 Depth wheel 195 R15 70x30 Wheel bracket 70x30 Smaragd 9 Wheel bracket 70x30 RE Smaragd 9K Wheel bracket 70x30 LI Smaragd 9K Wheel arm RE 70x30 Topas 140 Wheel arm LI 70x30 Topas 140

1

2

3

4

5

6

7

8

9

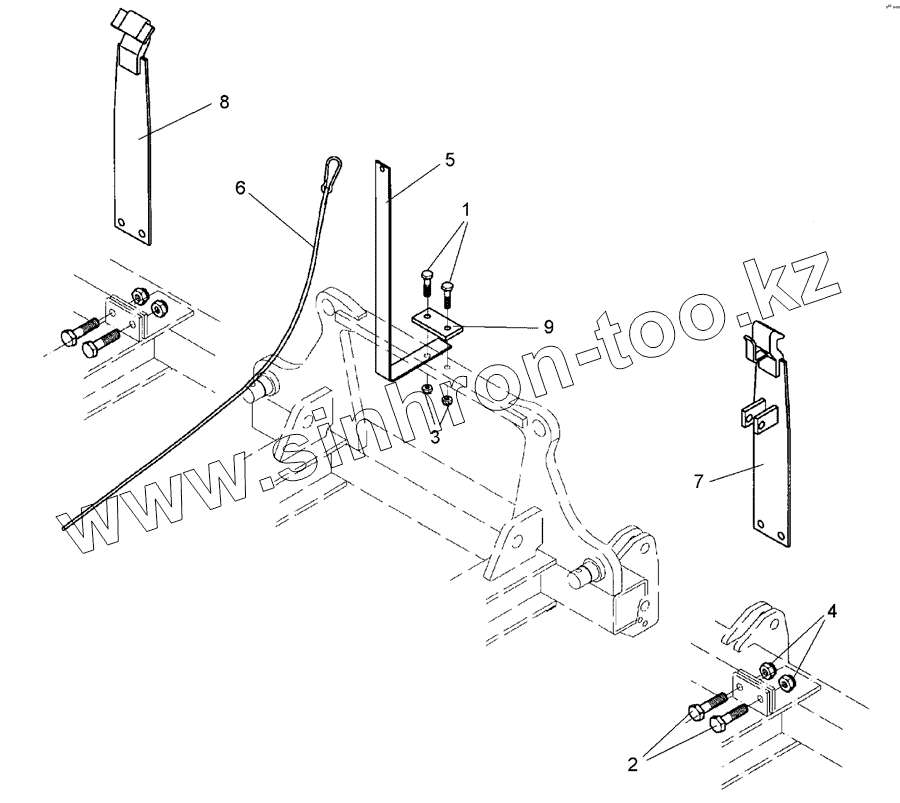

Позиция на иллюстрации	Заводской номер детали		Название детали
1	301 3379		Bolt
2	301 5388		Bolt
3	303 0934		Selflocking nut
4	303 0935		Selflocking nut
5	329 1812		U-spring
6	331 4910		Tackle
7	417 8145		Leaf spring with angle
8	417 8146		Leaf spring with lashing
9	459 1110		Clamp plate

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
