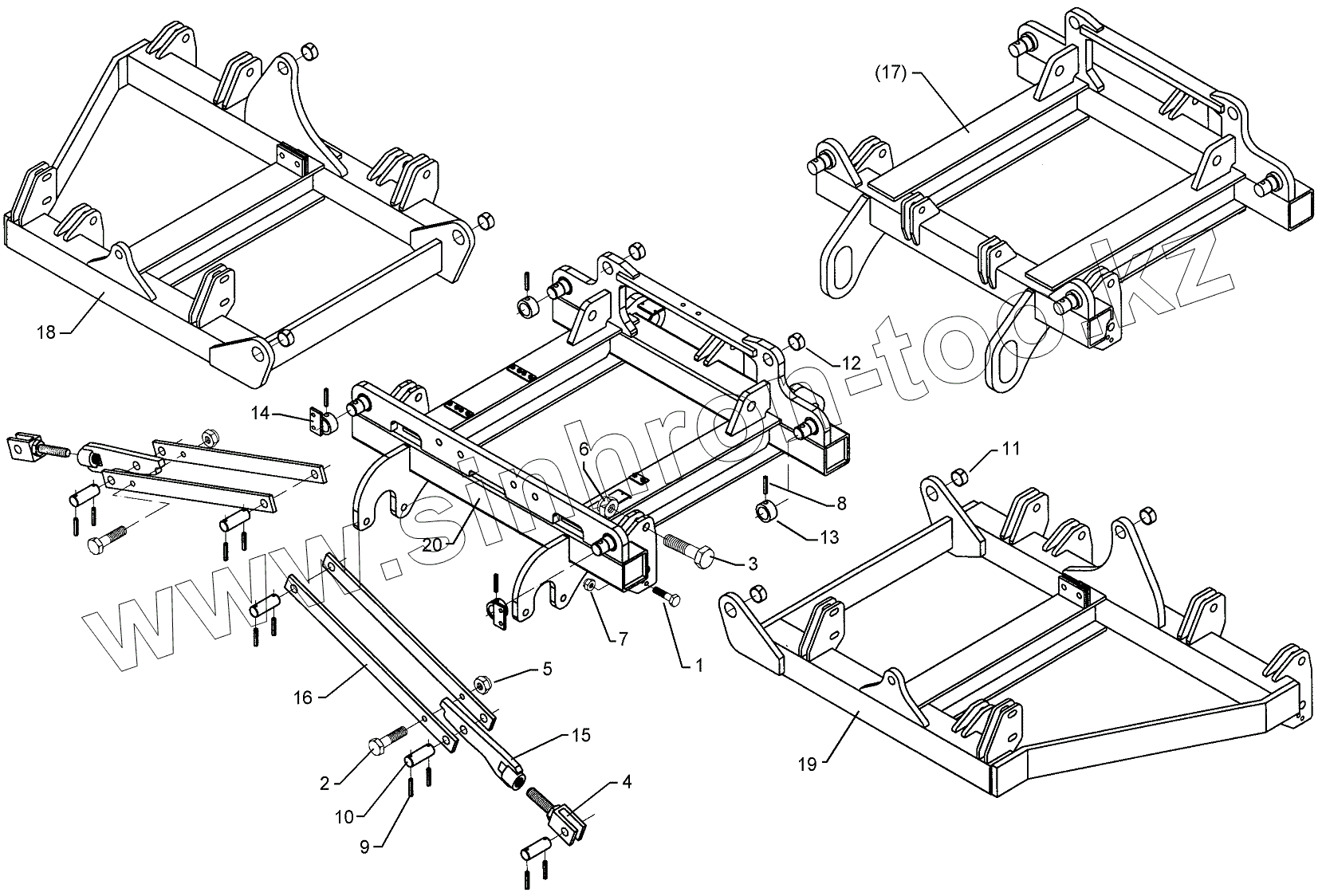

617 8212 Basic frame
Каталог запасных частей к технике: Lemken Smaragd 9/400 K. 617 8212 Basic frame
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
AGCO
Amity
CASE IH
DongFeng
Fortschritt
Foton
Franz Kleine
Gaspardo
Great Plains
KRONE
KUHN
Lemken
Lovol
MacDon
Massey Ferguson
New Holland
TIGARBO
Vaderstad
Versatile
Wirax
Агро
Агротехмаш
Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш»)
БЭМЗ
ВгТЗ
Воронежсельмаш
ВТЗ
Гомсельмаш
ДКЗ
ЗАО "Техника-сервис"
ЗиД
КЗК
Кировец-Ландтехник
Клевер
Красная Звезда
Лидагропроммаш
Лидсельмаш
ЛТЗ
Машстройхолдинг
Минитракторы
Мордовагромаш
МТЗ
Навигатор-Новое машиностроение
Нефтекамский автозавод
ПТЗ
Ремком
РСМ
Сибсельмаш
ТеКЗ
ТКЗ
ХЗТСШ
ХТЗ
ЮМЗ
Модель
Не выбрано
Achat 9/400 KA (2004)
Achat 9/500 KA (2004)
Achat 9/600 KA (2004)
Azurit 9 (2018)
Dolomit 9 (2010)
EuroDiamant 10 (2010)
EuroDiamant 10 X (2010)
EuroDiamant 8 (2010)
EuroGranat 5 (2006)
EuroGranat 6 (2006)
EuroGranat 7 (2006)
EurOpal 5 (2010)
EurOpal 5HX (2010)
EurOpal 6 (2010)
EurOpal 7 (2010)
EurOpal 7, EurOpal 7HX (2018)
EurOpal 7X (2010)
EurOpal 7X, EurOpal 7 HydriX (2018)
EurOpal 8 (2010)
EurOpal 9 (2010)
EuroTitan 10 (2010)
EuroTitan 10X (2010)
FixPack (2010)
Gigant 1000 (2010)
Gigant 1000 Smaragd (2010)
Gigant 800 (2010)
Gigant 800 S (2010)
Gigant 800 S Rubin (2006)
Gigant 800 Smaragd (2010)
Heliodor 9/600KA (2018)
Heliodor 9/700KA (2018)
Juwel 8M (2018)
Karat 9/600 KA (2016)
Kristall 9/500KA (2016)
Kristall 9/600KA (2016)
OptiDisc 25 (2018)
Primus 10 (Часть 1) (2017)
Primus 10 (Часть 2) (2017)
Quarz 7/250 (2010)
Quarz 7/250 F (2010)
Quarz 7/300 (2010)
Quarz 7/300F (2010)
Quarz 7/400 (2010)
Quarz 7/400F (2010)
Quarz 7/400K (2010)
Quarz 7/400KA (2010)
Quarz 7/500K (2010)
Quarz 7/500KA (2010)
Quarz 7/600K (2010)
Rubin 10/600 KUA (2018)
Rubin 10/700 KUA (2018)
Rubin 12/400 KUA (A) (2018)
Rubin 12/500 KUA (A) (2018)
Rubin 12/600 KUA (A) (2018)
Rubin 12/700 KUA (2018)
Rubin 9/300 U (2004)
Rubin 9/400 U (2004)
Saphir 7/300 (2010)
Saphir 7/400 (2010)
Smaragd 7/260 (2010)
Smaragd 7/300 (2010)
Smaragd 9/300 (2010)
Smaragd 9/400 (2010)
Smaragd 9/400 (2016)
Smaragd 9/400 K (2016)
Smaragd 9/400K (2010)
Smaragd 9/450K (2010)
Smaragd 9/500 K (2016)
Smaragd 9/500K (2004)
Smaragd 9/600 K (2016)
Smaragd 9/600K (2010)
Smaragd 9/600KA (2010)
Solitair 10/600K (2006)
Solitair 12/1000K (2007)
Solitair 12/1200K (2008)
Solitair 12/1200KD (2018)
Solitair 12/5800SW (2018)
Solitair 12/800K (2006)
Solitair 12/900K (2007)
Solitair 8/300 (2004)
Solitair 8/300 (2014)
Solitair 8/400 (2004)
Solitair 9/300 (2004)
Solitair 9/400 (2004)
Solitair 9/400K (2004)
Solitair 9/400KA (2004)
Solitair 9/450K (2004)
Solitair 9/450KA (2004)
Solitair 9/500K (2004)
Solitair 9/500KA (2009)
Solitair 9/600K (2004)
Solitair 9/600KA (2004)
System-Kompaktor Gigant 1000 (2010)
System-Kompaktor Gigant 800 (2010)
System-Kompaktor K450 (2010)
System-Kompaktor K450A (2010)
System-Kompaktor K500 (2010)
System-Kompaktor K500A (2010)
System-Kompaktor K600 (2010)
System-Kompaktor K600A (2010)
System-Kompaktor S300 (2010)
System-Kompaktor S400 (2010)
System-Korund 300 L (2010)
System-Korund 450 L (2010)
System-Korund 600 L (2010)
System-Korund 750 K (750 L) (2010)
System-Korund 900 K (2010)
System-Korund 900 L (2010)
Thorit 8/300 (2005)
Thorit 8/300 Combi-Liner (2004)
Thorit 8/400 (2010)
Thorit 8/400 Combi-Liner (2004)
Thorit 9/400 K (2004)
Thorit 9/400 KA (2003)
Thorit 9/450 K (2004)
Thorit 9/500 K (2004)
Thorit 9/500 KA (2003)
Thorit 9/600 K (2004)
Thorit 9/600 KA (2003)
Topas 140-A (2010)
Vari-Diamant 10 (2004)
Vari-Diamant 10X (2004)
Vari-Opal 100 (2014)
Vari-Opal 100HX (2014)
Vari-Opal 100X (2014)
Vari-Opal 160 (2014)
Vari-Opal X160 (2014)
Vari-Titan 10 (2010)
Vari-Turmalin 10 (2005)
Vari-Turmalin 10X (2005)
Variopack 110DP70 (2010)
Variopack 110DP90 (2010)
Variopack 110EP90 (2010)
Variopack 110FEPK700 (2010)
Variopack 80DP70 (2010)
Variopack S 110DP70 (2010)
VariOpal 5 (2010)
VariOpal 7 (2010)
VariOpal 7X (2010)
VariOpal 8 (2010)
VariOpal 8X (2010)
VariOpal 9 (2010)
VariOpal 9X (2010)
Zirkon 10/300 (2010)
Zirkon 10/400 (2010)
Zirkon 10/400K (2010)
Zirkon 10/450 (2010)
Zirkon 10/450K (2010)
Zirkon 10/450KA (2010)
Zirkon 10/500K (2010)
Zirkon 10/500KA (2010)
Zirkon 10/600KA (2010)
Zirkon 7/250 (2010)
Zirkon 7/300 (2010)
Zirkon 7/400 (2010)
Zirkon 9/300 (2010)
Zirkon 9/400 (2010)
Zirkon 9/600K "B" (2010)
Схема
>
Не выбрано
313 7878 CONTENTS
313 7878 Top link pin
313 7913 Top link pin with chain
313 7923 Top link pin with chain
313 7927 Top link pin with chain
313 7929 Top link pin with chain
617 8078 Carrier
617 8086 Carrier
617 8089 Carrier
617 8090 Carrier
617 8110 Carrier, 1 pair for harrow
617 8111 Carrier, 1 pair for harrow
617 8120 Carrier
617 8121 Carrier
617 8122 Carrier T-profile
617 8123 Carrier T-profile
617 8124 Carrier for double roller
617 8125 Carrier for double roller
617 8156 Frame for hollow discs
657 2424 Bracket for outer disc
657 2425 Bracket for outer disc
617 8212 Basic frame
629 4620 Stand
690 1201 Package parts
617 8182 Adapter
622 0150 Holder
622 0152 Holder
622 0184 Holder
622 0188 Holder
622 1036 Stabilizer
640 5220 Headstock
640 5221 Headstock
640 5226 Headstock
640 5227 Headstock
640 5229 Headstock
670 5070 Transport protection
617 8145 Locking device
640 8354 Parts for front headstock
640 8355 Front headstock
321 6964 Eccentric lever
622 6382 Levelling type harrow
661 6160 Depth limiter
622 6604 Tube bar roller
622 6605 Tube bar roller
622 6612 Tube bar roller
622 6622 Tube bar roller
622 6623 Tube bar roller
622 6684 Double roller
622 6685 Double roller
622 6702 Double roller
622 6703 Double roller
622 6720 Toothed packer roller
622 6736 Trapeze packer roller
622 6741 Packer roller, short scraper
622 6748 Trapeze packer roller
622 6749 Trapeze packer roller
622 6755 Trapeze packer roller
622 6756 Trapeze packer roller
622 6777 Trapeze disc roller
622 6804 Knife roller
622 6805 Knife roller
622 6814 Knife roller
622 6815 Knife roller
622 6852 Double roller
622 6853 Double roller
622 6870 Rubber ring roller
622 6884 Knife roller
622 6885 Knife roller
622 6914 Knife roller
622 6915 Knife roller
622 7252 Tube bar roller
622 7262 Tube bar roller
622 7263 Tube bar roller
622 7278 Tube bar roller
622 7279 Tube bar roller
622 7308 Double roller
622 7309 Double roller
622 7358 Double roller
622 7359 Double roller
622 7394 Double profile roller
622 7395 Double profile roller
622 7430 Toothed packer roller
622 7434 Packer roller, short scraper
622 7440 Trapeze packer roller
622 7444 Trapeze packer roller
622 7445 Trapeze packer roller
622 7446 Trapeze packer roller
622 7464 Double profile roller
622 7465 Double profile roller
622 7530 Packer roller
622 7531 Packer roller
622 7534 Packer roller
622 7535 Packer roller
622 8308 Double roller
622 8309 Double roller
627 5687 Overload safety device
627 5726 Overload safety device
627 5728 Overload safety device
627 5695 Overload safety device
657 2418 Pair of hollow discs
657 2420 Concave disc
657 2421 Concave disc
661 1354 Lower link connection
661 1372 Lower link connection
661 1380 Lower link connection
661 1386 Lower link connection
661 1388 Lower link connection
661 1389 Lower link connection
661 1395 Lower link connection
661 1405 Lower link connection
661 1406 Lower link connection
549 8849 Wheel 5/94/140 D14
549 8858 Wheel 5/94/140 D14
549 8859 Wheel 5/94/140 D14
549 8893 Bearing
647 2520 Depth wheel
647 2521 Depth wheel
647 7473 Wheel bracket
647 7474 Wheel bracket
647 7475 Wheel bracket
647 7524 Wheel arm
647 7525 Wheel arm
570 2050 Set of cables
670 1714 Lateral warning board
670 2020 Lighting equipment wirh boards
670 2049 Cable set with carrier
670 2050 Cable set with carrier
670 2051 Carrier for light extension
670 2054 Carrier for light extension
617 8147 Hydraulic locking device
575 2266 Hydraulic ram
575 2298 Hydraulic ram
575 2336 Hydraulic ram
575 6601 Adapter
675 7030 Hydraulic assembly
675 7035 HY-assembly unlocking device
675 7036 Conversion-set locking device
699 0704 Tools
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Позиция на иллюстрации
Заводской номер детали
Название детали
1
301 3399
Bolt
2
301 5363
Hexagon bolt
3
301 4692
Hexagon bolt
4
302 8962
Forkpiece
5
303 0935
Selflocking nut
6
303 0937
Selflocking nut
7
303 1013
Nut
8
309 7000
Expansion bush
9
309 6211
Expansion bush
10
313 7770
Pin
11
317 2005
Expansion bush
12
317 3417
Expansion bush
13
317 8641
Adjusting ring
14
317 8642
Adjusting ring with lashing
15
417 8140
Joint
16
417 8142
Drawrod
17
417 8209
Center section
18
417 8212
Lateral part
19
417 8213
Lateral part
20
417 8226
Center section
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
