Quarz 7/600 K

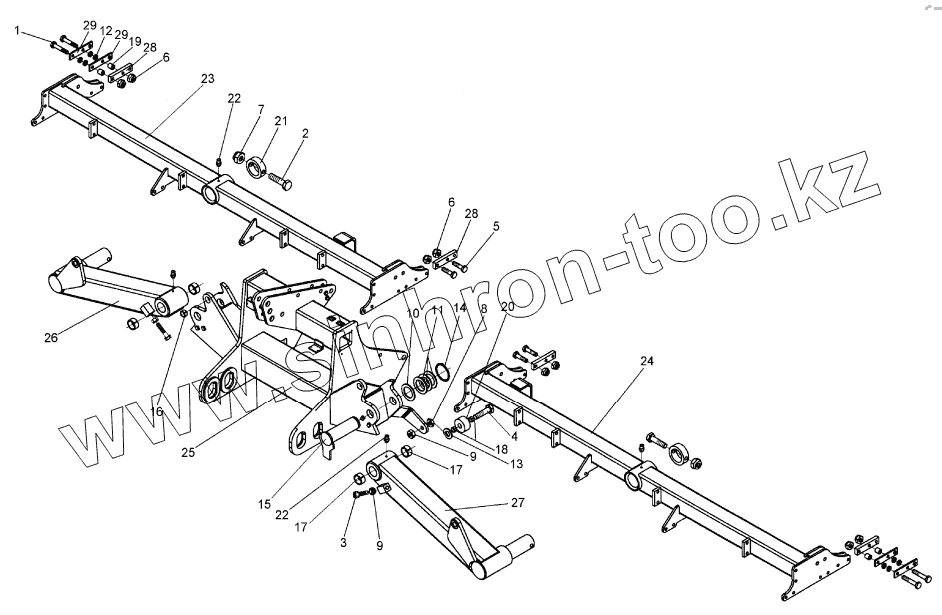

Basic frame Quarz 7/600 K
Stand 60x20x555
Holder for track scraper FSU 110x110 Quarz 7/K+KA
Support 26,9x277 1x90 D16,25
Top link pin with chain KAT2G D25,4/31,7x158
Top link pin with chain KAT3G D31,7/25,4x158
Harrow section 3m RE Quarz 7/600 K+KA
Harrow section 3m LI Quarz 7/600 K+KA
Harrow section 3m RE Quarz 7/600 K+KA
Harrow section 3m LI Quarz 7/600 K+KA
Harrow section 3m RE Quarz 7/600 K+KA
Harrow section 3m LI Quarz 7/600 K+KA
Harrow section 3m RE Quarz 7/600 K+KA
Harrow section 3m LI Quarz 7/600 K+KA
Trailing bar Quarz 7/600 K+KA
Holder set Quarz 7 Front
Adjuster Zirkon 9/600-K 9ST
Carrier TPW+ZPW500 Quarz 7
Carrier RSW 540
Holder Quarz 7/K
Tube bar roller RSW D400-3,0m
Packer roller ZPW D500-3,0m
Tube bar roller RSW D540-3,0m
Trapezering roller TRW D500-300-B-24R
Trapezering roller TRW D500-300-B-17R
Trapeze packer roller TPW D500-300-24R-125
Packer roller, short scraper ZPW D500-3,0m
Trapeze disc roller TSW D500-300-24R-125
Holder for track scraper FSU 70x70-40x20
Holder 70x70x255
Holder 110x283
Track scraper FSU-VS33 Quarz
Track scraper FSU+G25 40x20 Sy-Korund
Track scraper FSU P50/6 Sy-Korund
Track scraper with holder FSU+G25 40x20 Sy-Korund
Track scraper with holder FSU P50/6 Sy-Korund
Track scraper with holder FSU VS33 Quarz
Track scraper with holder FSU+G25 40x20 Quarz
Track scraper with holder FSU P50/6 Quarz
Track scraper with holder FSU P50/6 Quarz
Track scraper with holder FSU+G25 40x20 Quarz
Lower link connection D68/P L2 Z3
Lower link connection D68/P L3 Z3
Fittings FK Solitair/Zirkon 9
Fittings Zirkon 9-Solitair KA
Hydraulic lift linkage Zirkon 9-K-AHG-ST
Turnbuckle TG-370-M
Hydraulic lift linkage Zirkon 9-K Saschiene
Front headstock FAB-Zirkon 9/9K L2
Front headstock FAB-Quarz 7K L2
Hydraulic assembly Ouarz 7/600
Hydraulic assembly Quarz 7/600 K
Hydraulic assembly SA 80x320-AHG-ST
Hydraulic assembly SA 90x320-AHG-ST
Hydraulic assembly DA 80x320-AHG-ST
Hydraulic assembly DA 90x320-AHG-ST
Hydraulic assembly DA 2x63x245 HG-ST
Conversion-set lift limiter AHG-HB
HY-assembly track marker Zirkon 9/600-K
Shield Quarz 7
Carrier for light LH 14
Lighting equipment, front Zirkon 9/K
Lighting equipment with boards HR+HL 4m
Transport protection Zirkon 9-K
Transport protection Zirkon 9-K
Transport protection Quarz 7/K+KA
Axle for track marker D30x595 668A
Holder Quarz 7/600 K+KA
Feeding disc D450/60x20 RE Zirkon
Feeding disc D450/60x20 LI Zirkon
Track marker Solitair FW450/Z600 D380
Intermediate bracket Zirkon 500/K+600/K
1
2
3
4
5
6
6
7
8
9
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
22
23
24
25
26
27
28
28
29
29
Позиция на иллюстрации
Заводской номер детали
Название детали
1
301 3870
Bolt
2
301 4478
Bolt
3
301 4269
Screw
4
301 4407
Bolt
5
301 4038
Bolt
6
303 0935
Selflocking nut
7
303 0936
Selflocking nut
8
303 0959
Nut
9
303 0978
Nut
10
305 2155
Shim
11
305 2255
Supporting washer
12
305 6155
Washer
13
305 6320
Washer
14
305 8877
Securing ring
15
313 5035
Pin with stop
16
317 3417
Expansion bush
17
317 2024
Expansion bush
18
317 6657
Bush
19
317 6801
Tube
20
317 9636
Roller
21
317 8697
Adjusting ring
22
323 6348
Grease nipple
23
410 6348
Frame
24
410 6349
Frame
25
410 6350
Center section
26
410 6754
Lateral part
27
410 6755
Lateral part
28
422 2698
Holder
29
422 2699
Lashing
