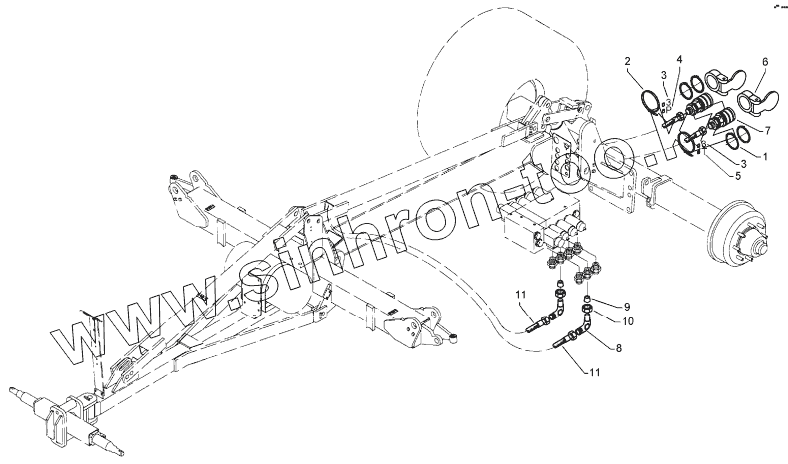

Каталог запасных частей к технике: Lemken Quarz 7/500KA. HY-pipe assembly Quarz 7/KA

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано Achat 9/400 KA (2004) Achat 9/500 KA (2004) Achat 9/600 KA (2004) Azurit 9 (2018) Dolomit 9 (2010) EuroDiamant 10 (2010) EuroDiamant 10 X (2010) EuroDiamant 8 (2010) EuroGranat 5 (2006) EuroGranat 6 (2006) EuroGranat 7 (2006) EurOpal 5 (2010) EurOpal 5HX (2010) EurOpal 6 (2010) EurOpal 7 (2010) EurOpal 7, EurOpal 7HX (2018) EurOpal 7X (2010) EurOpal 7X, EurOpal 7 HydriX (2018) EurOpal 8 (2010) EurOpal 9 (2010) EuroTitan 10 (2010) EuroTitan 10X (2010) FixPack (2010) Gigant 1000 (2010) Gigant 1000 Smaragd (2010) Gigant 800 (2010) Gigant 800 S (2010) Gigant 800 S Rubin (2006) Gigant 800 Smaragd (2010) Heliodor 9/600KA (2018) Heliodor 9/700KA (2018) Juwel 8M (2018) Karat 9/600 KA (2016) Kristall 9/500KA (2016) Kristall 9/600KA (2016) OptiDisc 25 (2018) Primus 10 (Часть 1) (2017) Primus 10 (Часть 2) (2017) Quarz 7/250 (2010) Quarz 7/250 F (2010) Quarz 7/300 (2010) Quarz 7/300F (2010) Quarz 7/400 (2010) Quarz 7/400F (2010) Quarz 7/400K (2010) Quarz 7/400KA (2010) Quarz 7/500K (2010) Quarz 7/500KA (2010) Quarz 7/600K (2010) Rubin 10/600 KUA (2018) Rubin 10/700 KUA (2018) Rubin 12/400 KUA (A) (2018) Rubin 12/500 KUA (A) (2018) Rubin 12/600 KUA (A) (2018) Rubin 12/700 KUA (2018) Rubin 9/300 U (2004) Rubin 9/400 U (2004) Saphir 7/300 (2010) Saphir 7/400 (2010) Smaragd 7/260 (2010) Smaragd 7/300 (2010) Smaragd 9/300 (2010) Smaragd 9/400 (2010) Smaragd 9/400 (2016) Smaragd 9/400 K (2016) Smaragd 9/400K (2010) Smaragd 9/450K (2010) Smaragd 9/500 K (2016) Smaragd 9/500K (2004) Smaragd 9/600 K (2016) Smaragd 9/600K (2010) Smaragd 9/600KA (2010) Solitair 10/600K (2006) Solitair 12/1000K (2007) Solitair 12/1200K (2008) Solitair 12/1200KD (2018) Solitair 12/5800SW (2018) Solitair 12/800K (2006) Solitair 12/900K (2007) Solitair 8/300 (2004) Solitair 8/300 (2014) Solitair 8/400 (2004) Solitair 9/300 (2004) Solitair 9/400 (2004) Solitair 9/400K (2004) Solitair 9/400KA (2004) Solitair 9/450K (2004) Solitair 9/450KA (2004) Solitair 9/500K (2004) Solitair 9/500KA (2009) Solitair 9/600K (2004) Solitair 9/600KA (2004) System-Kompaktor Gigant 1000 (2010) System-Kompaktor Gigant 800 (2010) System-Kompaktor K450 (2010) System-Kompaktor K450A (2010) System-Kompaktor K500 (2010) System-Kompaktor K500A (2010) System-Kompaktor K600 (2010) System-Kompaktor K600A (2010) System-Kompaktor S300 (2010) System-Kompaktor S400 (2010) System-Korund 300 L (2010) System-Korund 450 L (2010) System-Korund 600 L (2010) System-Korund 750 K (750 L) (2010) System-Korund 900 K (2010) System-Korund 900 L (2010) Thorit 8/300 (2005) Thorit 8/300 Combi-Liner (2004) Thorit 8/400 (2010) Thorit 8/400 Combi-Liner (2004) Thorit 9/400 K (2004) Thorit 9/400 KA (2003) Thorit 9/450 K (2004) Thorit 9/500 K (2004) Thorit 9/500 KA (2003) Thorit 9/600 K (2004) Thorit 9/600 KA (2003) Topas 140-A (2010) Vari-Diamant 10 (2004) Vari-Diamant 10X (2004) Vari-Opal 100 (2014) Vari-Opal 100HX (2014) Vari-Opal 100X (2014) Vari-Opal 160 (2014) Vari-Opal X160 (2014) Vari-Titan 10 (2010) Vari-Turmalin 10 (2005) Vari-Turmalin 10X (2005) Variopack 110DP70 (2010) Variopack 110DP90 (2010) Variopack 110EP90 (2010) Variopack 110FEPK700 (2010) Variopack 80DP70 (2010) Variopack S 110DP70 (2010) VariOpal 5 (2010) VariOpal 7 (2010) VariOpal 7X (2010) VariOpal 8 (2010) VariOpal 8X (2010) VariOpal 9 (2010) VariOpal 9X (2010) Zirkon 10/300 (2010) Zirkon 10/400 (2010) Zirkon 10/400K (2010) Zirkon 10/450 (2010) Zirkon 10/450K (2010) Zirkon 10/450KA (2010) Zirkon 10/500K (2010) Zirkon 10/500KA (2010) Zirkon 10/600KA (2010) Zirkon 7/250 (2010) Zirkon 7/300 (2010) Zirkon 7/400 (2010) Zirkon 9/300 (2010) Zirkon 9/400 (2010) Zirkon 9/600K "B" (2010)

Схема > Не выбрано Quarz 7/500 KA Basic frame Quarz 7/500 KA Stand 70x22/110x110x600 Holder for track scraper FSU 110x110 Quarz 7/K+KA Braking axle GS12008 55.72.448.000 Running axle GS7008 55.67.001.014 Wheel 8/221/575 Trelleborg 550/60-22.5 12PR/RE Wheel 8/221/575 Trelleborg 550/60-22.5 12PR/LI Wheel 8/221/575 12,5/80-18 12PR AW Wheel 8/221/575 Alliance 700/50-22,5 12PR ET0 Wheel 8/221/575 Alliance 700/50-22,5 12PR ET0 Deichsel Kompaktor KA C Deichsel Kompaktor KA C KG45 Trailer Quarz 7/400-600 KA Harrow section 2,5m Quarz 7/500 K+KA Harrow section 2,5m Quarz 7/500 K+KA Harrow section 2,5m RE Quarz 7/500 K+KA Harrow section 2,5m LI Quarz 7/500 K+KA Harrow section 2,5m RE Quarz 7/500 K+KA Harrow section 2,5m LI Quarz 7/500 K+KA Harrow section 2,5m RE Quarz 7/500 K+KA Harrow section 2,5m LI Quarz 7/500 K+KA Trailing bar Quarz 7/500 K+KA Feeding disc D450/60x20 RE Zirkon Feeding disc D450/60x20 LI Zirkon Adjuster Zirkon 9/500-K 9ST Carrier TPW+ZPW500 Quarz 7 Carrier RSW 540 Packer roller ZPW D500-2,5m Tube bar roller RSW D540-2.50 Tube bar roller D600-250 Quarz 7/K+KA Trapezering roller TRW D500-250-B-20R Trapeze packer roller TPW D500-250-20R125 Packer roller, short scraper ZPW D500-2,5m Trapeze packer roller TPW D500-250-17R150 Trapeze disc roller TSW D500-250-20R-125 Rubber ring roller GRW D590-250-20R-125 Holder for track scraper FSU 70x70-40x20 Track scraper FSU-VS33 Quarz Track scraper FSU+G25 40x20 Sy-Korund Track scraper FSU P50/6 Sy-Korund Track scraper with holder FSU+G25 40x20 Sy-Korund Track scraper with holder FSU P50/6 Sy-Korund Track scraper with holder FSU VS33 Quarz Lower link connection ED68/55 L2 Z2 Lower link connection ED68/55 L3 Z2 Lower link connection ED68 L2 Z3 Lower link connection ED68 L3 Z3 Lower link connection ED68 L1100 Z58 K700 Depth limiter K700-B M24 Depth limiter K700 -B M30 Kupplungsteil FK 140x140 (Solitair 9KA) Kupplungsteil FK 150x150x120 (Solitair 9KA) Turnbuckle TG-370-M Hydraulic lift linkage D50x200 L2 Z2 Three-way pressure balance LU8SSCK-QM22/04 Valve 6/3 LD8SE4D2525 Seat valve SVH04M878SA-OM14G12 Hydraulic assembly Ouarz 7/500 K Hydraulic assembly Quarz 7/500 KA HY-assembly lift linkage DZ 110x450 HY-assembly lift linkage DZ 110x450 HY-assembly track marker Zirkon 9/500 KA-US Hydraulic braking assembly EZ 30x110 Quarz 7/KA HY-pipe assembly folding Quarz 7/KA HY-pipe assembly. 6/2 valve Quarz 7/KA HY-pipe assembly Quarz 7/KA HY-assembly pressure release Quarz 7/KA DZ100/200 HY-assembly control valve Quarz 7/KA -FW HY-assembly trailer Quarz 7/KA DZ100/200 HY-pipe lift linkage Quarz 7/KA HY-pipe assembly Quarz 7/KA HY-pipe assembly Quarz 7/KA -SP Hydraulic pipe Quarz 7/KA HY-pipe seed drill drive Quarz 7/KA HY-assembly control valve L8S Quarz 7/KA HY-pipe assembly track marker Quarz 7 KA HY-assembly track marker Quarz 7/500 K+KA Hydraulic pipe Quarz 7 KA HY-assembly control valve Quarz 7 KA S-LU8S Hydraulic pipe Quarz 7/KA Compressed-air brake Quarz 7/KA Extension cable 22-polig 8m Lighting equipment, front Quarz 7 KA Control box ELFG104-XXXX Cable form ELFG104-XXXX 10m Shield Quarz 7 Lighting equipment, front Quarz 7 KA Lighting equipment, rear KA 150x150 Transport protection Zirkon 9-K Transport protection Zirkon 9-K Transport protection Quarz 7/K+KA Axle for track marker D30x595 668A Holder Quarz 7/500 K+KA Intermediate bracket Zirkon 500/K+600/K Track marker Zirkon 500K +500KA

1

2

3

3

4

5

6

7

8

11

11

Позиция на иллюстрации	Заводской номер детали		Название детали
1	305 8871		Securing ring
2	325 1350		Strap
3	325 1503		EASY-READ sign
4	325 1511		EASY-READ sign
5	325 1512		EASY-READ sign
6	375 2101		Dust protection flap
7	375 2735		SVK-socket
8	375 4500		Adjustable angle union
11	475 2630		High-pressure hose
11	475 2631		High-pressure hose

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
