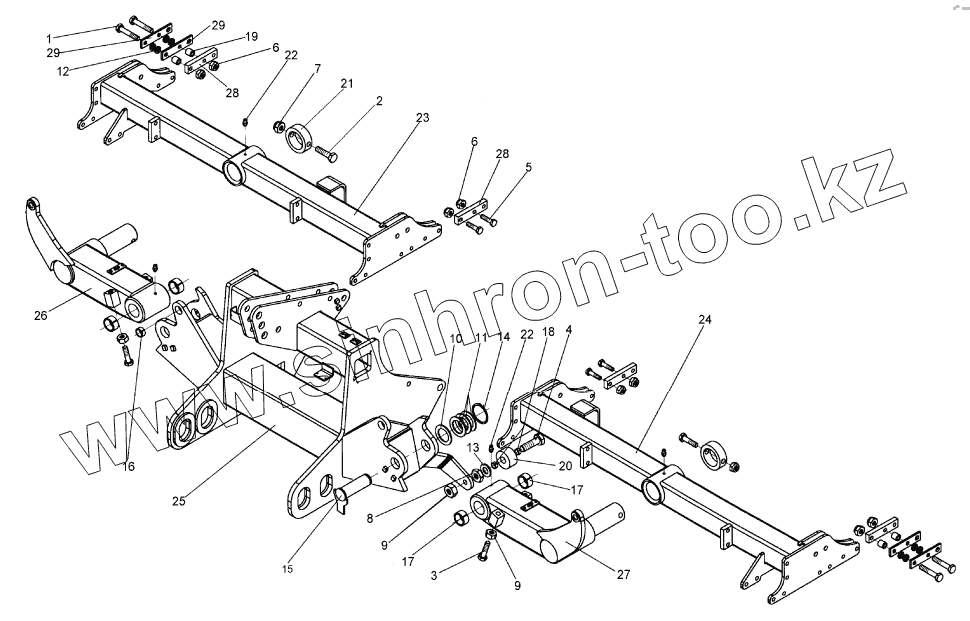

Каталог запасных частей к технике: Lemken Quarz 7/400K. Basic frame Quarz 7/400 K
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
AGCO
Amity
CASE IH
DongFeng
Fortschritt
Foton
Franz Kleine
Gaspardo
Great Plains
KRONE
KUHN
Lemken
Lovol
MacDon
Massey Ferguson
New Holland
TIGARBO
Vaderstad
Versatile
Wirax
Агро
Агротехмаш
Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш»)
БЭМЗ
ВгТЗ
Воронежсельмаш
ВТЗ
Гомсельмаш
ДКЗ
ЗАО "Техника-сервис"
ЗиД
КЗК
Кировец-Ландтехник
Клевер
Красная Звезда
Лидагропроммаш
Лидсельмаш
ЛТЗ
Машстройхолдинг
Минитракторы
Мордовагромаш
МТЗ
Навигатор-Новое машиностроение
Нефтекамский автозавод
ПТЗ
Ремком
РСМ
Сибсельмаш
ТеКЗ
ТКЗ
ХЗТСШ
ХТЗ
ЮМЗ
Модель
Не выбрано
Achat 9/400 KA (2004)
Achat 9/500 KA (2004)
Achat 9/600 KA (2004)
Azurit 9 (2018)
Dolomit 9 (2010)
EuroDiamant 10 (2010)
EuroDiamant 10 X (2010)
EuroDiamant 8 (2010)
EuroGranat 5 (2006)
EuroGranat 6 (2006)
EuroGranat 7 (2006)
EurOpal 5 (2010)
EurOpal 5HX (2010)
EurOpal 6 (2010)
EurOpal 7 (2010)
EurOpal 7, EurOpal 7HX (2018)
EurOpal 7X (2010)
EurOpal 7X, EurOpal 7 HydriX (2018)
EurOpal 8 (2010)
EurOpal 9 (2010)
EuroTitan 10 (2010)
EuroTitan 10X (2010)
FixPack (2010)
Gigant 1000 (2010)
Gigant 1000 Smaragd (2010)
Gigant 800 (2010)
Gigant 800 S (2010)
Gigant 800 S Rubin (2006)
Gigant 800 Smaragd (2010)
Heliodor 9/600KA (2018)
Heliodor 9/700KA (2018)
Juwel 8M (2018)
Karat 9/600 KA (2016)
Kristall 9/500KA (2016)
Kristall 9/600KA (2016)
OptiDisc 25 (2018)
Primus 10 (Часть 1) (2017)
Primus 10 (Часть 2) (2017)
Quarz 7/250 (2010)
Quarz 7/250 F (2010)
Quarz 7/300 (2010)
Quarz 7/300F (2010)
Quarz 7/400 (2010)
Quarz 7/400F (2010)
Quarz 7/400K (2010)
Quarz 7/400KA (2010)
Quarz 7/500K (2010)
Quarz 7/500KA (2010)
Quarz 7/600K (2010)
Rubin 10/600 KUA (2018)
Rubin 10/700 KUA (2018)
Rubin 12/400 KUA (A) (2018)
Rubin 12/500 KUA (A) (2018)
Rubin 12/600 KUA (A) (2018)
Rubin 12/700 KUA (2018)
Rubin 9/300 U (2004)
Rubin 9/400 U (2004)
Saphir 7/300 (2010)
Saphir 7/400 (2010)
Smaragd 7/260 (2010)
Smaragd 7/300 (2010)
Smaragd 9/300 (2010)
Smaragd 9/400 (2010)
Smaragd 9/400 (2016)
Smaragd 9/400 K (2016)
Smaragd 9/400K (2010)
Smaragd 9/450K (2010)
Smaragd 9/500 K (2016)
Smaragd 9/500K (2004)
Smaragd 9/600 K (2016)
Smaragd 9/600K (2010)
Smaragd 9/600KA (2010)
Solitair 10/600K (2006)
Solitair 12/1000K (2007)
Solitair 12/1200K (2008)
Solitair 12/1200KD (2018)
Solitair 12/5800SW (2018)
Solitair 12/800K (2006)
Solitair 12/900K (2007)
Solitair 8/300 (2004)
Solitair 8/300 (2014)
Solitair 8/400 (2004)
Solitair 9/300 (2004)
Solitair 9/400 (2004)
Solitair 9/400K (2004)
Solitair 9/400KA (2004)
Solitair 9/450K (2004)
Solitair 9/450KA (2004)
Solitair 9/500K (2004)
Solitair 9/500KA (2009)
Solitair 9/600K (2004)
Solitair 9/600KA (2004)
System-Kompaktor Gigant 1000 (2010)
System-Kompaktor Gigant 800 (2010)
System-Kompaktor K450 (2010)
System-Kompaktor K450A (2010)
System-Kompaktor K500 (2010)
System-Kompaktor K500A (2010)
System-Kompaktor K600 (2010)
System-Kompaktor K600A (2010)
System-Kompaktor S300 (2010)
System-Kompaktor S400 (2010)
System-Korund 300 L (2010)
System-Korund 450 L (2010)
System-Korund 600 L (2010)
System-Korund 750 K (750 L) (2010)
System-Korund 900 K (2010)
System-Korund 900 L (2010)
Thorit 8/300 (2005)
Thorit 8/300 Combi-Liner (2004)
Thorit 8/400 (2010)
Thorit 8/400 Combi-Liner (2004)
Thorit 9/400 K (2004)
Thorit 9/400 KA (2003)
Thorit 9/450 K (2004)
Thorit 9/500 K (2004)
Thorit 9/500 KA (2003)
Thorit 9/600 K (2004)
Thorit 9/600 KA (2003)
Topas 140-A (2010)
Vari-Diamant 10 (2004)
Vari-Diamant 10X (2004)
Vari-Opal 100 (2014)
Vari-Opal 100HX (2014)
Vari-Opal 100X (2014)
Vari-Opal 160 (2014)
Vari-Opal X160 (2014)
Vari-Titan 10 (2010)
Vari-Turmalin 10 (2005)
Vari-Turmalin 10X (2005)
Variopack 110DP70 (2010)
Variopack 110DP90 (2010)
Variopack 110EP90 (2010)
Variopack 110FEPK700 (2010)
Variopack 80DP70 (2010)
Variopack S 110DP70 (2010)
VariOpal 5 (2010)
VariOpal 7 (2010)
VariOpal 7X (2010)
VariOpal 8 (2010)
VariOpal 8X (2010)
VariOpal 9 (2010)
VariOpal 9X (2010)
Zirkon 10/300 (2010)
Zirkon 10/400 (2010)
Zirkon 10/400K (2010)
Zirkon 10/450 (2010)
Zirkon 10/450K (2010)
Zirkon 10/450KA (2010)
Zirkon 10/500K (2010)
Zirkon 10/500KA (2010)
Zirkon 10/600KA (2010)
Zirkon 7/250 (2010)
Zirkon 7/300 (2010)
Zirkon 7/400 (2010)
Zirkon 9/300 (2010)
Zirkon 9/400 (2010)
Zirkon 9/600K "B" (2010)
Схема
>
Не выбрано
Quarz 7/400 K
Basic frame Quarz 7/400 K
Support 26,9x277 1x90 D16,25
Top link pin with chain KAT2G D25,4/31,7x158
Top link pin with chain KAT3G D31,7/25,4x158
Harrow section 4m-GFS Quarz 7/400
Harrow section 2m RE Quarz 7/400 K+KA
Harrow section 2m LI Quarz 7/400 K+KA
Harrow section 2m RE Quarz 7/400 K+KA
Harrow section 2m LI Quarz 7/400 K+KA
Harrow section 2m RE Quarz 7/400 K+KA
Harrow section 2m LI Quarz 7/400 K+KA
Feeding disc D450/60x20 RE Zirkon
Feeding disc D450/60x20 LI Zirkon
Shield Quarz 7
Trailing bar Quarz 7/400 K+KA
Adjuster Zirkon 9/400-K 9ST
Carrier TPW+ZPW500 Quarz 7
Carrier RSW 540
Tube bar roller RSW D540-2.00
Tube bar roller D400-200 Quarz 7 F
Packer roller ZPW D500-2,0m
Trapezering roller TRW D500-200-B-16R
Trapeze packer roller TPW D500-200-16R125
Packer roller, short scraper ZPW D500-2,0m
Trapeze packer roller TPW D500-200-13R150
Trapeze packer roller TPW D500-200-14R150
Trapeze disc roller TSW D500-200-16R-125
Holder for track scraper FSU 70x70-40x20
Holder 70x70x255
Holder 110x283
Track scraper FSU-VS33 Quarz
Track scraper FSU+G25 40x20 Sy-Korund
Track scraper FSU P50/6 Sy-Korund
Holder Quarz 7/K
Stand 60x20x555
Holder for track scraper FSU 110x110 Quarz 7/K+KA
Track scraper with holder FSU+G25 40x20 Sy-Korund
Track scraper with holder FSU P50/6 Sy-Korund
Track scraper with holder FSU VS33 Quarz
Track scraper with holder FSU+G25 40x20 Quarz
Track scraper with holder FSU P50/6 Quarz
Track scraper with holder FSU P50/6 Quarz
Track scraper with holder FSU+G25 40x20 Quarz
Holder set Quarz 7 Front
Lower link connection D68/P L2 Z3
Lower link connection D68/P L3 Z3
Front headstock FAB-Zirkon 9/9K L2
Front headstock FAB-Quarz 7K L2
Fittings FK Solitair/Zirkon 9
Fittings Zirkon 9-Solitair KA
Hydraulic lift linkage Zirkon 9-K-AHG-ST
Turnbuckle TG-370-M
Hydraulic lift linkage Zirkon 9-K Saschiene
Hydraulic assembly Ouarz 7/400
Hydraulic assembly Quarz 7/400 K
Hydraulic assembly SA 80x320-AHG-ST
Hydraulic assembly SA 90x320-AHG-ST
Hydraulic assembly DA 80x320-AHG-ST
Hydraulic assembly DA 90x320-AHG-ST
Hydraulic assembly DA 2x63x245 HG-ST
Conversion-set lift limiter AHG-HB
HY-assembly track marker Zirkon 400/450, 400K/450K
Carrier for light Zirkon 9-K HR+HL
Lighting equipment, front Zirkon 9/K
Lighting equipment with boards HR+HL 4m
Transport protection Zirkon 9-K
Transport protection Zirkon 9-K
Transport protection Quarz 7/K+KA
Axle for track marker D30x595 668A
Holder Quarz 7/400 K+KA
Track marker Zirkon 400K+450-K D380 B
1
2
3
4
5
6
6
7
8
9
9
10
11
12
13
14
15
16
17
17
18
19
20
21
22
22
23
24
25
26
27
28
28
29
29
Позиция на иллюстрации
Заводской номер детали
Название детали
1
301 3870
Bolt
2
301 4478
Bolt
3
301 4269
Screw
4
301 4407
Bolt
5
301 4038
Bolt
6
303 0935
Selflocking nut
7
303 0936
Selflocking nut
8
303 0959
Nut
9
303 0978
Nut
10
305 2155
Shim
11
305 2255
Supporting washer
12
305 6155
Washer
13
305 6320
Washer
14
305 8877
Securing ring
15
313 5035
Pin with stop
16
317 3417
Expansion bush
17
317 2024
Expansion bush
18
317 6657
Bush
19
317 6801
Tube
20
317 9636
Roller
21
317 8697
Adjusting ring
22
323 6348
Grease nipple
23
410 6344
Frame
24
410 6345
Frame
25
410 6350
Center section
26
410 6750
Lateral part
27
410 6751
Lateral part
28
422 2698
Holder
29
422 2699
Lashing
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
