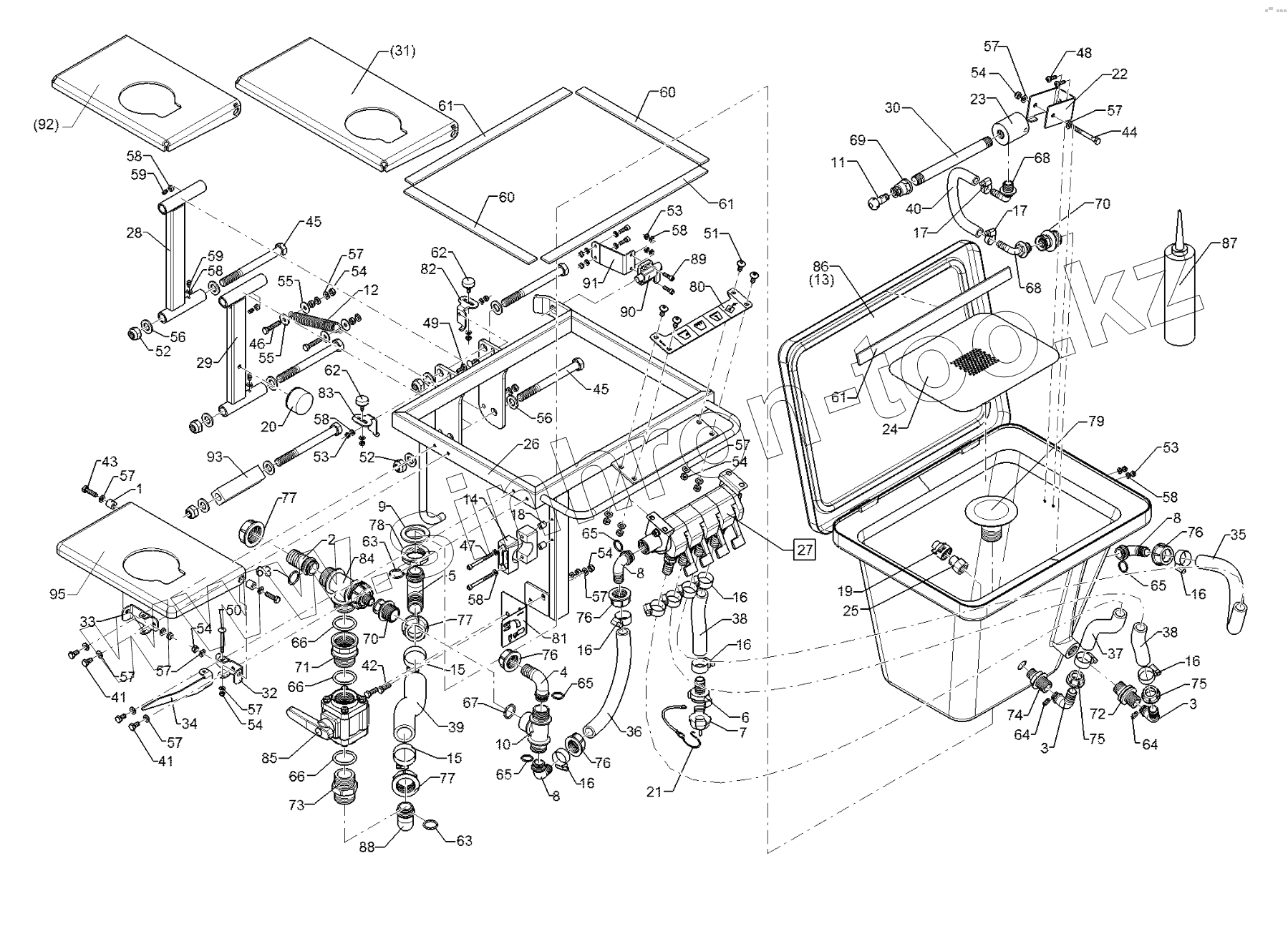

Каталог запасных частей к технике: Lemken Primus 10 (Часть 1). 69110206 Chemical inductor

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
3
4
5
6
7
8
8
8
9
10
11
12
13
14
15
15
16
16
16
16
16
16
17
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
38
39
40
41
41
42
43
44
45
45
46
47
48
49
50
51
52
52
53
53
53
54
54
54
54
54
55
55
56
56
57
57
57
57
57
57
57
57
57
58
58
58
58
58
58
59
59
60
60
61
61
61
62
62
63
63
63
64
64
65
65
65
65
66
66
66
67
68
68
69
70
70
71
72
73
74
75
75
76
76
76
76
77
77
77
78
79
80
81
82
83
84
85
87
88
89
90
91
92
93
95
Позиция на иллюстрации Заводской номер детали Название детали
1 F01 0568 Bushing
2 F61 0832 Hose connection
3 37810947 Hose connection
4 F61 0850 Hose connection
5 37810945 Hose connection
6 F61 0980 Hose nozzle
7 F61 0991 Dummy coupling
8 37810946 Hose connection
9 37810948 Flat seal
10 37810949 T-piece
11 R00 0104 Cleaning nozzle
12 R00 0153 Spring
13 R00 0254 Induction tank
14 R00 0348 Pipe clamp
15 R00 0411 Hose clip
16 R00 0415 Hose clip
17 R00 0417 Hose clip
18 R00 0450 Distance tube
19 R00 0647 Quick-cap
20 R00 0788 Rubber buffer
21 R00 1082 Safety part
22 R00 1406 Holder
23 R00 1407 Adapter
24 R00 1427 Perforated plate
25 R52 0033 Adapter
26 R70 3300 Frame
27 R70 3301 Induction valves
28 R70 3310 Link
29 R70 3320 Link
30 R71 1200 Tube
31 R72 8053 Table
32 R72 8054 Pivot bearing
33 R72 8055 Pivot bearing
34 R72 8056 Support
35 R89 0603 Hose
36 R89 0605 Hose
37 R89 0606 Hose
38 R89 0607 Hose
39 R89 0707 Hose
40 R89 2901 Hose
41 301 7511 Hexagon bolt
42 301 7518 Hexagon bolt
43 301 7523 Hexagon bolt
44 30110099 Hexagon bolt
45 30110120 Hexagon bolt
46 30110173 Hexagon bolt
47 30110206 Allen screw
48 30110233 Oval head screw
49 30110236 Saucer-head screw
50 30110237 Saucer-head screw
51 30110585 Flatheaded bolt
52 30310032 Selflocking nut
53 30310042 Selflocking nut
54 30310043 Selflocking nut
55 305 6125 Washer
56 305 6142 Washer
57 305 8695 Washer
58 305 8702 Washer
59 323 6345 Grease nipple
60 32310181 Rubber edge
61 32310182 Rubber edge
62 32910035 Rubber buffer
63 37810278 O-ring
64 37810279 O-ring
65 37810280 O-ring
66 37810282 O-ring
67 37810283 O-ring
68 37810356 Hose connection
69 37810396 Adapter
70 37810409 Adapter
71 37810420 Adapter
72 37810474 Adapter
73 37810476 Adapter
74 37810492 Adapter
75 37810578 Union nut
76 37810579 Union nut
77 37810580 Union nut
78 37810672 Nut
79 37810721 Stud
80 49110943 Plate
81 49110944 Plate
82 49110946 Holder
83 49110947 Holder
84 57810298 Injector
85 57810299 Ball valve
86 49110995 Induction tank
87 R00 1144 221 bk
88 37810207 Hose connection
89 30110198 Allen screw
90 32110196 Stop bolt
91 49111004 Plate
92 49110997 Holder
93 49111003 End stop
94 F25 0390 Rope
95 49111195 Holder
