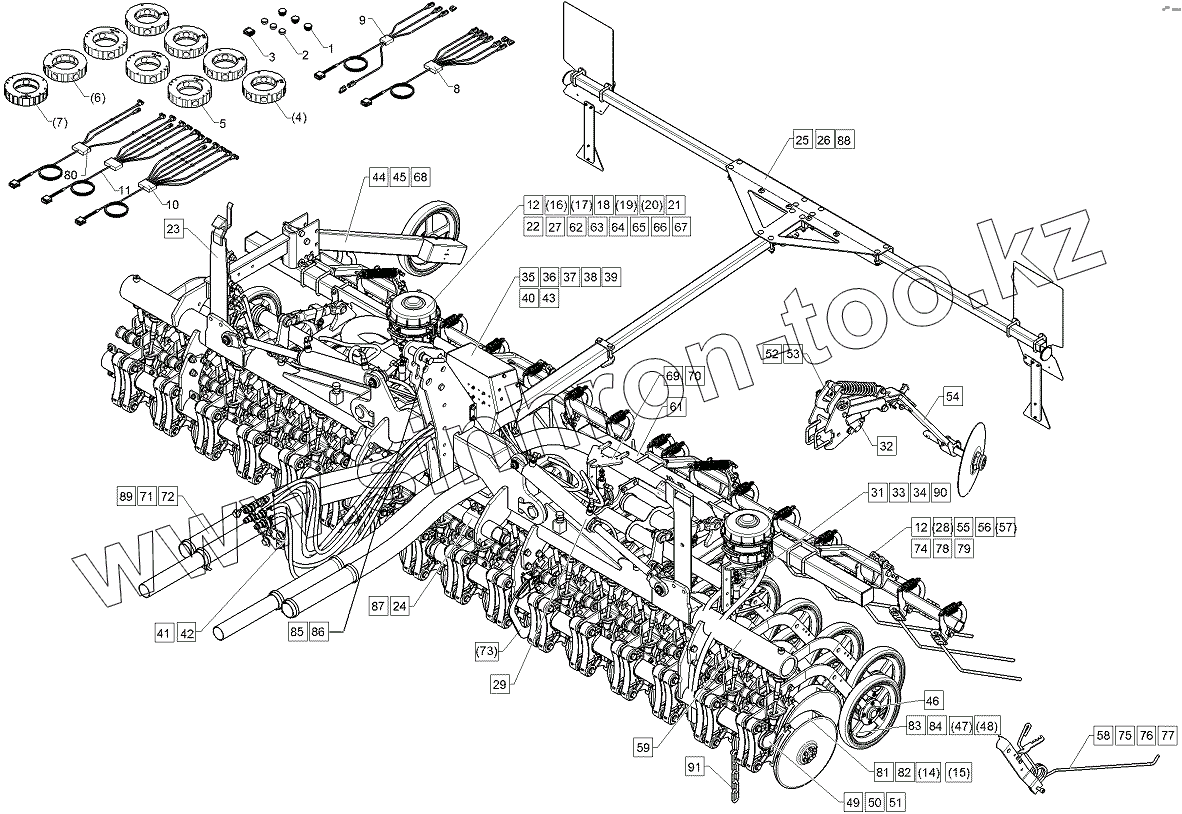

Каталог запасных частей к технике: Lemken OptiDisc 25. 699 6902 Seeding bar

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
2
3
4
5
6
7
8
9
10
11
12
12
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
31
32
33
34
35
36
37
38
39
40
41
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
Позиция на иллюстрации Заводской номер детали Название детали
1 32310165 Lamellar cap
2 32310166 Plug
3 37310195 Connector plug
4 48210440 Distributor cartridge
5 48210444 Tramline cartridge
6 48210610 Distributor cartridge
7 48210613 Tramline cartridge
8 57310414 Cable form
9 57310415 Cable form
10 57310420 Cable form
11 57310421 Cable form
12 57310471 Cable form
14 58210074 Seed pipe with scraper
15 58210075 Seed pipe with HM-scraper
16 58210100 Tramline cartridge
17 58210101 Tramline cartridge
18 58210102 Tramline cartridge
19 58210104 Tramline cartridge
20 58210122 Tramline cartridge
21 58210129 Flexible hose
22 58210132 Flexible hose
23 617 8147 Hydraulic locking device
24 66110029 Lower link connection
25 670 5094 Transport protection
26 67010203 Lighting equipment
27 67310179 Sensory mechanism
28 67510744 HY-assembly harrow
29 67510789 HY-assembly folding device
31 67510793 HY-assembly tramline
32 67510795 Hydraulic assembly
33 67510796 HY-assembly tramline
34 67510800 HY-assembly pre-emergence
35 67510826 Holder
36 67510829 Control valve
37 67510830 Control valve
38 67510831 Control valve
39 67510832 Control valve
40 67510849 Hydraulic assembly
41 67510835 HY supply pipe control valve
43 67510882 Control valve
44 682 2519 Pulse wheel
45 682 2520 Drive wheel
46 682 6376 Scraper
47 68210172 Double disc coulter + spring
48 68210173 Double disc coulter
49 68210220 Coulter frame
50 68210221 Coulter frame
51 68210222 Coulter frame
52 68210229 Pre-emergency marker
53 68210230 Pre-emergency marker
54 68210231 Pre-emergency marker
55 68210238 Compact-harrow
56 68210239 Compact-harrow
57 68210240 Harrow adjustment mec.
58 68210241 Single harrow
59 68210251 Folding frame
61 68210256 Carrier tube
62 68210258 Distributor
63 68210263 Distributor ring
64 68210264 Distributor
65 68210265 Tramline mechanism
66 68210267 Distributor
67 68210268 Distributor ring
68 68210271 Bracket
69 68210272 Holder
70 68210273 Holder
71 68210274 Supply pipe set
72 68210275 Supply pipe set
73 68210319 Sensor seeding bar
74 67511014 HY-assembly harrow
75 68210270 Single harrow with scraper
76 68210320 Single harrow
77 68210321 Single harrow with scraper
78 68210403 Harrow adjustment HY
79 68210433 Harrow adjustment mec.
80 57310482 Cable form
81 58210134 Seed pipe
82 58210135 Seed pipe with HM-scraper
83 68210302 Double disc coulter
84 68210303 Double disc coulter
85 313 7940 Top link pin
86 313 7945 Top link pin with chain
87 661 1407 Lower link connection
88 67010232 Lighting equipment
89 68210456 Supply pipe
90 67511294 Tramline mechanism
91 68210481 Depth indicator
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
