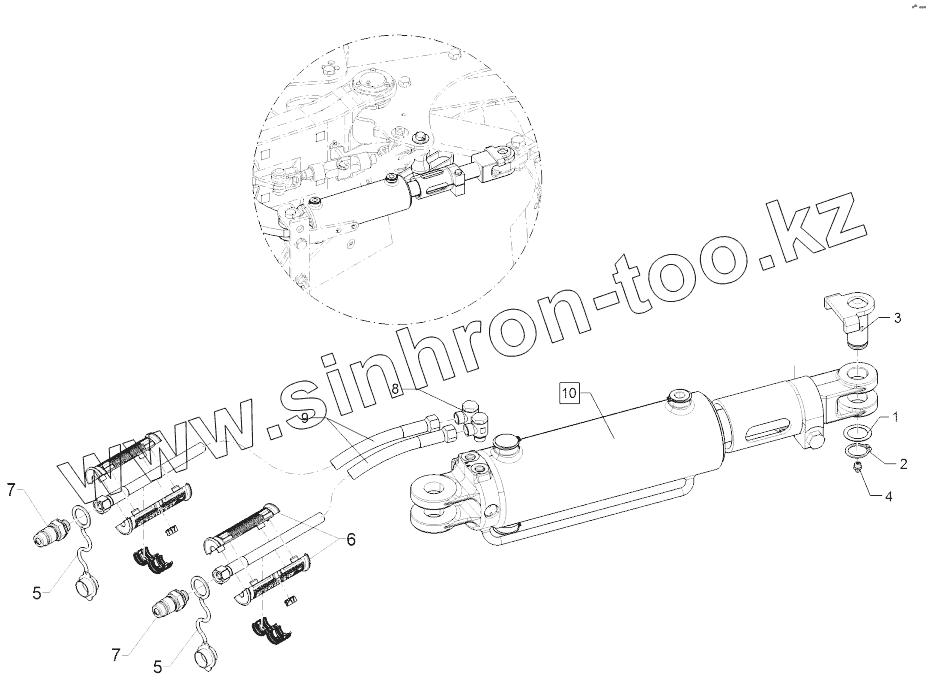

Каталог запасных частей к технике: Lemken Juwel 8M. 67511015 HY-assembl.front furr.adjustm.

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано Achat 9/400 KA (2004) Achat 9/500 KA (2004) Achat 9/600 KA (2004) Azurit 9 (2018) Dolomit 9 (2010) EuroDiamant 10 (2010) EuroDiamant 10 X (2010) EuroDiamant 8 (2010) EuroGranat 5 (2006) EuroGranat 6 (2006) EuroGranat 7 (2006) EurOpal 5 (2010) EurOpal 5HX (2010) EurOpal 6 (2010) EurOpal 7 (2010) EurOpal 7, EurOpal 7HX (2018) EurOpal 7X (2010) EurOpal 7X, EurOpal 7 HydriX (2018) EurOpal 8 (2010) EurOpal 9 (2010) EuroTitan 10 (2010) EuroTitan 10X (2010) FixPack (2010) Gigant 1000 (2010) Gigant 1000 Smaragd (2010) Gigant 800 (2010) Gigant 800 S (2010) Gigant 800 S Rubin (2006) Gigant 800 Smaragd (2010) Heliodor 9/600KA (2018) Heliodor 9/700KA (2018) Juwel 8M (2018) Karat 9/600 KA (2016) Kristall 9/500KA (2016) Kristall 9/600KA (2016) OptiDisc 25 (2018) Primus 10 (Часть 1) (2017) Primus 10 (Часть 2) (2017) Quarz 7/250 (2010) Quarz 7/250 F (2010) Quarz 7/300 (2010) Quarz 7/300F (2010) Quarz 7/400 (2010) Quarz 7/400F (2010) Quarz 7/400K (2010) Quarz 7/400KA (2010) Quarz 7/500K (2010) Quarz 7/500KA (2010) Quarz 7/600K (2010) Rubin 10/600 KUA (2018) Rubin 10/700 KUA (2018) Rubin 12/400 KUA (A) (2018) Rubin 12/500 KUA (A) (2018) Rubin 12/600 KUA (A) (2018) Rubin 12/700 KUA (2018) Rubin 9/300 U (2004) Rubin 9/400 U (2004) Saphir 7/300 (2010) Saphir 7/400 (2010) Smaragd 7/260 (2010) Smaragd 7/300 (2010) Smaragd 9/300 (2010) Smaragd 9/400 (2010) Smaragd 9/400 (2016) Smaragd 9/400 K (2016) Smaragd 9/400K (2010) Smaragd 9/450K (2010) Smaragd 9/500 K (2016) Smaragd 9/500K (2004) Smaragd 9/600 K (2016) Smaragd 9/600K (2010) Smaragd 9/600KA (2010) Solitair 10/600K (2006) Solitair 12/1000K (2007) Solitair 12/1200K (2008) Solitair 12/1200KD (2018) Solitair 12/5800SW (2018) Solitair 12/800K (2006) Solitair 12/900K (2007) Solitair 8/300 (2004) Solitair 8/300 (2014) Solitair 8/400 (2004) Solitair 9/300 (2004) Solitair 9/400 (2004) Solitair 9/400K (2004) Solitair 9/400KA (2004) Solitair 9/450K (2004) Solitair 9/450KA (2004) Solitair 9/500K (2004) Solitair 9/500KA (2009) Solitair 9/600K (2004) Solitair 9/600KA (2004) System-Kompaktor Gigant 1000 (2010) System-Kompaktor Gigant 800 (2010) System-Kompaktor K450 (2010) System-Kompaktor K450A (2010) System-Kompaktor K500 (2010) System-Kompaktor K500A (2010) System-Kompaktor K600 (2010) System-Kompaktor K600A (2010) System-Kompaktor S300 (2010) System-Kompaktor S400 (2010) System-Korund 300 L (2010) System-Korund 450 L (2010) System-Korund 600 L (2010) System-Korund 750 K (750 L) (2010) System-Korund 900 K (2010) System-Korund 900 L (2010) Thorit 8/300 (2005) Thorit 8/300 Combi-Liner (2004) Thorit 8/400 (2010) Thorit 8/400 Combi-Liner (2004) Thorit 9/400 K (2004) Thorit 9/400 KA (2003) Thorit 9/450 K (2004) Thorit 9/500 K (2004) Thorit 9/500 KA (2003) Thorit 9/600 K (2004) Thorit 9/600 KA (2003) Topas 140-A (2010) Vari-Diamant 10 (2004) Vari-Diamant 10X (2004) Vari-Opal 100 (2014) Vari-Opal 100HX (2014) Vari-Opal 100X (2014) Vari-Opal 160 (2014) Vari-Opal X160 (2014) Vari-Titan 10 (2010) Vari-Turmalin 10 (2005) Vari-Turmalin 10X (2005) Variopack 110DP70 (2010) Variopack 110DP90 (2010) Variopack 110EP90 (2010) Variopack 110FEPK700 (2010) Variopack 80DP70 (2010) Variopack S 110DP70 (2010) VariOpal 5 (2010) VariOpal 7 (2010) VariOpal 7X (2010) VariOpal 8 (2010) VariOpal 8X (2010) VariOpal 9 (2010) VariOpal 9X (2010) Zirkon 10/300 (2010) Zirkon 10/400 (2010) Zirkon 10/400K (2010) Zirkon 10/450 (2010) Zirkon 10/450K (2010) Zirkon 10/450KA (2010) Zirkon 10/500K (2010) Zirkon 10/500KA (2010) Zirkon 10/600KA (2010) Zirkon 7/250 (2010) Zirkon 7/300 (2010) Zirkon 7/400 (2010) Zirkon 9/300 (2010) Zirkon 9/400 (2010) Zirkon 9/600K "B" (2010)

Схема > Не выбрано Juwel 8M 3137941 Top link pin, cpl. 31310099 Top link pin, cpl. 63310016 Locking device 63310017 Turnover mechanism 63310018 Turnover mechanism 63310019 Turnover mechanism 63310020 Turnover mechanism 63310021 Turnover mechanism 63310022 Turnover mechanism 6611443 Lower link connection 6611444 Lower link connection 6611445 Lower link connection 3219135 Tool set 3219136 Tool set 62910007 Stand 62910019 Stand 63410016 Adjustment centre 63410017 Adjustment centre 63410020 Adjustment centre 5906021 Label 6027093 Frame extension 6027094 Frame extension 60210085 Basic frame 60210086 Basic frame 60210087 Basic frame 60210088 Basic frame 60210089 Basic frame 60210090 Basic frame 60210091 Basic frame 60210092 Basic frame 60210093 Basic frame 60210103 Basic frame 60210104 Basic frame 60210105 Basic frame 60210106 Basic frame 60210107 Basic frame 60210108 Basic frame 60210109 Basic frame 60210110 Basic frame 60210111 Basic frame 4645006 Leg 4645007 Leg 46410002 Leg 6022744 Bracket 6022745 Bracket 60210047 Bracket 60210048 Bracket 5482621 Wheelstalk 5482653 Wheel bracket 54810008 Wheel stalk with bearing 5491255 Bracket 5491272 Bracket 5491731 Wheel stalk 5491740 Wheel stalk 5498893 Bearing 5498894 Bearing 5498904 Flange-type bearing 54910006 Ram 54910008 Wheel stalk 54910019 Spring 54910024 Guard 54910025 Scraper 5508862 Wheel 5508863 Wheel 5508864 Wheel 55010332 Wheel 6484214 Depth wheel 64810008 Depth wheel dampened 6491660 Uni-wheel 6491705 Uni-wheel 64910005 Uni-wheel 5701764 Lighting unit 5701765 Lighting unit 5702086 Lighting unit 57010104 Lighting unit 57010105 Lighting unit 6701674 Lighting unit 6701677 Lighting equipment 6701708 Lateral warning board 67010192 Lighting equipment 6578002 Skim stalk 6578022 Skim stalk 6579360 Swinging arm 6579361 Swinging arm 6579362 Swinging arm 6579363 Swinging arm 6579370 Swinging arm 6579371 Swinging arm 6579372 Swinging arm 6579373 Swinging arm 6579390 Swinging arm 6579391 Swinging arm 6579392 Swinging arm 6579393 Swinging arm 6579394 Swinging arm 6579395 Swinging arm 6579396 Swinging arm 6579397 Swinging arm 6222659 Attachment arm 5752270 Hydraulic ram 5752421 Swing-in ram 5752577 Ram 57510525 Hydraulic ram 57510679 Ram 57510812 Hydraulic ram 57510813 Hydraulic ram 57510816 Hydraulic ram 57510839 Hydraulic assembly 57510850 HY-assembly depth+transp.wheel 57510851 HY-assembly depth+transp.wheel 57510879 Hydraulic assembly 57510881 Hydraulic assembly 57510883 Hydraulic assembly 57510886 Hydraulic assembly 57510888 Hydraulic assembly 57510890 Hydraulic assembly 57510892 Hydraulic assembly 57510894 Hydraulic assembly 57510900 Hydraulic assembly 57510905 Holder 57510960 Hydraulic assembly 67510498 Front furrow+frame swing-in 67510501 Front furrow+frame swing-in 67510502 Hydraulic assembly 67510514 Plough turning 67510516 Plough turning 67510520 Hydraulic assembly 67510521 Hydraulic assembly 67510522 Hydraulic assembly 67510523 Hydraulic assembly 67510524 Hydraulic assembly 67510525 Hydraulic assembly 67510526 Hydraulic assembly 67510527 Hydraulic assembly 67510528 Hydraulic assembly 67510542 Hydraulic assembly 67510555 Hydraulic assembly 67510570 HY-assembly depth+transp.wheel 67510571 HY-assembly depth+transp.wheel 67510572 HY-assembly depth+transp.wheel 67510573 HY-assembly depth+transp.wheel 67510574 HY-assembly depth+transp.wheel 67510575 HY-assembly depth+transp.wheel 67510576 HY-assembly depth+transp.wheel 67510577 HY-assembly depth+transp.wheel 67510593 Hydraulic assembly 67510598 HY-ass.fr.furr.+frame swing-in 67510627 Holder 67510990 HY-assembly attachment arm 67511015 HY-assembl.front furr.adjustm. 56710002 Buck plate 56710003 Buck plate 6574608 Subsoiler 6574609 Subsoiler 6574612 Subsoiler 6574613 Subsoiler 66710076 Landside with bolt 66710077 Landside with bolt 6995150 Body 6995151 Body 6995152 Body 6995153 Body 6995154 Body 6995155 Body 6995156 Body 6995157 Body 6638750 Skim stalk 6638752 Skim stalk 6638754 Skim stalk 6638755 Skim stalk 6638759 Skim stalk 6638762 Skim stalk 6638764 Skim stalk 6638770 Skim stalk 66310003 Skim stalk 66310004 Skim stalk 66310005 Skim stalk 66310006 Skim stalk 66310007 Skim stalk 66310008 Skim stalk 66310009 Skim stalk 66310012 Skim stalk 66310014 Skim stalk 66310015 Skim stalk 66310016 Skim stalk 66310018 Skim stalk 66310021 Skim stalk 6995520 Skimmer 6995522 Skimmer 69910389 Skimmer

1

2

3

4

5

5

6

7

7

8

9

10

Позиция на иллюстрации	Заводской номер детали		Название детали
1	305 2051		Shim
2	305 8867		Securing ring
3	313 3028		Pin with stop
4	323 6348		Grease nipple
5	375 2123		Cap
6	375 2607		Handle
7	375 2718		SVK-socket
8	375 4310		Union, swivel
9	47510830		Hose-assembly
10	57510816		Hydraulic ram

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
