Каталог запасных частей к технике: Lemken EurOpal 7X, EurOpal 7 HydriX. 321 9110 Tool set

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано Achat 9/400 KA (2004) Achat 9/500 KA (2004) Achat 9/600 KA (2004) Azurit 9 (2018) Dolomit 9 (2010) EuroDiamant 10 (2010) EuroDiamant 10 X (2010) EuroDiamant 8 (2010) EuroGranat 5 (2006) EuroGranat 6 (2006) EuroGranat 7 (2006) EurOpal 5 (2010) EurOpal 5HX (2010) EurOpal 6 (2010) EurOpal 7 (2010) EurOpal 7, EurOpal 7HX (2018) EurOpal 7X (2010) EurOpal 7X, EurOpal 7 HydriX (2018) EurOpal 8 (2010) EurOpal 9 (2010) EuroTitan 10 (2010) EuroTitan 10X (2010) FixPack (2010) Gigant 1000 (2010) Gigant 1000 Smaragd (2010) Gigant 800 (2010) Gigant 800 S (2010) Gigant 800 S Rubin (2006) Gigant 800 Smaragd (2010) Heliodor 9/600KA (2018) Heliodor 9/700KA (2018) Juwel 8M (2018) Karat 9/600 KA (2016) Kristall 9/500KA (2016) Kristall 9/600KA (2016) OptiDisc 25 (2018) Primus 10 (Часть 1) (2017) Primus 10 (Часть 2) (2017) Quarz 7/250 (2010) Quarz 7/250 F (2010) Quarz 7/300 (2010) Quarz 7/300F (2010) Quarz 7/400 (2010) Quarz 7/400F (2010) Quarz 7/400K (2010) Quarz 7/400KA (2010) Quarz 7/500K (2010) Quarz 7/500KA (2010) Quarz 7/600K (2010) Rubin 10/600 KUA (2018) Rubin 10/700 KUA (2018) Rubin 12/400 KUA (A) (2018) Rubin 12/500 KUA (A) (2018) Rubin 12/600 KUA (A) (2018) Rubin 12/700 KUA (2018) Rubin 9/300 U (2004) Rubin 9/400 U (2004) Saphir 7/300 (2010) Saphir 7/400 (2010) Smaragd 7/260 (2010) Smaragd 7/300 (2010) Smaragd 9/300 (2010) Smaragd 9/400 (2010) Smaragd 9/400 (2016) Smaragd 9/400 K (2016) Smaragd 9/400K (2010) Smaragd 9/450K (2010) Smaragd 9/500 K (2016) Smaragd 9/500K (2004) Smaragd 9/600 K (2016) Smaragd 9/600K (2010) Smaragd 9/600KA (2010) Solitair 10/600K (2006) Solitair 12/1000K (2007) Solitair 12/1200K (2008) Solitair 12/1200KD (2018) Solitair 12/5800SW (2018) Solitair 12/800K (2006) Solitair 12/900K (2007) Solitair 8/300 (2004) Solitair 8/300 (2014) Solitair 8/400 (2004) Solitair 9/300 (2004) Solitair 9/400 (2004) Solitair 9/400K (2004) Solitair 9/400KA (2004) Solitair 9/450K (2004) Solitair 9/450KA (2004) Solitair 9/500K (2004) Solitair 9/500KA (2009) Solitair 9/600K (2004) Solitair 9/600KA (2004) System-Kompaktor Gigant 1000 (2010) System-Kompaktor Gigant 800 (2010) System-Kompaktor K450 (2010) System-Kompaktor K450A (2010) System-Kompaktor K500 (2010) System-Kompaktor K500A (2010) System-Kompaktor K600 (2010) System-Kompaktor K600A (2010) System-Kompaktor S300 (2010) System-Kompaktor S400 (2010) System-Korund 300 L (2010) System-Korund 450 L (2010) System-Korund 600 L (2010) System-Korund 750 K (750 L) (2010) System-Korund 900 K (2010) System-Korund 900 L (2010) Thorit 8/300 (2005) Thorit 8/300 Combi-Liner (2004) Thorit 8/400 (2010) Thorit 8/400 Combi-Liner (2004) Thorit 9/400 K (2004) Thorit 9/400 KA (2003) Thorit 9/450 K (2004) Thorit 9/500 K (2004) Thorit 9/500 KA (2003) Thorit 9/600 K (2004) Thorit 9/600 KA (2003) Topas 140-A (2010) Vari-Diamant 10 (2004) Vari-Diamant 10X (2004) Vari-Opal 100 (2014) Vari-Opal 100HX (2014) Vari-Opal 100X (2014) Vari-Opal 160 (2014) Vari-Opal X160 (2014) Vari-Titan 10 (2010) Vari-Turmalin 10 (2005) Vari-Turmalin 10X (2005) Variopack 110DP70 (2010) Variopack 110DP90 (2010) Variopack 110EP90 (2010) Variopack 110FEPK700 (2010) Variopack 80DP70 (2010) Variopack S 110DP70 (2010) VariOpal 5 (2010) VariOpal 7 (2010) VariOpal 7X (2010) VariOpal 8 (2010) VariOpal 8X (2010) VariOpal 9 (2010) VariOpal 9X (2010) Zirkon 10/300 (2010) Zirkon 10/400 (2010) Zirkon 10/400K (2010) Zirkon 10/450 (2010) Zirkon 10/450K (2010) Zirkon 10/450KA (2010) Zirkon 10/500K (2010) Zirkon 10/500KA (2010) Zirkon 10/600KA (2010) Zirkon 7/250 (2010) Zirkon 7/300 (2010) Zirkon 7/400 (2010) Zirkon 9/300 (2010) Zirkon 9/400 (2010) Zirkon 9/600K "B" (2010)

Схема > Не выбрано 313 7911 Contents 321 9110 Tool set 633 7505 Turnover mechanism 633 7552 Turnover mechanism 63310002 Turnover mechanism 633 7431 Locking device 602 8258 Basic frame 602 8260 Basic frame 602 8261 Basic frame 602 8263 Basic frame 602 8264 Basic frame 60210072 Basic frame 60210073 Basic frame 602 8262 Frame extension 602 8265 Frame extension 67510153 Holder 626 8201 Trip device - beam 626 8202 Trip device - beam 626 8209 Overload safety device 313 7911 Top link pin, cpl. 313 7921 Top link pin, cpl. 634 3149 Adjustment centre 634 3150 Adjustment centre 629 2470 Stand 629 2477 Stand 629 2478 Stand 629 2485 Stand 629 2486 Stand 661 1250 Lower link connection 661 1251 Lower link connection 661 1252 Lower link connection 661 1385 Lower link connection 661 1386 Lower link connection 661 1387 Lower link connection 661 1388 Lower link connection 661 1390 Lower link connection 661 1391 Lower link connection 661 1392 Lower link connection 661 1393 Lower link connection 661 1394 Lower link connection 661 1401 Lower link connection 661 1402 Lower link connection 661 1405 Lower link connection 661 1406 Lower link connection 548 2620 Wheel stalk 548 2621 Wheel stalk 548 2652 Wheel bracket 549 1220 Scraper 549 1254 Bracket Uni-wheel 549 1731 Wheel stalk 549 1733 Wheel stalk 549 8849 Wheel 549 8858 Wheel 5/94/140 D14 549 8893 Bearing 549 8894 Bearing 549 8900 Flange-type bearing 549 8901 Flange-type bearing 549 8902 Stalk Uni-wheel 549 8903 Bearing 550 8862 Wheel 550 8863 Wheel 550 8864 Wheel 55010332 Wheel 648 4182 Depth wheel 648 4213 Depth wheel 649 1656 Uni-wheel 649 1657 Uni-wheel 649 1658 Uni-wheel 649 1682 Uni-wheel 373 4150 Extension cable 570 2086 Lighting equipment 670 1151 Lamp holder 670 1200 Lamp holder 670 1674 Lighting equipment 670 1676 Lighting equipment 670 1708 Lateral warning board 670 2012 Warning boards with lighting 575 2198 Pressure accumulator 575 2314 Hydraulic ram 575 2415 Swing-in ram 575 2417 Swing-in ram 575 2419 Swing-in ram 575 2439 Memory ram 575 2455 Memory ram 575 2490 Change over ram 575 2492 Turn over ram witk VUP 575 2495 Turn over ram witk VUP 575 2506 Change over ram 575 2508 Change over ram 575 2523 Hydraulic ram 575 9041 Block 675 1094 Hydraulic assembly 675 1095 Hydraulic assembly 675 1097 Hydraulic assembly 675 1103 Hydraulic assembly 675 1104 Hydraulic assembly 675 1105 Hydraulic assembly 675 1108 Hydraulic assembly 675 1109 Hydraulic assembly 675 1110 Hydraulic assembly 675 1112 Hydraulic assembly 675 1113 Hydraulic assembly 675 1116 Holder 675 1123 Hydraulic assembly 675 1126 Hydraulic assembly 675 1150 Hydraulic assembly 675 1151 Hydraulic assembly 675 1152 Hydraulic assembly 675 1322 HY-assembly attachment arm 675 1323 HY-assembly attachment arm 675 1340 HY-assembly attachment arm 675 1346 HY-assembly attachment arm 675 3565 HY-front furrow adjuster NRS 675 3587 HY-width adjuster Memory 675 3595 HY-width adjuster Memory 675 3635 HY-turnover device 675 3637 HY-turnover+swing-in device 675 3639 HY-turnover device 675 3641 HY-turnover device 675 3644 HY-turnover device 675 3645 HY-turnover device 663 7840 Disc stalk 663 8474 Skim stalk 663 8720 Skim stalk 663 8732 Skim stalk 626 8168 Trip device with roller 626 8172 Trip device with roller 626 8175 Overload safety device 626 8207 Overload safety device 464 4060 Leg 464 4065 Leg 464 5010 Leg 464 5011 Leg 464 5020 Leg 464 5025 Leg 657 7818 Trip disc-coulter 657 7819 Trip disc-coulter 657 7820 Trip disc-coulter 657 7821 Trip disc-coulter 657 9332 Disc arm 657 9333 Disc arm 622 2615 Attachment arm 622 2660 Attachment arm 622 2661 Attachment arm 622 2664 Bracket 475 4394 Hose carrier

1

2

3

4

5

6

7

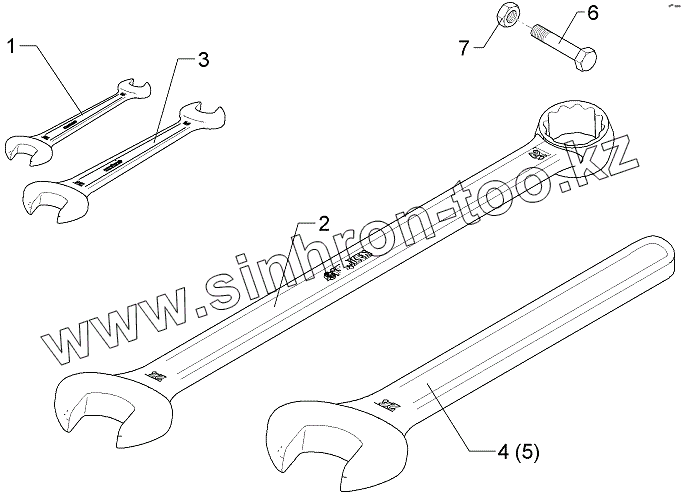

Позиция на иллюстрации	Заводской номер детали		Название детали
1	321 9815		Spanner
2	321 9820		Spanner
3	321 9838		Spanner
4	321 9855		Spanner
5	321 9850		Spanner
6	301 3424		Bolt
7	303 1013		Nut

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
