Каталог запасных частей к технике: Lemken EurOpal 7X, EurOpal 7 HydriX. 313 7911 Contents

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
2
2
2
3
4
4
5
5
5
5
5
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
6
7
7
7
7
7
7
7
8
8
9
9
9
9
10
10
10
10
11
11
11
11
11
11
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
12
13
13
13
13
13
13
13
13
14
14
14
14
14
14
16
16
16
16
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
17
18
18
18

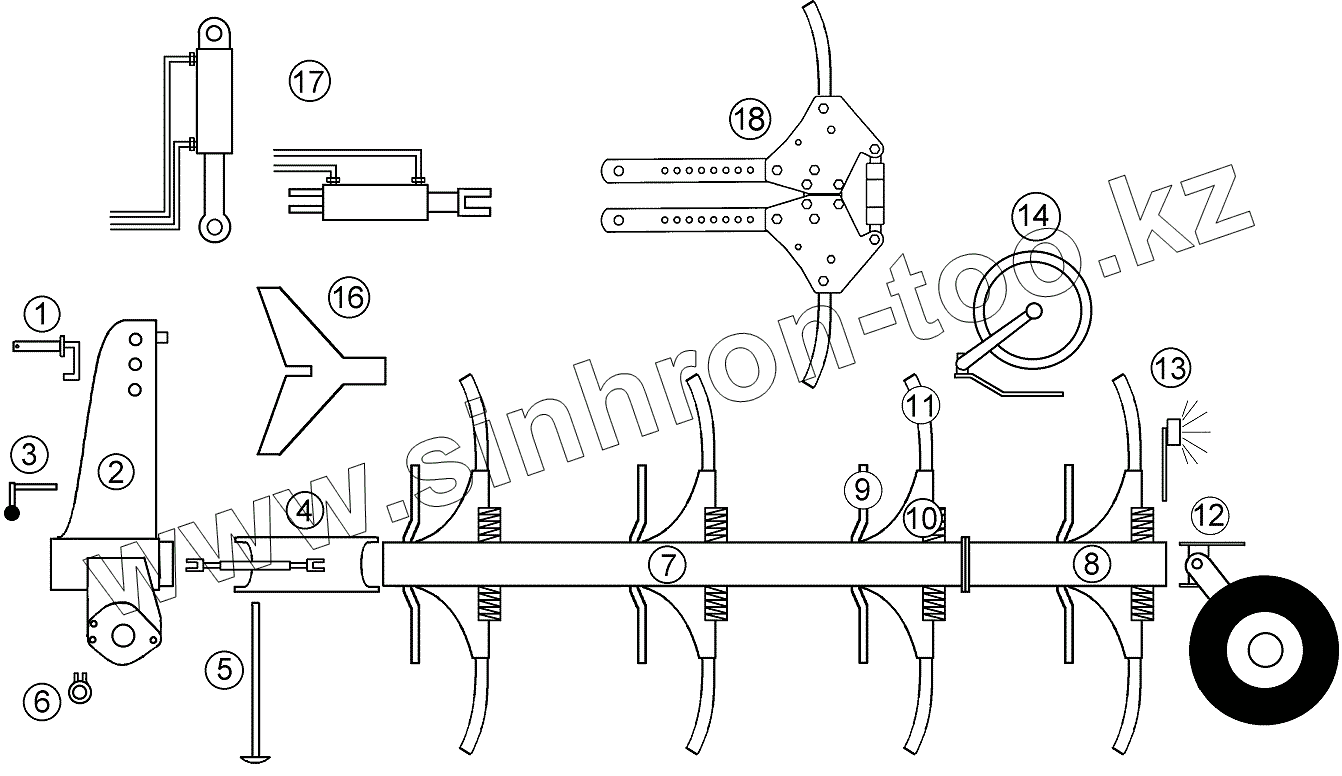

Позиция на иллюстрации Заводской номер детали Название детали
1 313 7911 Top link pin with chain
1 313 7921 Top link pin with chain
2 321 9110 Tool set
2 633 7505 Turnover mechanism
2 633 7552 Turnover mechanism
2 63310002 Turnover mechanism
3 633 7431 Locking device
4 634 3149 Adjustment centre
4 634 3150 Adjustment centre
5 629 2470 Stand
5 629 2477 Stand
5 629 2478 Stand
5 629 2485 Stand
5 629 2486 Stand
6 661 1250 Lower link connection
6 661 1251 Lower link connection
6 661 1252 Lower link connection
6 661 1385 Lower link connection
6 661 1386 Lower link connection
6 661 1387 Lower link connection
6 661 1388 Lower link connection
6 661 1390 Lower link connection
6 661 1391 Lower link connection
6 661 1392 Lower link connection
6 661 1393 Lower link connection
6 661 1394 Lower link connection
6 661 1401 Lower link connection
6 661 1402 Lower link connection
6 661 1405 Lower link connection
6 661 1406 Lower link connection
7 602 8258 Basic frame
7 602 8260 Basic frame
7 602 8261 Basic frame
7 602 8263 Basic frame
7 602 8264 Basic frame
7 60210072 Basic frame
7 60210073 Basic frame
8 602 8262 Frame extension
8 602 8265 Frame extension
9 663 7840 Disc stalk
9 663 8474 Skim stalk
9 663 8720 Skim stalk
9 663 8732 Skim stalk
10 626 8168 Trip device with roller
10 626 8172 Trip device with roller
10 626 8175 Trip device with roller
10 626 8207 Overload safety device
11 464 4060 Leg
11 464 4065 Leg
11 464 5010 Leg
11 464 5011 Leg
11 464 5020 Leg
11 464 5025 Leg
12 548 2620 Wheel stalk
12 548 2621 Wheel stalk
12 548 2652 Wheel bracket
12 549 1220 Scraper
12 549 1254 Bracket Uni-wheel
12 549 1731 Wheel stalk
12 549 1733 Wheel stalk
12 549 8849 Wheel 5/94/140 D14
12 549 8858 Wheel 5/94/140 D14
12 549 8893 Bearing
12 549 8894 Bearing
12 549 8900 Flange-type bearing
12 549 8901 Flange-type bearing
12 549 8902 Stalk Uni-wheel
12 549 8903 Bearing
12 550 8862 Wheel 5/94/140 M14
12 550 8863 Wheel 6/161/205 D18
12 550 8864 Wheel 6/161/205 D18
12 55010332 Wheel
12 648 4182 Depth wheel
12 648 4213 Depth wheel
12 649 1656 Uni-wheel
12 649 1657 Uni-wheel
12 649 1658 Uni-wheel
12 649 1682 Uni-wheel
13 373 4150 Extension cable
13 570 2086 Lighting equipment
13 670 1151 Carrier for light
13 670 1200 Carrier for light
13 670 1674 Lighting equipment
13 670 1676 Lighting equipment
13 670 1708 Lateral warning board
13 670 2012 Lighting equipment with boards
14 657 7818 Trip disc-coulter
14 657 7819 Trip disc-coulter
14 657 7820 Trip disc-coulter
14 657 7821 Trip disc-coulter
14 657 9332 Disc arm
14 657 9333 Disc arm
16 622 2615 Attachment arm
16 622 2660 Attachment arm
16 622 2661 Attachment arm
16 622 2664 Bracket
17 475 4394 Hose carrier
17 575 2198 Pressure accumulator
17 575 2314 Plunger-ram
17 575 2415 Swing-in ram
17 575 2417 Swing-in ram
17 575 2419 Swing-in ram
17 575 2439 Memory ram
17 575 2455 Memory ram
17 575 2490 Change over ram
17 575 2492 Turn over ram with VUP
17 575 2495 Turn over ram with VUP
17 575 2506 Change over ram
17 575 2508 Change over ram
17 575 2523 Hydraulic ram
17 575 9041 Block for HydriX
17 675 1094 Hydraulic assembly
17 675 1095 Hydraulic assembly
17 675 1097 Hydraulic assembly
17 675 1103 Hydraulic assembly
17 675 1104 Hydraulic assembly
17 675 1105 Hydraulic assembly
17 675 1108 Hydraulic assembly
17 675 1109 Hydraulic assembly
17 675 1110 Hydraulic assembly
17 675 1112 Hydraulic assembly
17 675 1113 Hydraulic assembly
17 675 1116 Holder
17 675 1123 Hydraulic assembly
17 675 1126 Hydraulic assembly
17 675 1150 Hydraulic assembly
17 675 1151 Hydraulic assembly
17 675 1152 Hydraulic assembly
17 675 1322 HY-assembly attachment arm
17 675 1323 HY-assembly attachment arm
17 675 1340 HY-assembly attachment arm
17 675 1346 HY-assembly attachment arm
17 675 3565 HY-front furrow adjuster NRS
17 675 3587 HY-width adjuster Memory
17 675 3595 HY-width adjuster Memory
17 675 3635 HY-turnover device
17 675 3637 HY-turnover+swing-in device
17 675 3639 HY-turnover device
17 675 3641 HY-turnover device
17 675 3644 HY-turnover device
17 675 3645 HY-turnover device
17 67510153 Holder
18 626 8201 Trip device
18 626 8202 Trip device
18 626 8209 Overload safety device
