Каталог запасных частей к технике: Lemken EurOpal 5HX. EurOpal 5 HX

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
1
1
2
2
2
3
4
4
5
5
6
6
6
6
6
6
6
6
7
7
7
7
8
8
9
9
9
9
10
10
11
11
11
11
11
11
11
11
11
11
11
11
11
11
12
12
12
12
13
13
13
13
14
15
15
15
16
16
16
16
16
16
16
16

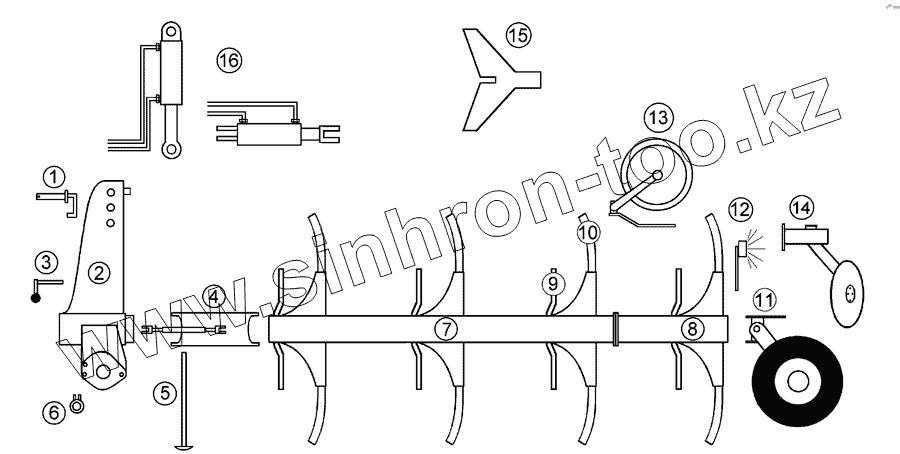

Позиция на иллюстрации Заводской номер детали Название детали
1 313 7921 Top link pin with chain
1 313 7911 Top link pin with chain
2 321 9108 Tool set
2 633 7500 Turnover mechanism
2 633 7501 Turnover mechanism
3 633 7428 Locking device
4 634 3141 Adjustment centre
4 634 3142 Adjustment centre
5 629 2468 Stand
5 629 2489 Shear bolt clutch
6 661 1385 Lower link connection
6 661 1406 Lower link connection
6 661 1405 Lower link connection
6 661 1402 Lower link connection
6 661 1401 Lower link connection
6 661 1388 Lower link connection
6 661 1387 Lower link connection
6 661 1386 Lower link connection
7 602 8503 Basic frame
7 602 8506 Basic frame
7 602 8504 Basic frame
7 602 8505 Basic frame
8 602 8500 Frame extension
8 602 8501 Frame extension
9 663 8750 Skim stalk
9 663 8752 Skim stalk
9 663 8781 Skim stalk
9 663 8783 Skim stalk
10 699 5000 Bodies Dural
10 699 6000 Bolts for leg
11 649 1339 Uni-wheel
11 649 1338 Uni-wheel
11 549 1338 Uni-wheel
11 648 4156 Depth wheel
11 648 4155 Depth wheel
11 550 8863 Wheel 6/161/205 D18
11 549 8894 Bearing
11 549 8859 Wheel 5/94/140 D14
11 549 8858 Wheel 5/94/140 D14
11 549 8849 Wheel 5/94/140 D14
11 549 1339 Uni-wheel
11 549 1220 Scraper
11 548 4155 Depth wheel
11 549 8893 Bearing
12 373 4150 Extension cable
12 670 1151 Carrier for light
12 670 1200 Carrier for light
12 670 2012 Lighting equipment with boards
13 657 7848 Disc coulter
13 657 7849 Disc coulter
13 657 7840 Disc coulter
13 657 7839 Disc coulter
14 642 6809 Headland attachment disc
15 622 2660 Attachment arm
15 622 2661 Attachment arm
15 622 2662 Bracket
16 675 1340 HY-assembly attachment arm
16 675 1346 HY-assembly attachment arm
16 675 3276 HY-frame swing-in device
16 675 3550 HY-front furrow adjustment
16 675 3634 HY-turnover device
16 675 3639 HY-turnover device
16 675 3655 HY-turnover device
16 675 3656 HY-turnover device
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
