Каталог запасных частей к технике: Lemken Azurit 9. 67510805 HY-assembly track marker

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано AGCO Amity CASE IH DongFeng Fortschritt Foton Franz Kleine Gaspardo Great Plains KRONE KUHN Lemken Lovol MacDon Massey Ferguson New Holland TIGARBO Vaderstad Versatile Wirax Агро Агротехмаш Бобруйскагромаш (ОАО «УКХ «Бобруйскагромаш») БЭМЗ ВгТЗ Воронежсельмаш ВТЗ Гомсельмаш ДКЗ ЗАО "Техника-сервис" ЗиД КЗК Кировец-Ландтехник Клевер Красная Звезда Лидагропроммаш Лидсельмаш ЛТЗ Машстройхолдинг Минитракторы Мордовагромаш МТЗ Навигатор-Новое машиностроение Нефтекамский автозавод ПТЗ Ремком РСМ Сибсельмаш ТеКЗ ТКЗ ХЗТСШ ХТЗ ЮМЗ

Модель Не выбрано Achat 9/400 KA (2004) Achat 9/500 KA (2004) Achat 9/600 KA (2004) Azurit 9 (2018) Dolomit 9 (2010) EuroDiamant 10 (2010) EuroDiamant 10 X (2010) EuroDiamant 8 (2010) EuroGranat 5 (2006) EuroGranat 6 (2006) EuroGranat 7 (2006) EurOpal 5 (2010) EurOpal 5HX (2010) EurOpal 6 (2010) EurOpal 7 (2010) EurOpal 7, EurOpal 7HX (2018) EurOpal 7X (2010) EurOpal 7X, EurOpal 7 HydriX (2018) EurOpal 8 (2010) EurOpal 9 (2010) EuroTitan 10 (2010) EuroTitan 10X (2010) FixPack (2010) Gigant 1000 (2010) Gigant 1000 Smaragd (2010) Gigant 800 (2010) Gigant 800 S (2010) Gigant 800 S Rubin (2006) Gigant 800 Smaragd (2010) Heliodor 9/600KA (2018) Heliodor 9/700KA (2018) Juwel 8M (2018) Karat 9/600 KA (2016) Kristall 9/500KA (2016) Kristall 9/600KA (2016) OptiDisc 25 (2018) Primus 10 (Часть 1) (2017) Primus 10 (Часть 2) (2017) Quarz 7/250 (2010) Quarz 7/250 F (2010) Quarz 7/300 (2010) Quarz 7/300F (2010) Quarz 7/400 (2010) Quarz 7/400F (2010) Quarz 7/400K (2010) Quarz 7/400KA (2010) Quarz 7/500K (2010) Quarz 7/500KA (2010) Quarz 7/600K (2010) Rubin 10/600 KUA (2018) Rubin 10/700 KUA (2018) Rubin 12/400 KUA (A) (2018) Rubin 12/500 KUA (A) (2018) Rubin 12/600 KUA (A) (2018) Rubin 12/700 KUA (2018) Rubin 9/300 U (2004) Rubin 9/400 U (2004) Saphir 7/300 (2010) Saphir 7/400 (2010) Smaragd 7/260 (2010) Smaragd 7/300 (2010) Smaragd 9/300 (2010) Smaragd 9/400 (2010) Smaragd 9/400 (2016) Smaragd 9/400 K (2016) Smaragd 9/400K (2010) Smaragd 9/450K (2010) Smaragd 9/500 K (2016) Smaragd 9/500K (2004) Smaragd 9/600 K (2016) Smaragd 9/600K (2010) Smaragd 9/600KA (2010) Solitair 10/600K (2006) Solitair 12/1000K (2007) Solitair 12/1200K (2008) Solitair 12/1200KD (2018) Solitair 12/5800SW (2018) Solitair 12/800K (2006) Solitair 12/900K (2007) Solitair 8/300 (2004) Solitair 8/300 (2014) Solitair 8/400 (2004) Solitair 9/300 (2004) Solitair 9/400 (2004) Solitair 9/400K (2004) Solitair 9/400KA (2004) Solitair 9/450K (2004) Solitair 9/450KA (2004) Solitair 9/500K (2004) Solitair 9/500KA (2009) Solitair 9/600K (2004) Solitair 9/600KA (2004) System-Kompaktor Gigant 1000 (2010) System-Kompaktor Gigant 800 (2010) System-Kompaktor K450 (2010) System-Kompaktor K450A (2010) System-Kompaktor K500 (2010) System-Kompaktor K500A (2010) System-Kompaktor K600 (2010) System-Kompaktor K600A (2010) System-Kompaktor S300 (2010) System-Kompaktor S400 (2010) System-Korund 300 L (2010) System-Korund 450 L (2010) System-Korund 600 L (2010) System-Korund 750 K (750 L) (2010) System-Korund 900 K (2010) System-Korund 900 L (2010) Thorit 8/300 (2005) Thorit 8/300 Combi-Liner (2004) Thorit 8/400 (2010) Thorit 8/400 Combi-Liner (2004) Thorit 9/400 K (2004) Thorit 9/400 KA (2003) Thorit 9/450 K (2004) Thorit 9/500 K (2004) Thorit 9/500 KA (2003) Thorit 9/600 K (2004) Thorit 9/600 KA (2003) Topas 140-A (2010) Vari-Diamant 10 (2004) Vari-Diamant 10X (2004) Vari-Opal 100 (2014) Vari-Opal 100HX (2014) Vari-Opal 100X (2014) Vari-Opal 160 (2014) Vari-Opal X160 (2014) Vari-Titan 10 (2010) Vari-Turmalin 10 (2005) Vari-Turmalin 10X (2005) Variopack 110DP70 (2010) Variopack 110DP90 (2010) Variopack 110EP90 (2010) Variopack 110FEPK700 (2010) Variopack 80DP70 (2010) Variopack S 110DP70 (2010) VariOpal 5 (2010) VariOpal 7 (2010) VariOpal 7X (2010) VariOpal 8 (2010) VariOpal 8X (2010) VariOpal 9 (2010) VariOpal 9X (2010) Zirkon 10/300 (2010) Zirkon 10/400 (2010) Zirkon 10/400K (2010) Zirkon 10/450 (2010) Zirkon 10/450K (2010) Zirkon 10/450KA (2010) Zirkon 10/500K (2010) Zirkon 10/500KA (2010) Zirkon 10/600KA (2010) Zirkon 7/250 (2010) Zirkon 7/300 (2010) Zirkon 7/400 (2010) Zirkon 9/300 (2010) Zirkon 9/400 (2010) Zirkon 9/600K "B" (2010)

Схема > Не выбрано 30210077 Contents 321 9845 Spanner 59010101 Label set 59010103 Label set 68310011 Center section 68310020 Lateral section 68310021 Lateral section 68310026 Coulter frame 68310027 Coulter frame 68310038 Lateral section 68310039 Lateral section 68310040 Coulter frame 68310041 Coulter frame 68310046 Coulter frame 68310047 Coulter frame 68310051 Cover 68310058 Coulter frame 68310059 Coulter frame 68310062 Basic frame 68310082 Coulter frame 68310083 Coulter frame 68310084 Coulter frame 68310085 Coulter frame 68310094 Holder 68310095 Holder 68310115 Cover 68310042 Cover 68310093 Cover 58310022 Cover box 58310023 Cover box 68310032 Pre-dosage lower part 68310033 Pre-dosage 68310034 Pre-dosage 68310035 Pre-dosage 68310044 Pre-dosage 68310045 Pre-dosage 68310050 Hopper 68310053 Emptying unit for hopper 68310028 Step 68310065 Step 68310066 Step 58210111 Fan 58310010 Fan 68310031 Fan 68310049 Air filter 54710005 Catching roller 54710008 Depth guiding roller 54710009 Roller 54710011 Catching roller 58310030 Depth guiding roller 68310003 Trapeze packer roller 68310004 Catching roller unit 68310009 Depth guiding 68310014 Disc carrier 68310015 Disc carrier 68310067 Levelling roller 68310068 Double disc coulter 68310069 Roughing star 68310092 Scraper 68310114 Thinning out device 68310123 Depth guiding 69910420 Coulter 557 4995 Wheel mark eradicator 657 4990 Wheel mark eradicator w.holder 657 4998 Wheel mark eradicator w.holder 58210083 Link 58210084 Bracket 58310005 Parallelogram 58310006 Parallelogram 58310015 Parallelogram 68310002 Parallelogram 31310070 Top link pin 31310158 Top link pin 661 1367 Lower link connection 661 1368 Lower link connection 66110011 Lower link connection 68310029 Lower link connection 68310043 Lower link connection 557 2520 Holder for track scraper 30210077 Turnbuckle 68310101 Seed disc 68310102 Seed disc 68310106 Seed disc 68310107 Seed disc 68310052 Hose guiding 68310054 Distributor 68310055 Distributor 68310056 Distributor 68310057 Distributor 68310064 Distributor 68310078 Hose guiding 68310079 Hose guiding 68310086 Distributor 68310087 Distributor 68310090 Hose guiding 68310118 Distributor 68310119 Distributor 68310120 Distributor 68310121 Distributor 68310122 Distributor 575 2533 Hydraulic ram 575 2553 Hydraulic ram 575 2576 Hydraulic ram 57510820 Hydraulic motor 57510984 Hydraulic ram 57510988 Hydraulic ram 57510991 Valve combination 67510802 HY-assembly track marker 67510803 HY-assembly basic equipment 67510804 Hydraulic assembly fan 67510805 HY-assembly track marker 67510807 HY-assembly curr.regulat.valve 67510808 Hydraulic assembly 67510809 HY assembly seeding bar 67510811 HY-assembly seeding bar 67510812 HY-assembly seeding bar 67510813 HY-assembly track marker 67510856 HY-assembly seeding bar 67510857 HY-assembly seeding bar 67510989 HY-assembly seeding bar 321 9914 Reflector, red 321 9915 Reflector, red 373 4260 Cable 37310126 Rear light 37310127 Rear light 37310157 Basic cable 37310196 Basic cable 570 1762 Lighting unit 570 1763 Lighting unit 57010014 Warning board 57010015 Warning board 57010082 Lighting unit 57010083 Lighting unit 57010102 Lighting unit 57010103 Lighting unit 57010132 Lighting unit 57010133 Lighting unit 67010137 Cable 67010138 Cable 67010202 Lighting equipment 67010204 Lighting equipment 67010206 Lighting equipment 67310205 Work lighting 57010086 Protective tilt 57010087 Protective tilt 57010088 Protective tilt 57010089 Protective tilt 57010090 Protective tilt 57010091 Protective tilt 57010092 Protective tilt 57010093 Protective tilt 57010094 Protective tilt 57010095 Protective tilt 67010207 Set of warning boards 67310319 Electronic installation 573 6172 Connection cable 57310195 Connection cable 57310196 Connection cable 57310197 Connection cable 57310198 Connection cable 57310199 Connection cable 67310314 Electronic installation 67310315 Electronic installation 67310316 Electronic installation 67310317 Electronic installation 57310241 Dongle 57310278 Holder 57310586 Dongle 673 4981 Holder 673 4982 Holder 57310507 Dummy plug 57310549 Operation terminal 673 6207 Joystickbox 673 6210 Operation terminal 673 6218 Camera monitoring 67310197 Holder wheel sensor 67310198 Operation terminal 67310290 Operation terminal 67310291 Cable 67310292 Supplementary set 67310294 Holder 68310061 Angle sensor Lifting 699 6714 Operation terminal 699 6721 Speed sensor R19 0156 Multifunctional handle 67310063 GSM-Box 67310064 D-GPS receiver 67310065 f.Fahrtrichtung 67310066 Switch box 67310067 Camera monitoring 67310068 Supplementary set 67310071 CCI.Courier 67310073 CCI.Control 67310088 Cable form 67310089 Cable form 67310099 Parallel driving system 67310100 Section Control 67310194 D-GPS receiver 547 8883 Bearing 58310017 Track marker 58310018 Track marker 58310019 Track marker 58310020 Track marker 68310070 Track marker 68310071 Track marker 68310072 Track marker disc 68310073 Track marker disc 68310074 Track marker disc 68310075 Track marker disc 68310076 Track marker 68310077 Track marker 68310116 Accessories 57511362 Repair kit

1

2

3

3

3

4

4

4

5

6

7

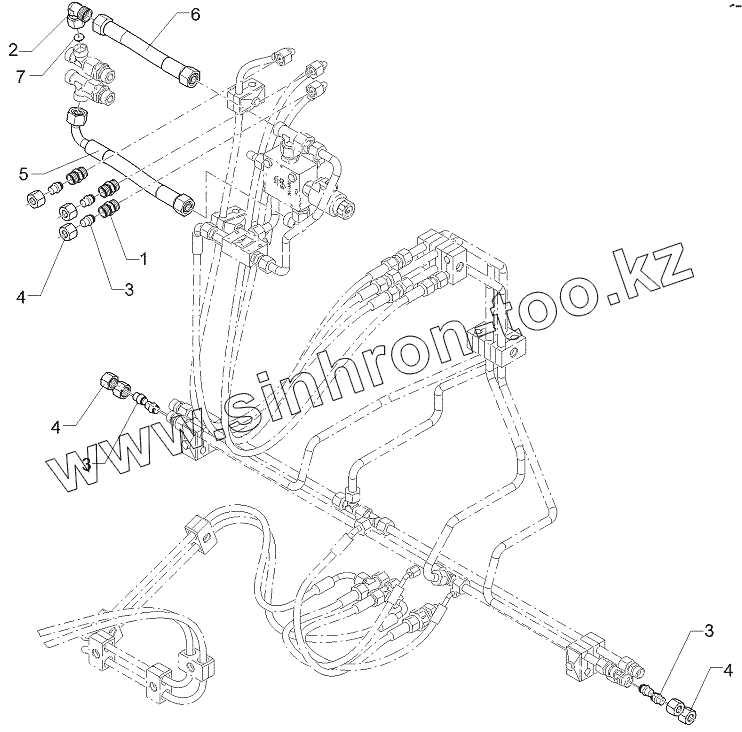

Позиция на иллюстрации	Заводской номер детали		Название детали
1	375 4110		Nipple
2	375 4503		Adjustable angle union
3	375 4660		Blind plug
4	375 5310		Union nut
5	47511858		Hydraulic hose
6	47511352		Hydraulic hose
7	37510340		Restrictor washer

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
