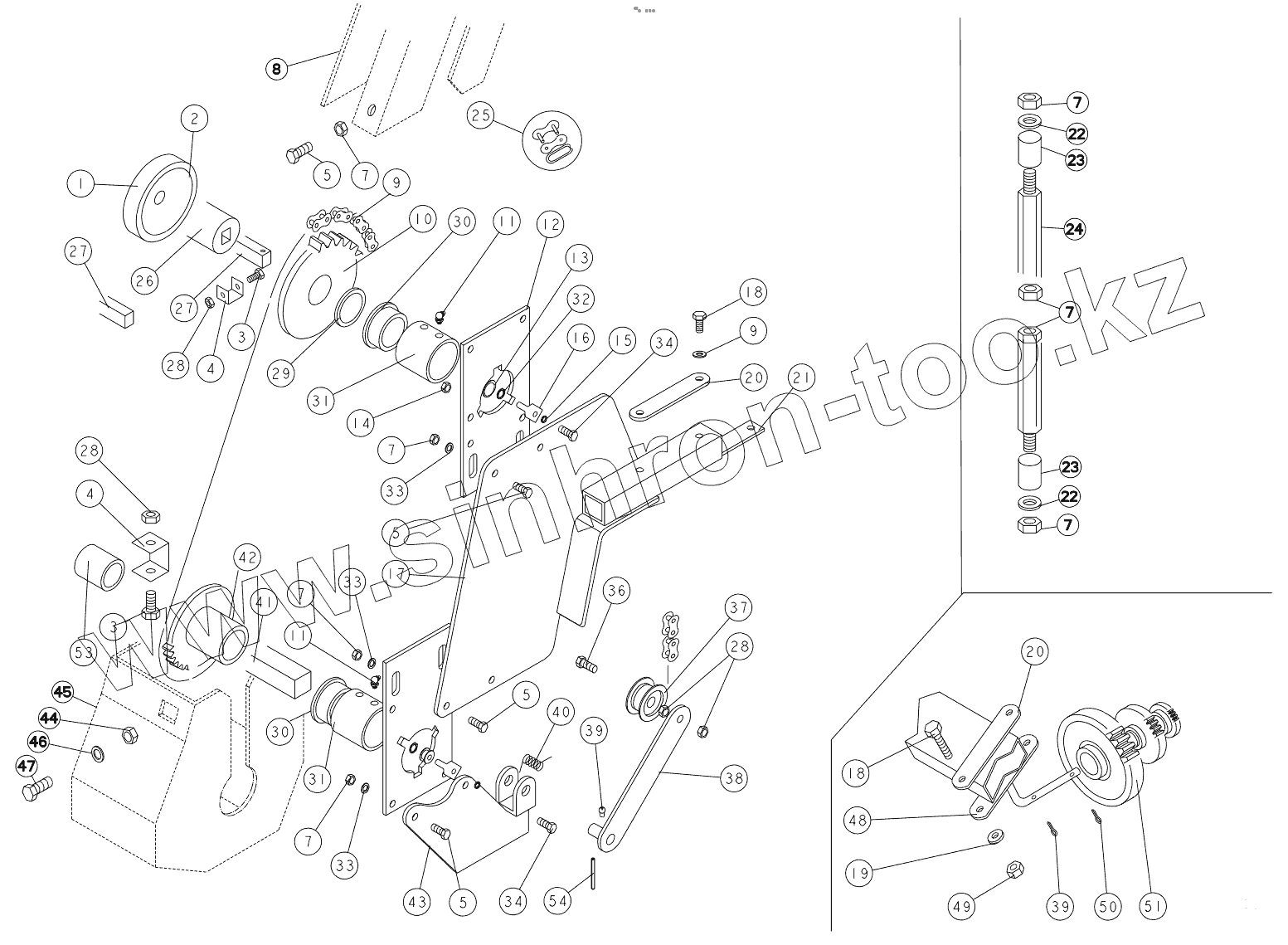

Каталог запасных частей к технике: KUHN PLANTER II. FERTILIZER FRONT TRANSMISSION
1
2
3
3
4
4
5
5
5
5
7
7
7
7
7
7
7
8
9
9
10
11
11
12
13
14
15
16
17
18
18
19
20
20
21
22
22
23
23
24
25
26
27
27
28
28
28
29
30
30
31
31
32
33
33
33
34
34
36
37
38
39
39
40
41
41
42
43
44
45
46
47
48
49
50
51
51
51
51
51
51
51
53
54
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | BLA0159 | STICKER | |
| 2 | VLA1926 | DISC | |
| 3 | 80060830 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 4 | FLA2068 | "U" BRACKET | |
| 5 | 80061026 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 7 | 80201051 | UNDERSERRATED SELF-LOCKING NUT | |
| 8 | VNB0812 | HOUSING | |
| 9 | N1000820 | CHAIN | |
| 10 | VNB0696 | PINION GEAR | |
| 11 | 82200802 | LUBRICATING NIPPLE:CONE TYPE | |
| 12 | FNB1208 | REINFORCING SHIELD | |
| 13 | 80252543 | PLAIN WASHER FE/ZNXC3 | |
| 14 | 80200600 | NUT FE/ZNXC3 | |
| 15 | 80270602 | SERRATED LOCK WASHER FE/ZNXC3 | |
| 16 | FNB1333 | STOP | |
| 17 | VNB0694 | BRACKET | |
| 18 | 80061270 | HEXAGON HEAD SCREW INOX A2 | |
| 19 | 80271201 | SERRATED LOCK WASHER FLZNNC | |
| 20 | FNB1205 | BRIDGE | |
| 21 | FNB1239 | BRIDGE | |
| 22 | 80251141 | PLAIN WASHER INOX A2 | |
| 23 | FNB1338 | SPACER | |
| 24 | FNB1337 | ROD | |
| 25 | 83121221 | OUTER LINK | |
| 26 | VNB0703 | TUBE | |
| 27 | FLA2811 | COULTER BAR | |
| 28 | 80200870 | NUT FE/ZNXC3 | |
| 29 | FLA0716D | WASHER | |
| 30 | 83012533 | SELF LUBRICATING BEARING | |
| 31 | FNB1209 | BEARING RING | |
| 32 | 80582500 | RETAINING RING | |
| 33 | 80251021 | PLAIN WASHER M10 | |
| 34 | 80060616 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 36 | 80060850 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 37 | BLA0158A | CAM ROLLER | |
| 38 | VLA1733 | TENSIONER | |
| 39 | 80450645 | ROLL PIN FLZNNC | |
| 40 | FNB0235 | SPRING | |
| 41 | FNB4160 | BAR | |
| 41 | FLA0795B | COULTER BAR | |
| 42 | VNB0695 | PINION GEAR | |
| 43 | VNB0697 | BRACKET | |
| 44 | 80200852 | CLAMP NUT | |
| 45 | FNB1335 | HOUSING | |
| 46 | 80060864 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 47 | 80060816 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 48 | VNB0733 | PIN | |
| 49 | 80201270 | NUT FE/ZNXC3 | |
| 50 | 80560748 | LINCH PIN | |
| 51 | MEX0066E | PINION GEAR | |
| 51 | MEX0068E | PINION GEAR | |
| 51 | MEX0069E | PINION GEAR | |
| 51 | MEX0070E | PINION GEAR | |
| 51 | MEX0071E | PINION GEAR | |
| 51 | MEX0073E | PINION GEAR | |
| 51 | MEX0074D | PINION GEAR | |
| 53 | FLA2147 | SPACER | |
| 54 | 80450666 | ROLL PIN FLZNNC |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
