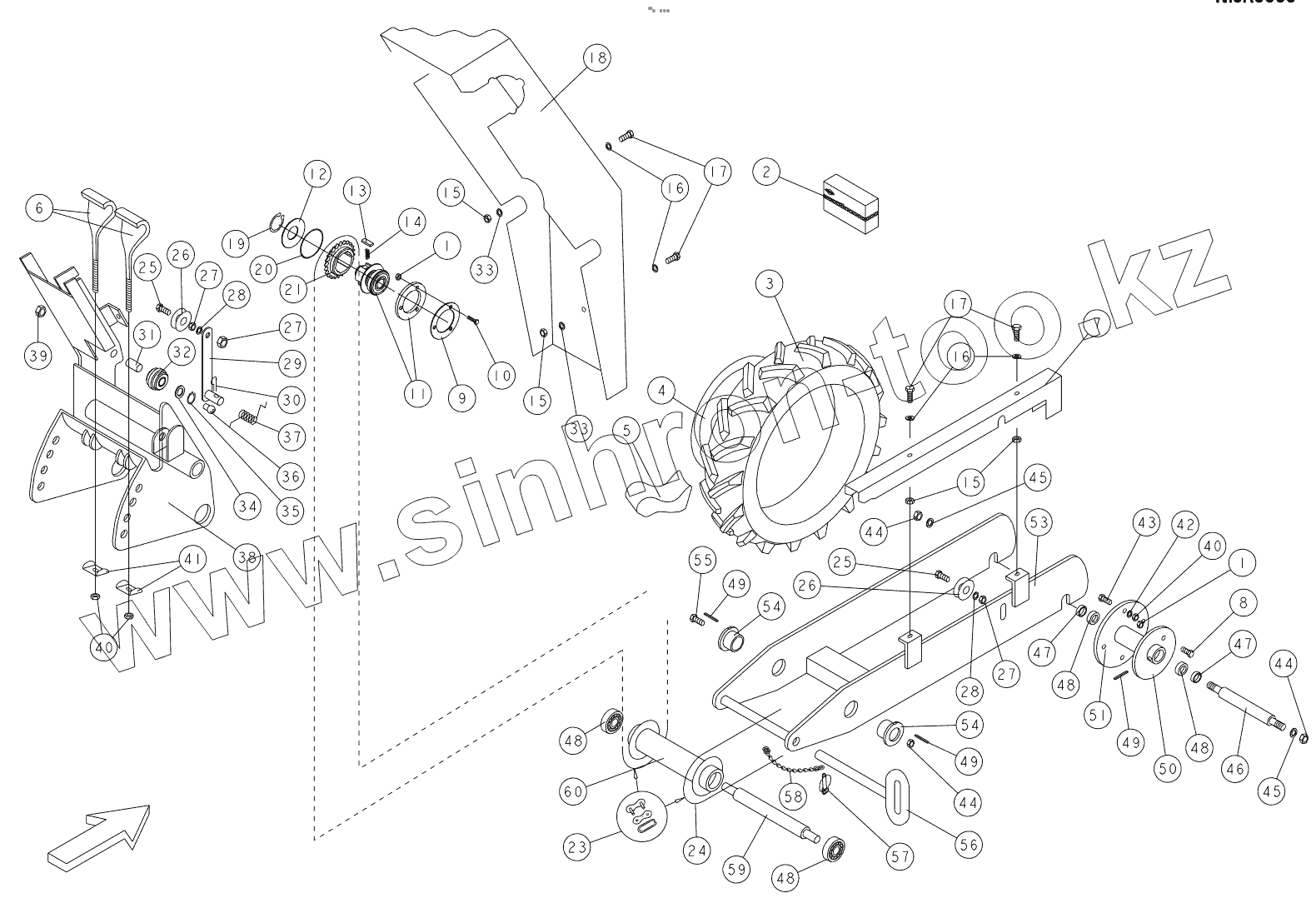

Каталог запасных частей к технике: KUHN PLANTER II. "BILLON" WHEEL
1
1
2
3
3
3
4
5
6
7
8
9
10
11
12
13
14
15
15
15
16
16
17
17
18
19
20
21
23
24
25
25
26
26
27
27
27
28
28
29
30
31
32
33
33
34
35
36
37
38
39
40
40
41
42
43
44
44
44
45
45
46
47
47
48
48
48
48
49
49
49
50
51
53
54
54
55
56
57
58
59
60
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1 | 80200840 | SELF-LOCKING NUT FE/ZNXC3 | |
| 2 | VLA2100 | WHEEL AND TIRE ASSEMBLY | |
| 3 | B0000340 | TYRE | |
| 3 | 83300124 | INNER TUBE | |
| 3 | A620216 | TYRE 500-15 + INNER TUBE | |
| 4 | N01875A0 | WHEEL | |
| 5 | A620221 | INNER TUBE | |
| 6 | FNB0429A | CLAMP | |
| 7 | FLR0757 | HOUSING | |
| 8 | 80060846 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 9 | N01159A0 | HUB | |
| 10 | 80060830 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 11 | N03163A0 | MOYEU ROUE LIBRE ET RONDELLE | |
| 12 | 80253585 | PLAIN WASHER FE/ZNXC3 | |
| 13 | FNB0614 | PAWL | |
| 14 | FNB0615 | SPRING | |
| 15 | A410182 | NUT | |
| 16 | 80250717 | PLAIN WASHER ZBC | |
| 17 | 80060620 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 18 | VNB0758A | HOUSING | |
| 19 | 80583600 | RETAINING RING | |
| 20 | 82067225 | O-RING | |
| 21 | N01159A0 | HUB | |
| 23 | 83122103 | QUICK CONNECT LINK | |
| 24 | N1000570 | CHAIN | |
| 25 | 80060840 | HEX BOLT FE/ZNXC3 | |
| 26 | BLA0158A | CAM ROLLER | |
| 27 | 80200870 | NUT FE/ZNXC3 | |
| 28 | 80250920 | PLAIN WASHER FE/ZNXC3 | |
| 29 | VLA1733 | TENSIONER | |
| 30 | 80500433 | SPLIT PIN INOX A2 | |
| 31 | FNB1273 | PIN | |
| 32 | N02472A0 | TRACK IDLER | |
| 33 | 80270602 | SERRATED LOCK WASHER FE/ZNXC3 | |
| 34 | 80251220 | PLAIN WASHER FE/ZNXC3 | |
| 35 | 80581200 | RETAINING RING | |
| 36 | 82200600 | GREASE NIPPLE FE/ZNXC3 | |
| 37 | FNB0235 | SPRING | |
| 38 | VNB0759A | CLAMP, MOUNT | |
| 39 | 80201270 | NUT FE/ZNXC3 | |
| 40 | 80201470 | NUT FE/ZNXC3 | |
| 41 | FLA0954C | WASHER | |
| 42 | 80271401 | SERRATED LOCK WASHER FLZNNC | |
| 43 | 80061472 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 44 | 80201631 | SELF-LOCKING NUT INOX | |
| 45 | 80251632 | PLAIN WASHER FE/ZNXC3 | |
| 46 | FLR0707 | SHAFT | |
| 47 | FNB1128 | WASHER | |
| 48 | 81002050 | BALL BEARING | |
| 49 | 80450620 | ROLL PIN FLZNNC | |
| 50 | N01157A0 | GEAR, PINION | |
| 51 | N02466A0 | HUB | |
| 53 | VLR0320 | ARM, WHEEL | |
| 54 | FLR0753 | BACK | |
| 55 | 80061694 | HEXAGON HEAD SCREW FE/ZNXC3 | |
| 56 | VLR0319 | PIN, HITCH | |
| 57 | 80560748 | LINCH PIN | |
| 58 | 83070064 | PVC CORD | |
| 59 | FLR0756 | SPACER | |
| 60 | N02468A0 | HUB |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
